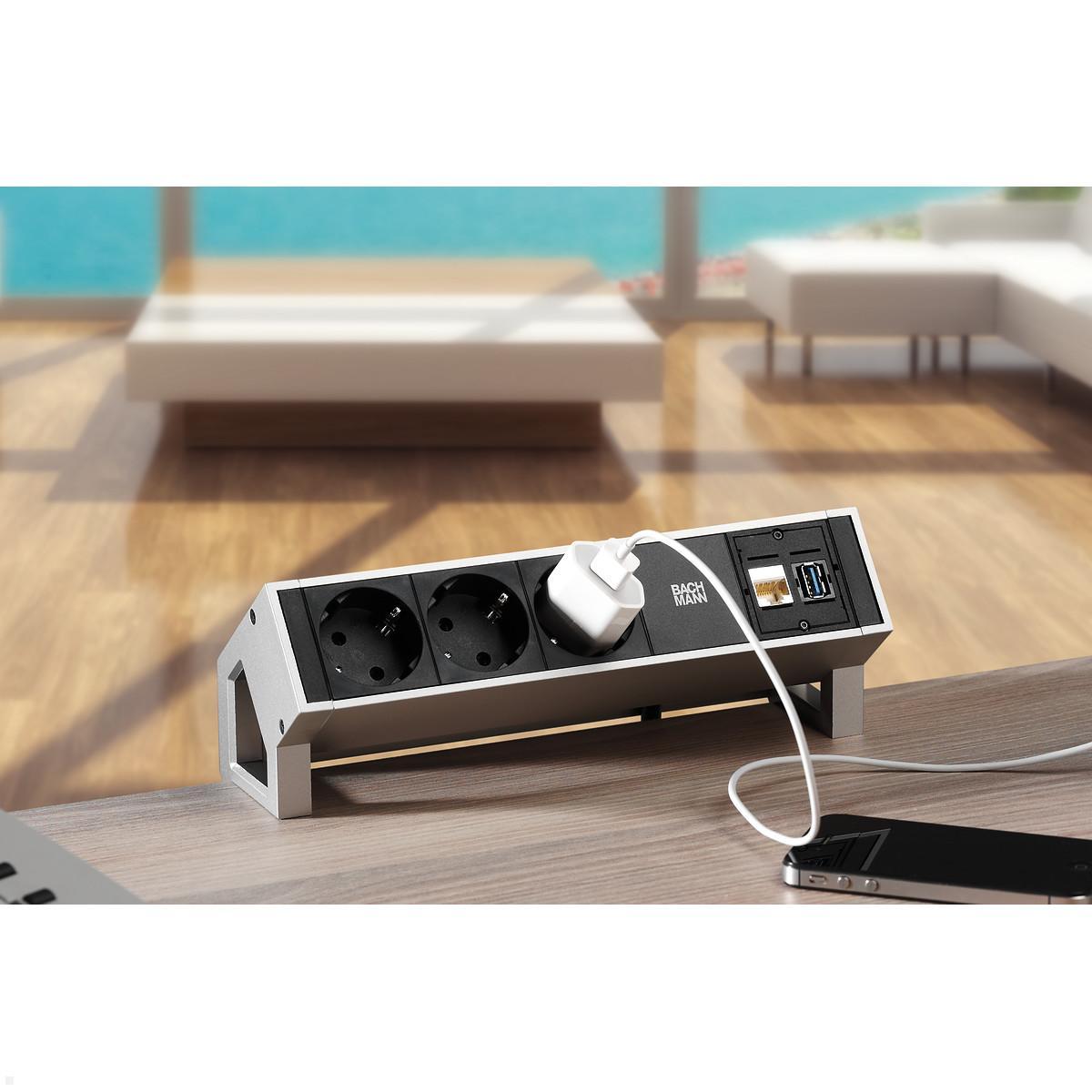

Bachmann DESK 2 3x socket pure white (937.406)
The Bachmann table socket with 3 protective contact sockets from the Pure White series is made of aluminum with plastic end caps. It is supplied with a bracket.
Table power strip with 3 sockets Pure White

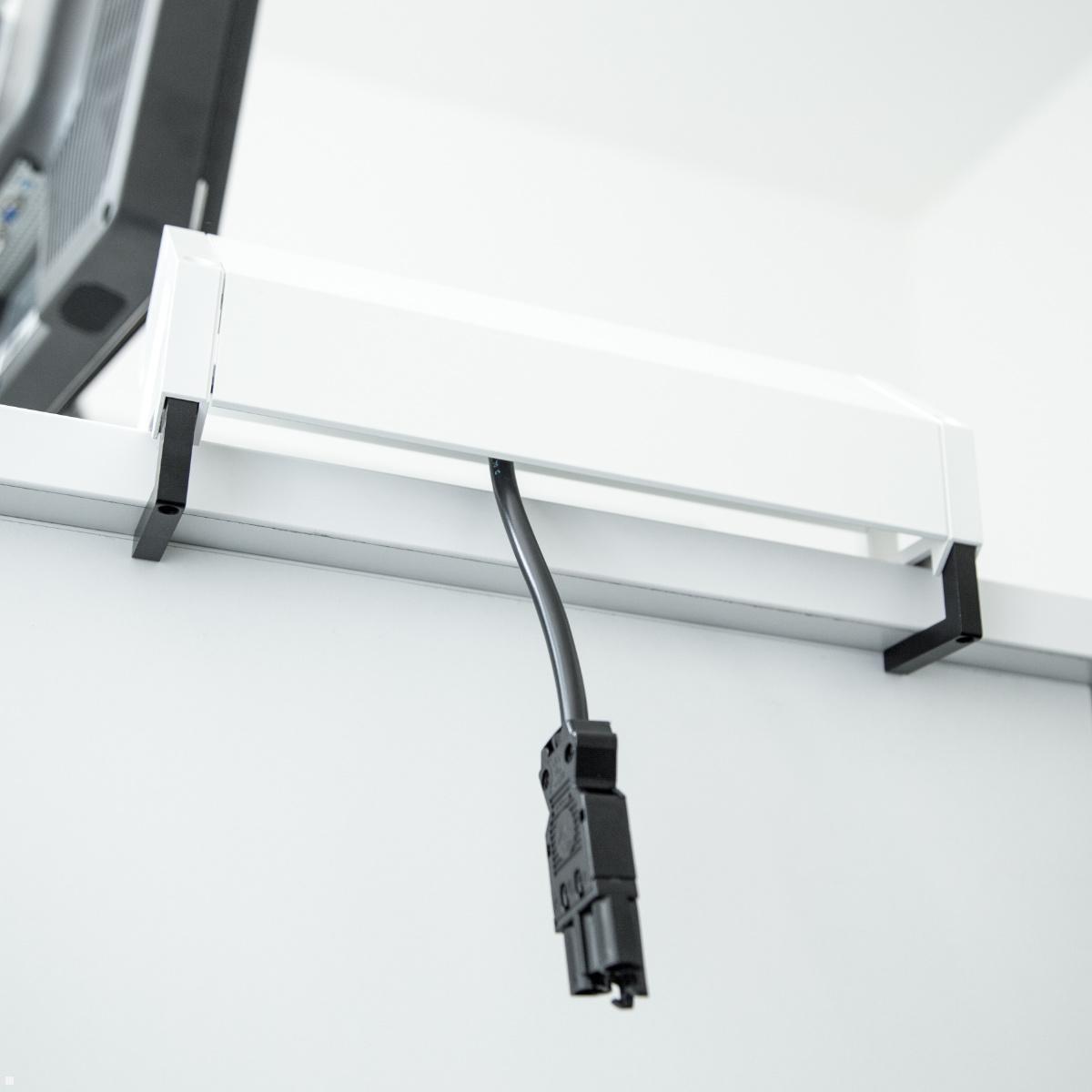

The Bachmann DESK 2 is a well-known design icon, but this time in pure white. The table power strip with 3 sockets belongs to the Pure White series and, in contrast to the 902.2048, also offers the surface with the protective contact sockets in white. This clean, trendy design fits into both the office environment and stylish kitchens. The Bachmann DESK 2 is attached to the table top with aluminum brackets to save space and the cables are routed behind the screen. Bachmann DESK2 is the winner of the red dot design award 2011, the IF Product Design Award 2012 and has been nominated for the German Design Award 2012. The design is simple and clear, the materials used are high quality and durable.
Bachmann DESK 2 is a socket strip that can be equipped with various communication modules. It was designed for flexible use in the office, in meeting rooms, in the home office or for desk sharing. The socket strip is made of aluminium, has plastic end caps and is available in different colours. The connections are screwed to the standardized module windows and can easily be converted.Key features DESK 2 (937.406):

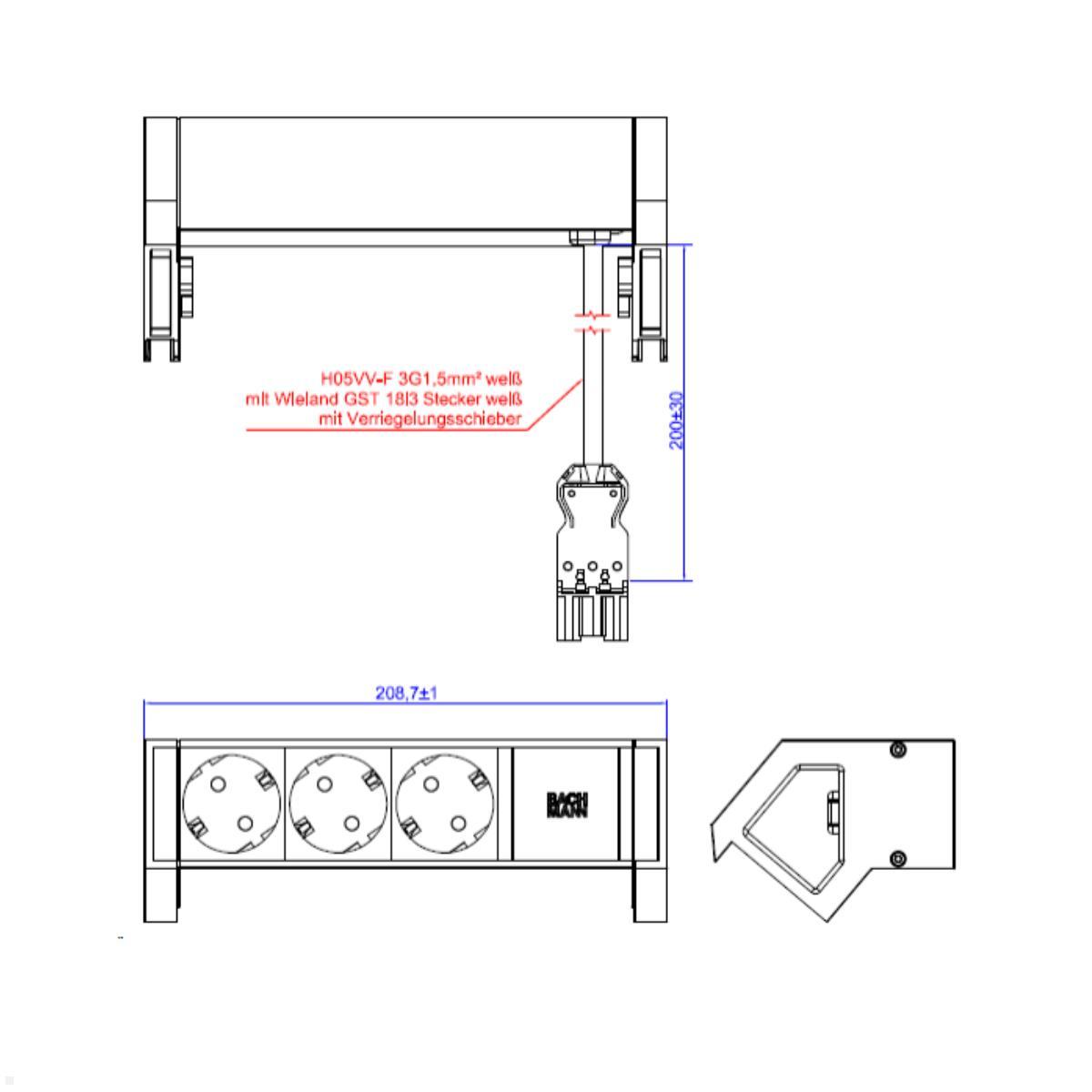

- Dimensions: 197 x 85 x 100 mm
- Painted in RAL 9010 white
- 3 socket outlets with earthing contact and child protection, white, 35° twisted
- Without device cable
- Power input: 0.2m H05VV-F3G1.5mm² with GST18
- Power output can be achieved with distribution block 375.102
- Table top thickness: 10-40 mm
- Including mounting brackets and screws
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 330 x 140 x 140 mm |
| Scope of delivery: | 1x socket, brackets |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | White |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
