Bachmann DESK 2 2x socket 2x USB charger 2x CAT6a (902.358), white
The white power strip Bachmann 902.358 DESK 2 is equipped with two sockets, two USB-A ports and two CAT6a couplings. The multifunctional multiple socket outlet can be quickly and easily mounted on the edge of a table with a set of mounting brackets.
Socket outlet with USB connection
The Bachmann DESK 2 (902.358) socket outlet with USB connection in white is equipped with 2 earthed sockets, a double USB charger (type A) and two CAT6a couplings. The design tabletop power strip was conceived for flexible use in the home office, office, in conference rooms / meeting rooms or for desk sharing - the perfect solution for the modern living and working environment.
Table connection panel with CAT6a coupling

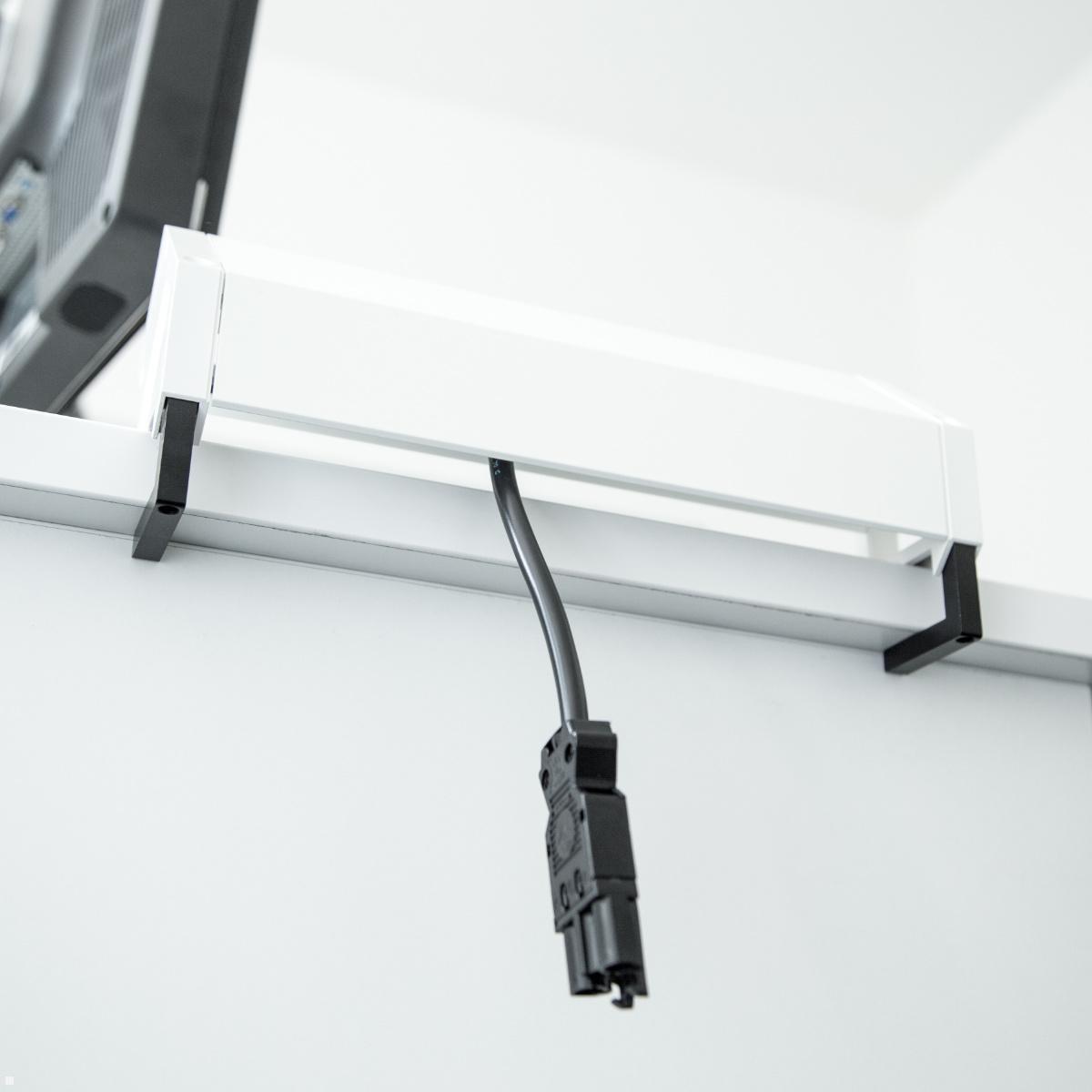

The Bachmann table connection panel (902.358) has a concealed cable routing up to the top edge of the table and is attached to the tabletop with aluminium mounting brackets to save space. Bachmann DESK 2 is a winner of the red dot design award 2011, the IF Product Design Award 2012 and was nominated for the German Design Award 2012. The high-quality power strip is made of aluminium and is available on request in over 200 different RAL colours. If several DESK 2 desk connection panels are to be installed next to each other and looped through via a GST18 connection, a distribution block (e.g. 375.102, 375.105, etc.) facilitates the connections and distribution of the cables. Please note a max. load of 16A!
Key features Bachmann DESK 2 USB power strip 902. 358
- Size (WxHxD): 239.8 x 85 x 100 mm
- Colour: White similar RAL9010
- 2x protective contact sockets with child protection - 35° alignment
- 1x USB-A double charger (3.1A / 5VDC)
- 2x CAT6a coupling shielded
- Side 1: RJ45 coupler (keystone)
- Side 2: RJ45 coupler
- Cable: 0.2m H05VV-F3G 1.5mm² with Wieland GST18/3 plug
- Cable 2.0m H05VV-F 3G1.5mm² with earthing contact right-angle plug and GST18i3 socket enclosed
- Includes mounting bracket for fixing to tabletop
- Tabletop thickness: 10-40 mm
- Material of profile: aluminium
- Material of socket: plastic
| Product sheet: |  [pdf] |
|---|---|

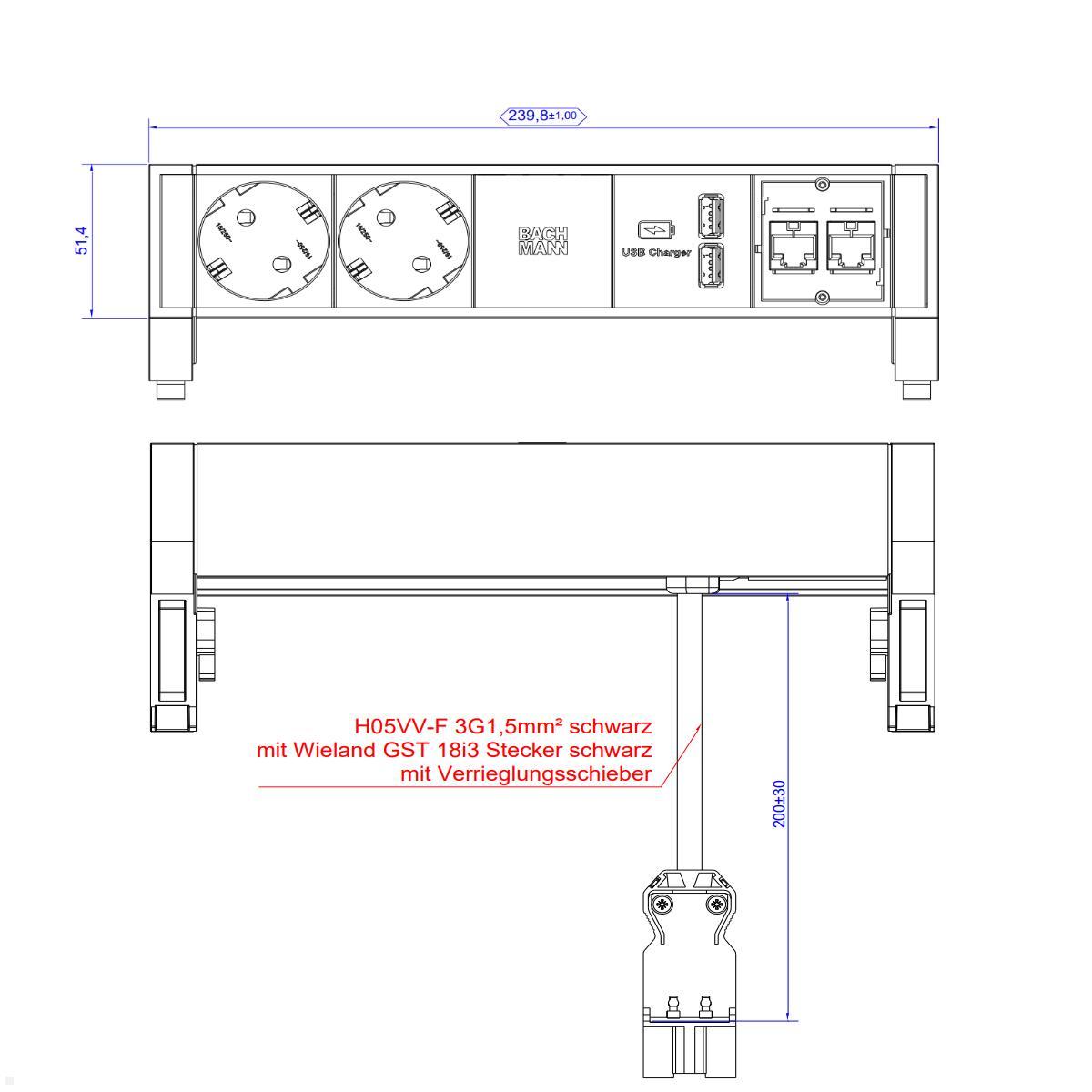

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 325 x 140 x 150 |
| Scope of delivery: | 1x socket strip | 1x bracket set | 2.0m cable with protective contact angled plug and GST18i3 socket |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | White |
| USB-Charger: | USB A/A |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
