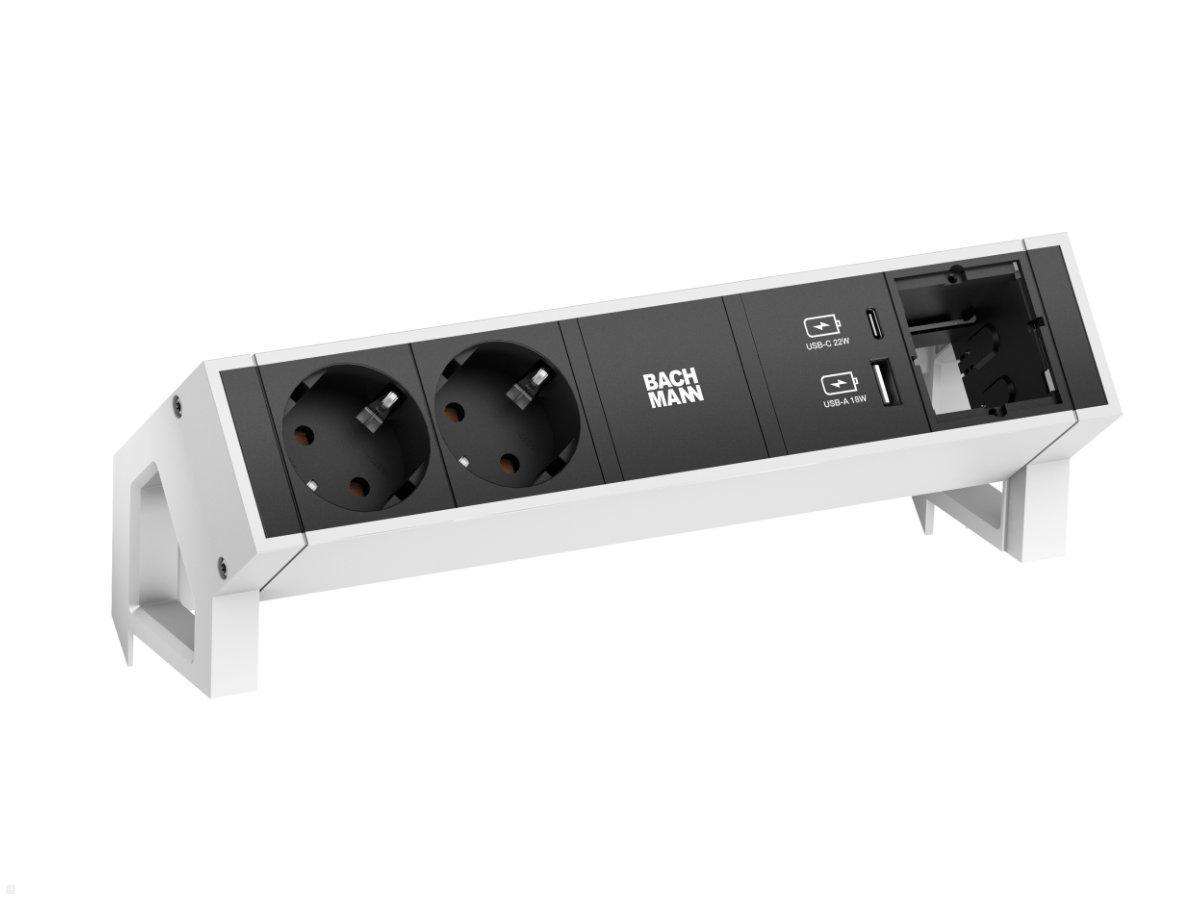

Bachmann DESK 2, 2x socket, 1 USB-C /-A Charger 1 CM (902.935) white
The Bachmann DESK 2 desk connection panel in white contains 2 sockets, a USB-C Charger 22W, a USB-A Charger 18W and a custom module and can be easily attached to the desk using the supplied mounting brackets (or optionally with an adhesive base).
Desktop connection panel with 2x socket, USB charger and CM
The DESK 2 desk socket strip in white is quickly and easily mounted without damage to the edge of the desk using the mounting bracket set (an adhesive base is optionally available). The configurable socket strip consists of two protective contact sockets, a USB C 22W Charger, a USB A 18W Charger and a custom module (CM). Custom modules can be easily attached with a screwdriver. In general, you can choose between pre-configured CM and individually configurable keystone frames with matching keystones. The clear and simple design of this Desktop connection panel with 2x socket, USB charger and CM has already earned the DESK 2 the red dot design award and the IF Product Design Award and is manufactured using high-quality, durable materials. If several DESK 2 desk connection panels are to be mounted next to each other, a distribution block (e.g.: 375.102, 375.105, etc) facilitates the connection and distribution of cables.
Key features DESK 2 (902.935)
- Material profile: aluminium, socket plastic
- Painted in white (similar to RAL 9010)
- Available in over 200 RAL colours on request
- 1x custom module (CM)
- 1x USB-C Charger 22W
- 1x USB-A Charger 18W
- 2x black socket outlets with earthing contact, rotated 35°

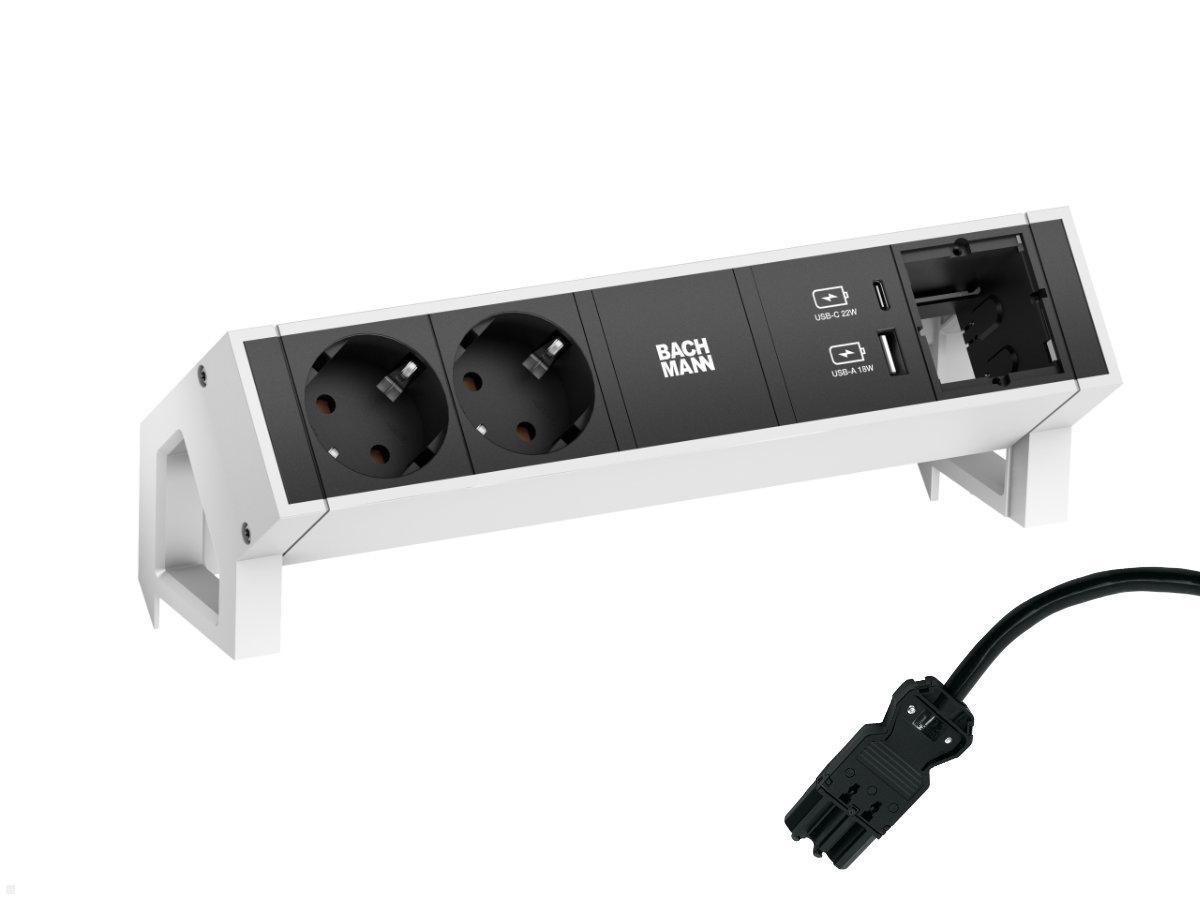

- Supply cable: 0.2m H05VV-F3G 1.5mm² black with GST18i3 plug

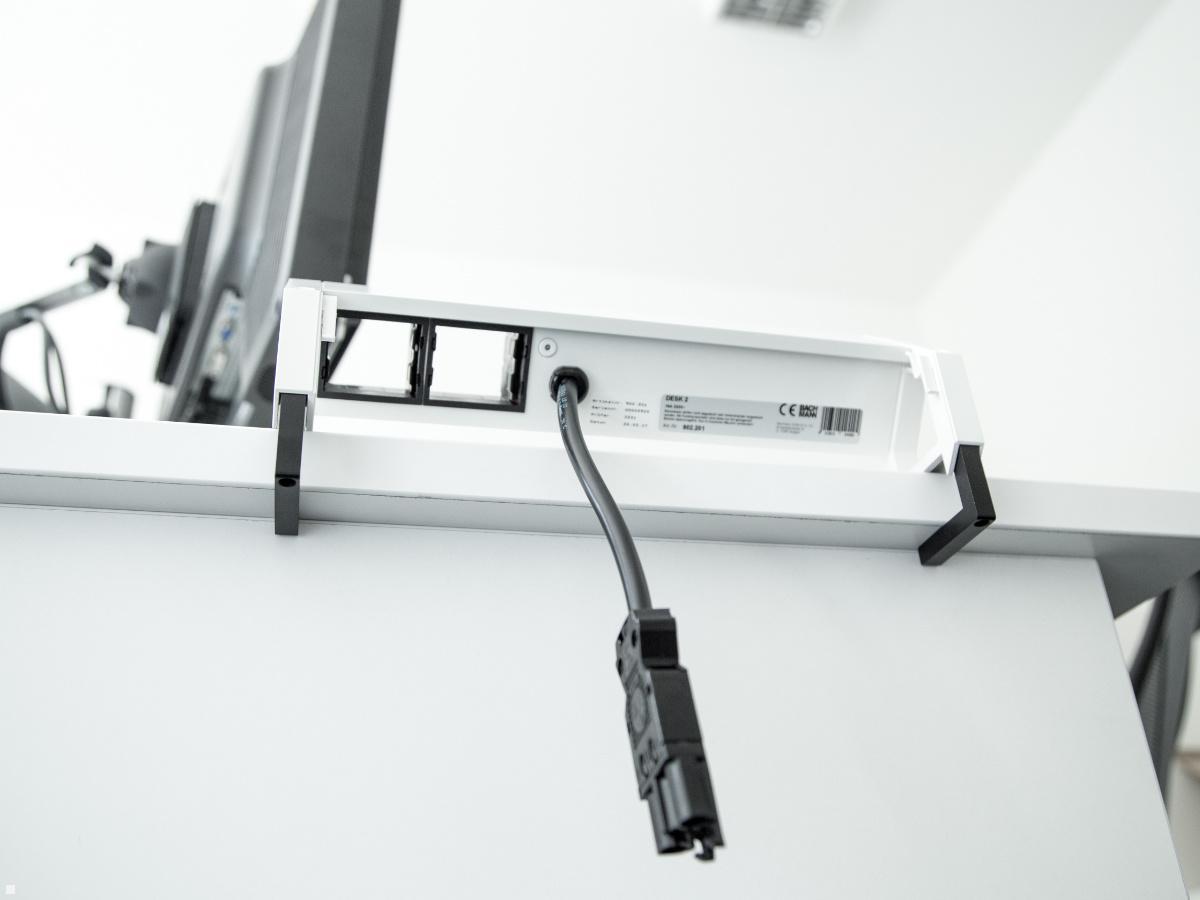

- Incl. mounting bracket set
- Construction: table top thickness 10 - 40 mm

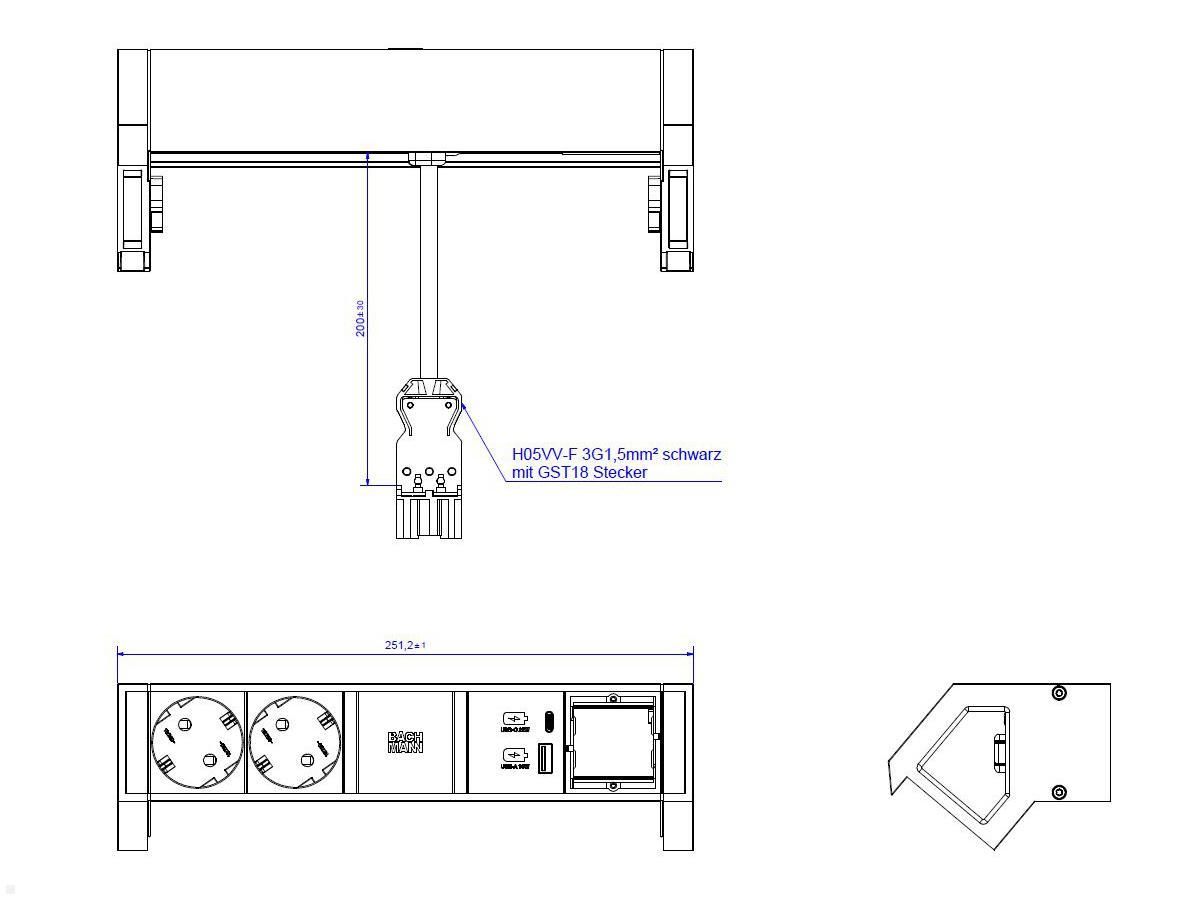

- Dimensions (LxWxH): approx. 251 x 74 x 93 mm
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | white/black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
