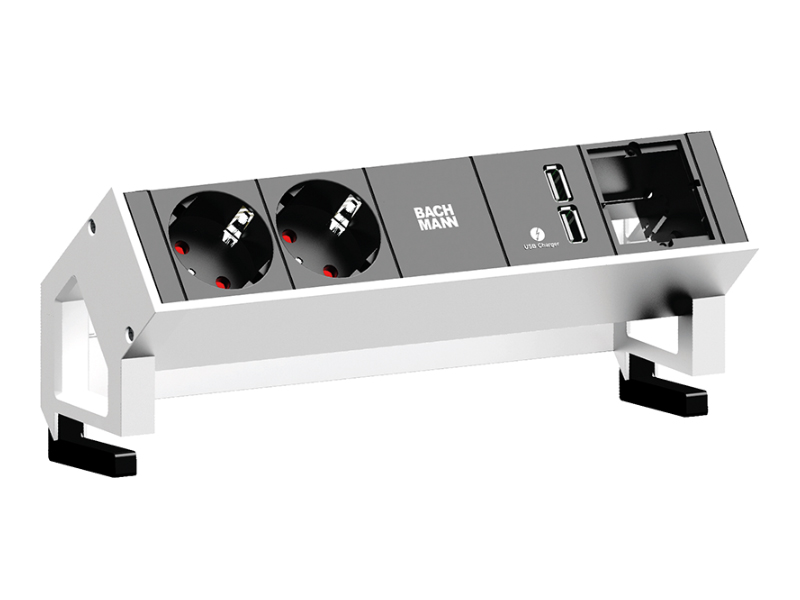

Bachmann DESK 2 2x Power socket outlets 1x USB charger 1x Custom white (902.228)
The Bachmann DESK 2 2x Power socket outlets 1x USB charger 1x Custom white (902.228) can be mounted on the edge of a desk or table quickly and easily using a mounting bracket.
Bachmann DESK 2 2x Power socket outlets 1x USB charger 1x Custom
Bachmann DESK 2 is a power strip that can be populated with various communication modules. It has been designed for flexible use in the office, meeting rooms, home offices or desk sharing environments. The power strip is made from aluminium and is available in various colours. The connections are screwed onto the standardised module windows and can be easily changed over.

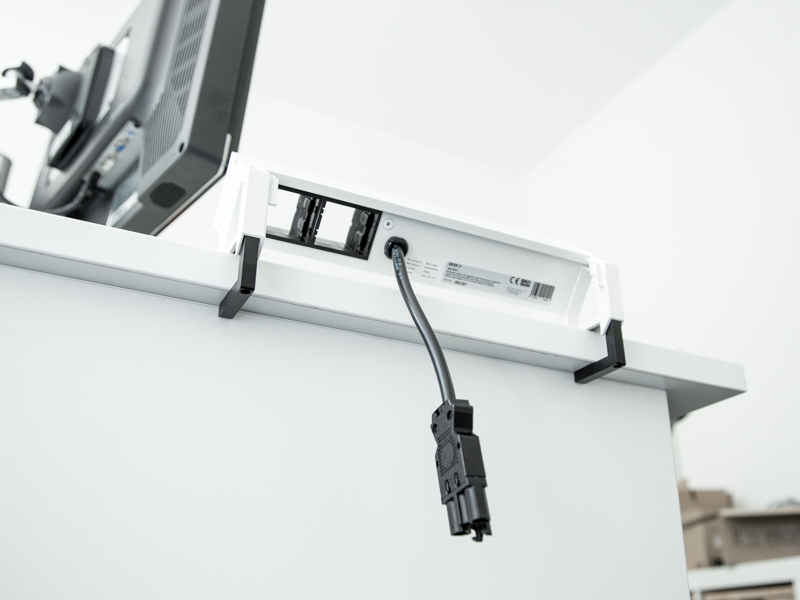

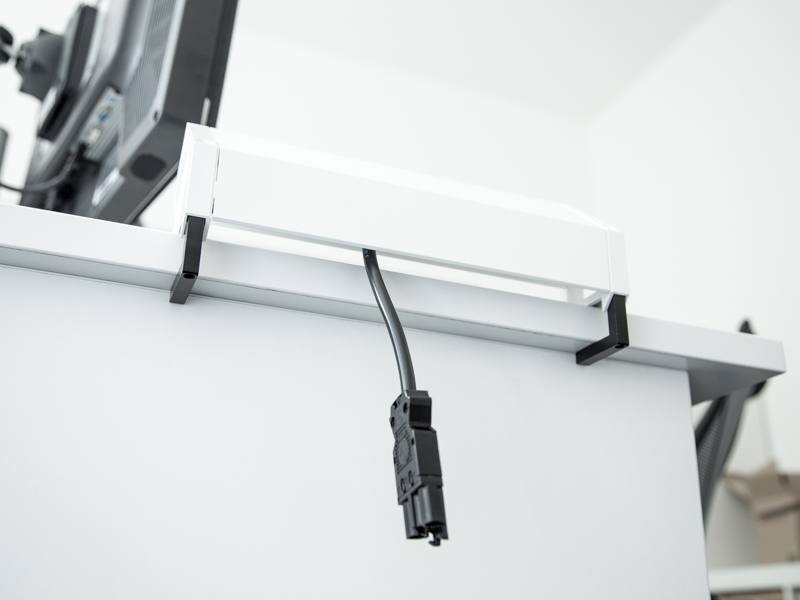

Bachmann DESK2 is secured to the desktop with aluminium retaining brackets, cables are routed behind the screen. Bachmann DESK2 won the red dot design award 2011, the IF Product Design Award2012 and is nominated for the German Design Award 2012. The design is unostentatious and straightforward, the materials used are of high quality and durable.
Key features Bachmann DESK2 (902-228)
- Length 241 mm
- max. 16A / 230V
- aluminium profile
- Colour Painted in RAL 9010 white
- 2x socket outlets with earthing contact, black, set at 35°
- 1x USB double charger (5.2 V /2.15 A) for smartphone, tablets
- 1x custom module
- Power input: 0.2m H05VV-F3G 1.5 mm² with GST18;
- Power outlet: 0.2m H05VV-F3G 1.5 mm² with GST18;
- Incl. mounting bracket and screws
- DESK 2 brackets are suitable for desk or table top thicknesses of 10 mm to 40 mm.
- Alternatively, DESK 1 standard brackets (art. no. 930.120) can also be used for DESK 2. In combination with DESK 2, these cover a range of 25 mm to 55 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | desk or table top thicknesses of 10 mm to 40 mm |
| Accessories: | DESK 1 standard brackets (art. no. 930.120) Bachmann Custom Modul USB Bachmann Custom Modul CAT Bachmann Custom Modul VGA |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | White |
| USB-Charger: | USB A/A |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
