Bachmann DESK 1 3x socket stripe with USB charger A/C (902.1667)

Desk power socket with USB C and USB

The Bachmann DESK 1 (902.1667) table socket outlet with USB C and USB A chargers is a practical charging station that can be attached to the edge of the table effortlessly and quickly - either with a retaining bracket set or an adhesive plate, without damaging the table. The power strip has two CEE 7/3 earthed sockets, a USB-C 22W charger and a USB-A charger (22W), allowing easy access to power connections for various devices such as smartphones, tablets and laptops. Please note that the mounting bracket and adhesive plate are not included in the scope of delivery.

The design of the Bachmann DESK 1 is clear and simple and is made of high-quality, durable materials. If you want to install several DESK 1 desk connection panels next to each other and loop them through via a GST18 connection, a distribution block (e.g. 375.102, 375.105, etc.) facilitates the connections and distribution of the cables. Please ensure that the maximum load is 16A! This table socket is the ideal solution for powering your electronic devices in comfort and style.

Key features Bachmann DESK 1 socket strip (902.1667)

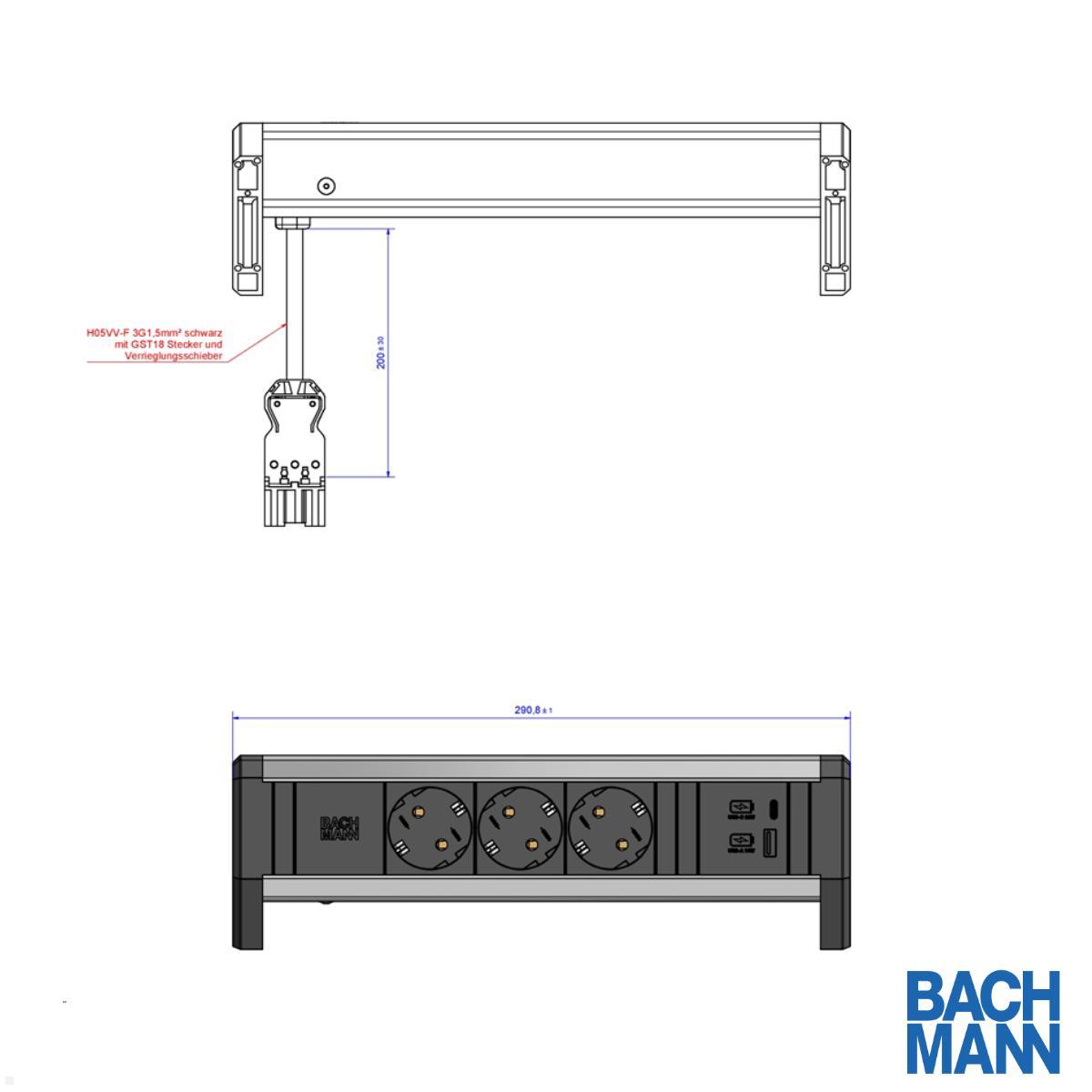

• Dimensions (WxHxD): 290.8 x 74 x 93 mm
• Colour: black (similar to RAL 9005)
• Profile: Aluminium
• 3x black socket outlets with earthing contact, rotated 35
• 1x USB A charger 22W (42.5 mm)
• 1x USB-C Charger 22W (42.5 mm)
• Power input GST18
• Power output GST18
• Power cable, mounting bracket and adhesive plate are available separately

Plug connection as standard

The standard power connection is designed with a Wieland plug-in connector built into the rear of the profile and offers the possibility of safe power feed-in and at the same time flexibility with regard to the length of the cable. The cables can be exchanged if necessary, e.g. to use longer or shorter power feed cables. As standard, we use the GST18 plug connector from Wieland, which is widely used worldwide. The plug-in connection has a locking mechanism that complies with regulations and can be unlocked again if necessary. The contact connections of the plug-in connection are touch-proof. A current output socket offers the possibility of passing on current to the next module.

Bachmann DESK 1 plus Bachmann STEP in combination

The ideal overall solution at the individual office workstation is the combination of Bachmann DESK 1 and Bachmann STEP power strip. Bachmann DESK 1 provides easy access to power and data connections for various devices (laptop, smartphone, USB, etc.), while the Bachmann STEP power strip underneath the tabletop supplies power to permanently installed devices such as PCs, monitors, printers, etc. The Bachmann STEP power strip is screwed on under the tabletop or positioned in an under-table channel. With the integrated Wieland plug-in system, several power strips can be connected in series in compliance with standards.
