Bachmann DESK 1 3x power strip 2x CAT6a (339.1004)

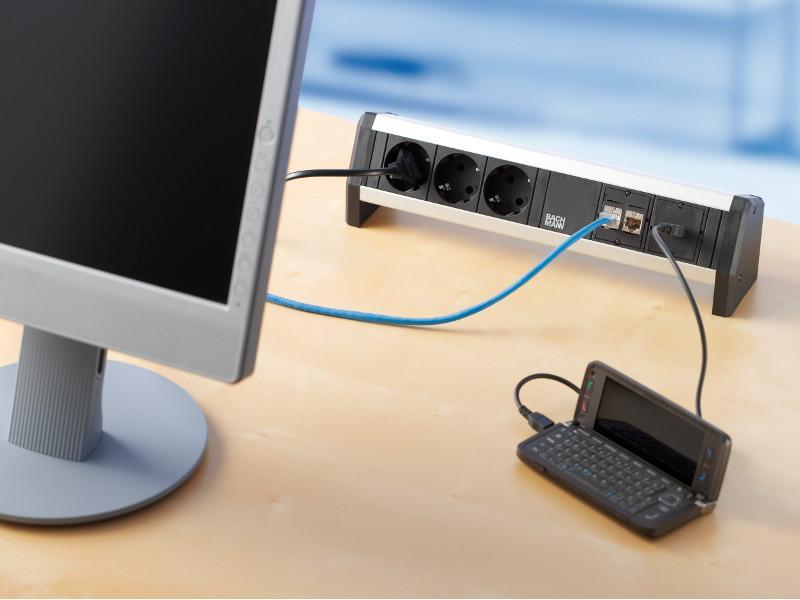

The Bachmann DESK 1 3x power strip 2x CAT6a (339.1004) can be mounted on the edge of a desk or table quickly and easily using a mounting bracket.
power strip - 3x socket / 2x CAT6a
Bachmann DESK 1 power strip - 3x socket / 2x CAT6a can be mounted on the edge of a desk or table quickly and easily using a mounting bracket. A size 4 Allen key is required in order to tighten the inside screw on the bracket. Mounting does not damage the tabletop / desktop.
Key features Bachmann DESK 1 power socket with 3x outlet 2x CAT6a (339.1004)
- Length: 280mm
- max. 16A / 230V
- aluminium profile silver
- 3x socket outlets with earthing contact, black, set at 35°
- 2x CAT6a RJ45, front: socket / rear: socket
- Power input: GST18i3 plug, black
- Power outlet: GST18i3 socket, black
- Incl. standard mounting bracket and screws
Plug connections as standard

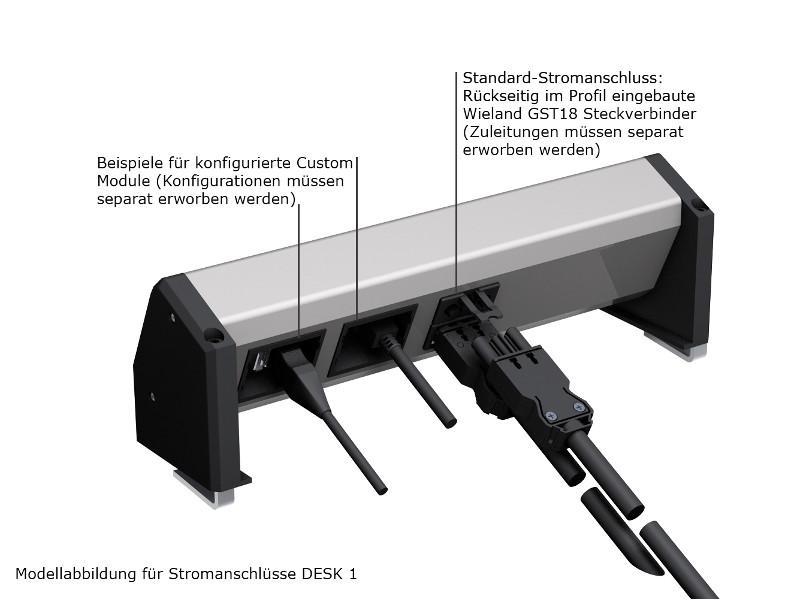

The standard power connection features a Wieland plug-in connector in the rear panel and provides both reliable power feed and also flexibility in cable length. The cables can be swapped for longer or shorter power supply cables, for example. We use Wieland’s GST18 connector, which is popular all over the world, as standard. This plug connection has a catch mechanism which complies with the relevant standards and can be released again if required. The contacts on the plug connection are safe to touch. A power output socket provides a means of forwarding power to the next module.
Bachmann DESK 1 plus Bachmann STEP in combination
Combining Bachmann DESK 1 with a Bachmann STEP power strip provides the ideal overall solution for an individual office workstation. Bachmann DESK 1 provides easy access to power and data connections for various devices (laptop, mobile phone, USB etc.) whilst the Bachmann STEP power strip under the desk/table top supplies power to fixed devices such as PC, monitor, printer etc. The Bachmann STEP power strip is screwed in place underneath the top of the desk or table or placed in a duct underneath.
The integrated Wieland connector system allows multiple power strips to be connected in series in compliance with standards.
| Product sheet: |  [pdf, 68 kb] |
|---|---|

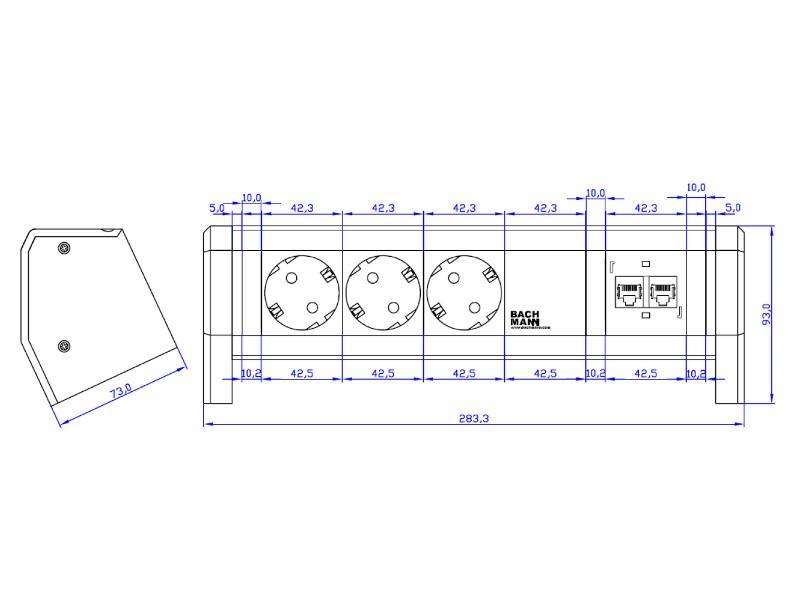

| Technical drawing: | [pdf, 63 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Silver/Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
