The DESK 1 (902.0811) from Bachmann in black (anodized aluminum profile) contains 2 safety sockets and one USB A charger and one USB C charger each with 22W. It is equipped with a GST18i3 socket and without a cable.
Desk socket with USB C and USB A chargers

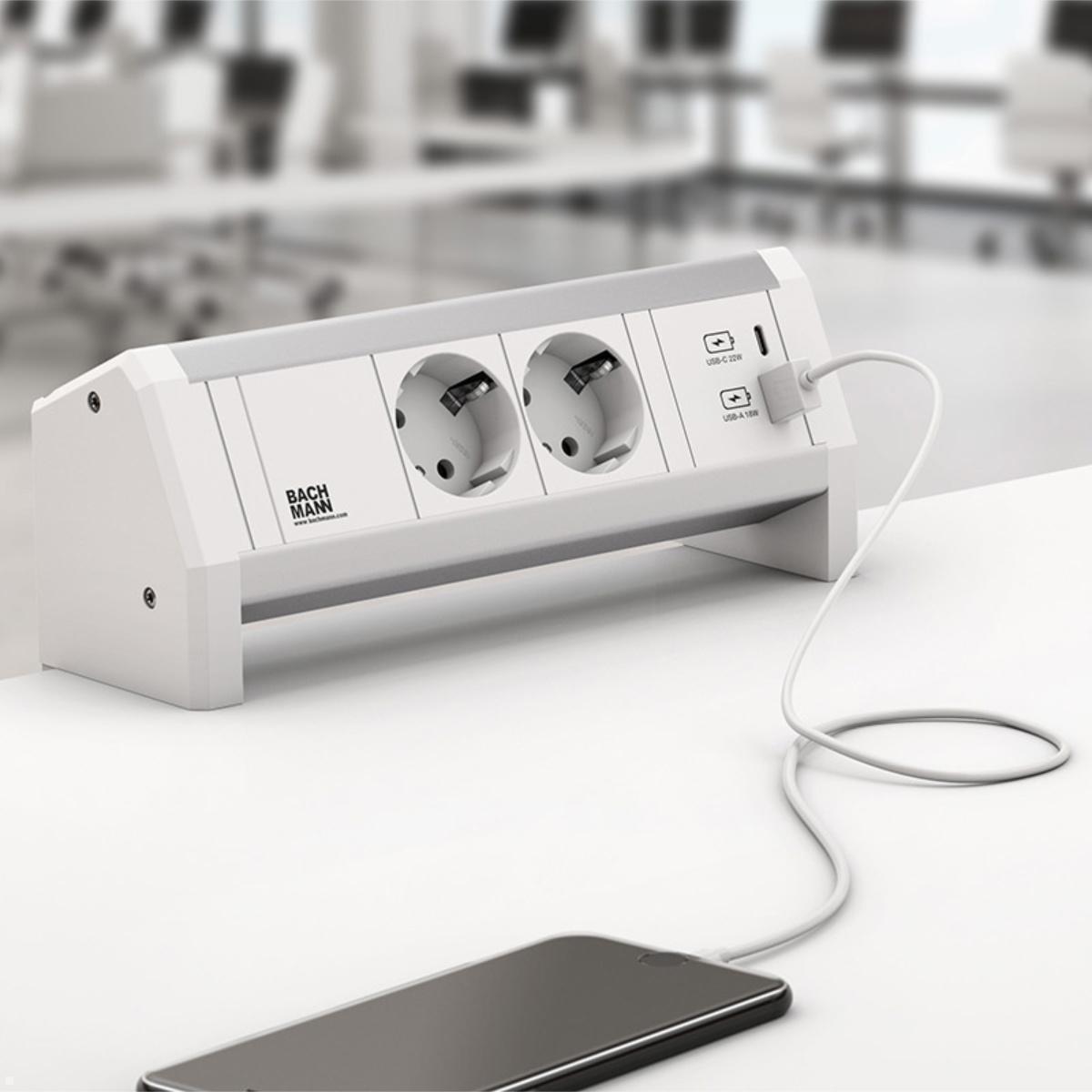

The Bachmann DESK 1 902.0811 Desk socket with USB C and USB A chargers as a charging station is quick and easy with a bracket set or an adhesive plate mounted on the edge of the table without damage. The socket strip with two CEE 7/3 safety sockets, a USB-C 22W charger and a USB A charger (22W) allows easy access to power outlets for different devices (smartphones, tablets, laptops). Supplied without mounting bracket and adhesive plate.
Clear and simply designed, Bachmann DESK 1 is made of high-quality and durable materials. If several DESK 1 desk connection panels are to be installed next to each other and looped through via a GST18 connection, a distributor block (e.g.: 375.102, 375.105, etc.) simplifies the connections and distribution of the cables. Please note a max. load of 16A!
Key features Bachmann DESK 1 socket strip (902.0811)
- Dimensions (WxHxD): 249.1 x 74 x 93 mm
- Colour: black similar to RAL 9005, aluminum profile
- 2x socket outlets with earthing contact, black, 35° rotated
- 1x USB A Charger 22W (42.5 mm)
- 1x USB-C Charger 22W (42.5 mm)
- Power input GST18
- Power outlet GST18
- Power cable, mounting bracket and adhesive plate are available separately
Plug connection as standard

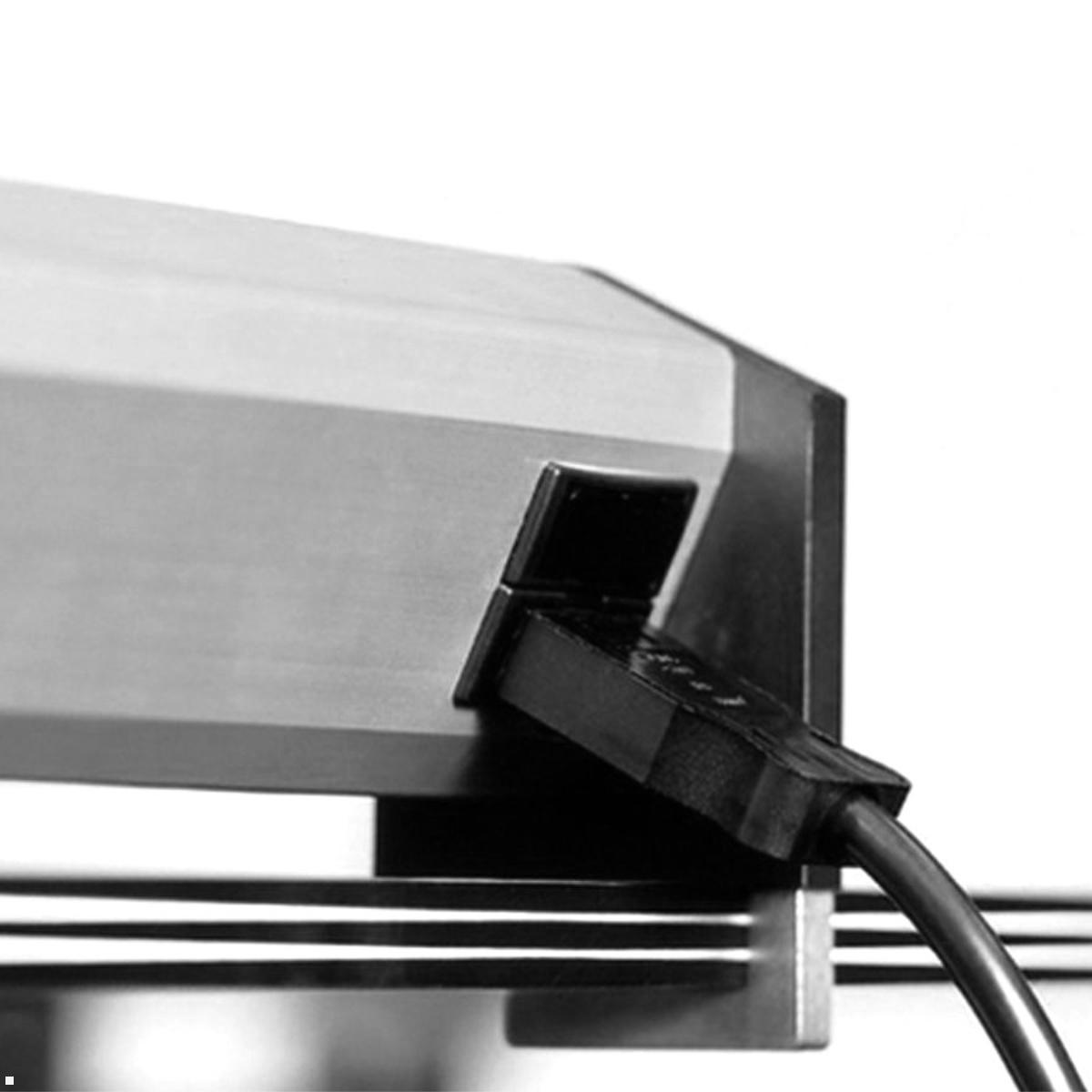

The standard power connection is designed with a Wieland plug connector built into the profile on the back and offers the option of safe power supply and at the same time flexibility in terms of the length of the cable. The lines can be exchanged if necessary, e.g. to use longer or shorter power feed lines. As standard, we use the GST18 connector from Wieland, which is used all over the world. The plug-in connection has a prescribed latch and can be unlocked again if necessary. The contact connections of the plug connection are safe to touch. A power output socket offers the option of passing power on to the next module.
Bachmann DESK 1 plus Bachmann STEP in combination
The ideal overall solution at the individual office workstation is the combination of Bachmann DESK 1 and Bachmann STEP socket unit. Bachmann DESK 1 offers easy access to power and data connections for various devices (laptop, smartphone, USB, etc.), while the Bachmann STEP socket unit below the table top supplies power to permanently installed devices such as PCs, monitors, printers, etc. The Bachmann STEP socket unit is screwed under the table top or positioned in an under-table channel. With the integrated Wieland plug-in system, several socket units can be connected one after the other in accordance with the standard.
Product sheet: | [pdf] |
---|---|

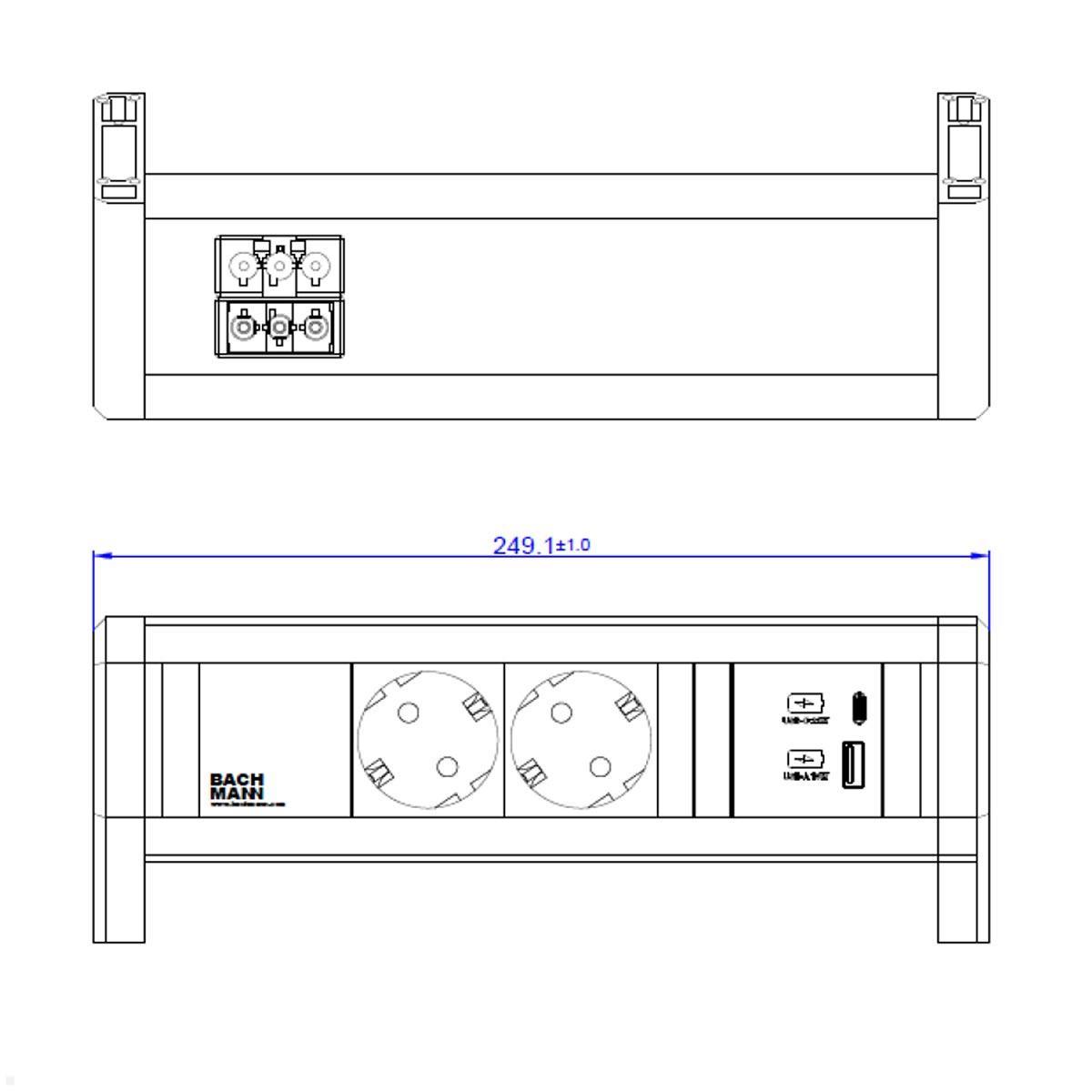

Technical drawing: | [pdf] |
RoHS / REACH: | [pdf] |
Installation manual: | [pdf] |
Warning/safety instructions: | [pdf] |
Packaging dimensions (LxWxH in mm): | 325 x 140 x 150 |
Scope of delivery: | 1x power strip |
Contains installation material: | - |
Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
Number of sockets: | 2 |
color: | Black |
USB-Charger: | USB A/C |
Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
