Bachmann custom module with 4x buttons for EIB/KNX (917.056)
The Bachmann Custom 4-button module (917.056) is for the Bachmann facility systems. It is a four button module used to connect to KNX applications.
4-button module
The Bachmann custom module framewith4-button module EIB/KNX (917.056) is for installation as a custom module in Bachmann Facility Systems. Article Bachmann 917.056 is a button module with four buttons that is suitable for connection to KNX applications. The module has 4 buttons, is rectangular, can be written on, is backlit in blue and can be programmed on EIB/KNX installations. With integrated bus coupler and bus terminal (can be labeled with a physical address). Use: For example as a button to operate lights, blinds.
Key features Bachmann (917.056)
- Custom module frame 4-way
- Programmable on KNX installations
- With integrated BUS coupler
- Front: 4 buttons white, blue illuminated

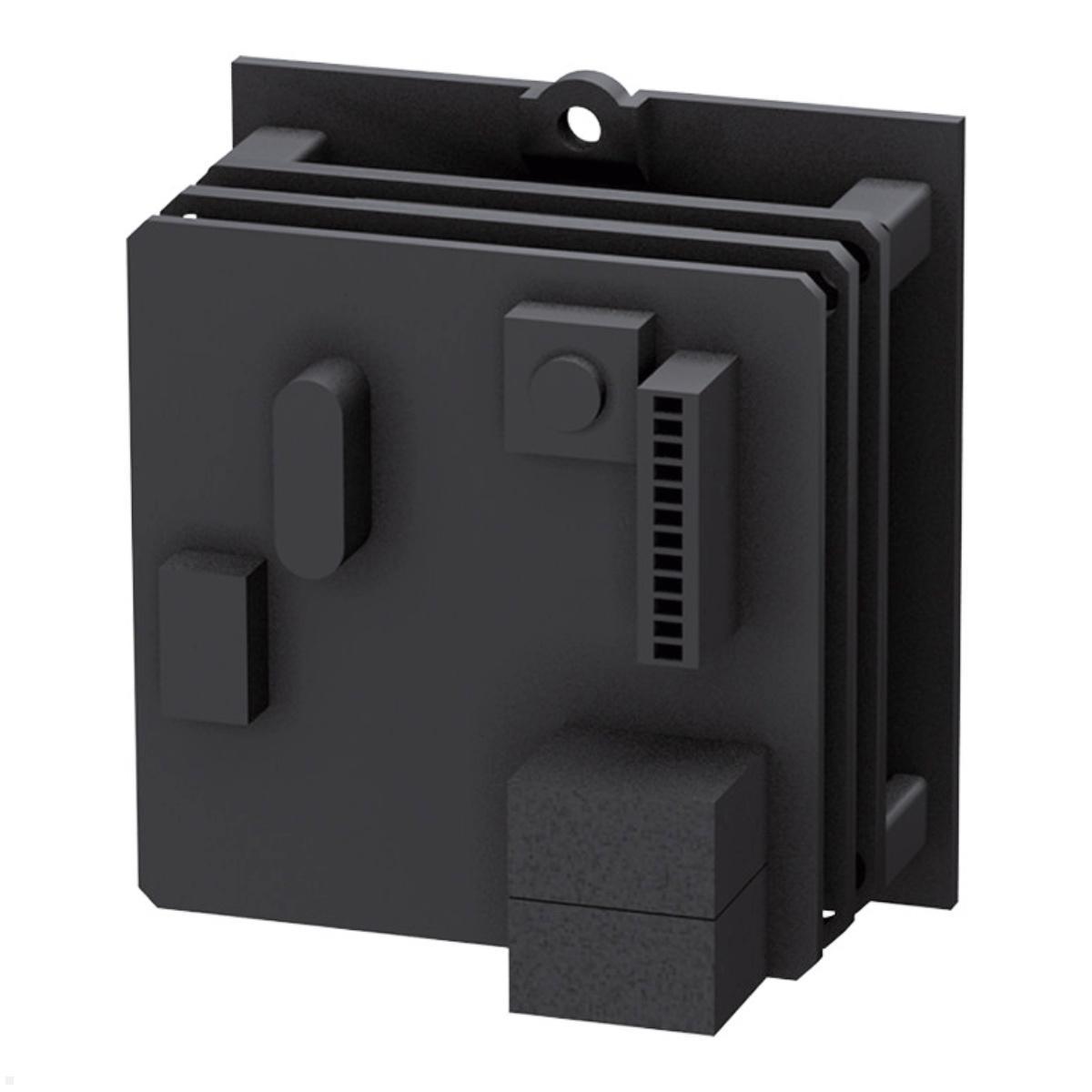

- Rear: 2-pole BUS plug-in terminal
- Power supply: system voltage 30 V DC via BUS plug-in terminal
- ETIM 8.0: insert/cover for communication technology (EC000018)
- For socket units from Bachmann Facility products with controller
- Dimensions: device width: 37 mm / height: 40.20 mm / depth: 15 mm
- Approx. 35mm required installation depth
- 2 TRX screws included in delivery
- Facility systems, rack installations and electrical installations
- Material: plastic
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann power strips with custom module insert |
| Packaging dimensions (LxWxH in mm): | 80 x 80 x 40 |
| Scope of delivery: | 1x custom module with button, 1 x TRX screw set |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
