Bachmann custom module VGA, jack, HDMI (917.226)
Custom modules such as the Bachmann 917.226 are the central building blocks for video, audio and network connections. Custom module equipped with: cable whipping 0.2 m female jack for VGA, audio (jack 3.5mm stereo) and HDMI, HDMI mounting via a keystone clip. The HDMI module terminates flush with the panel, so that the installation of the module can also be installed in variants with little space under the cover such as the Power Frame Cover.
Successor of the custom module 917.222
Bachmann custom module 1x VGA, jack, 1x HDMI 917.226

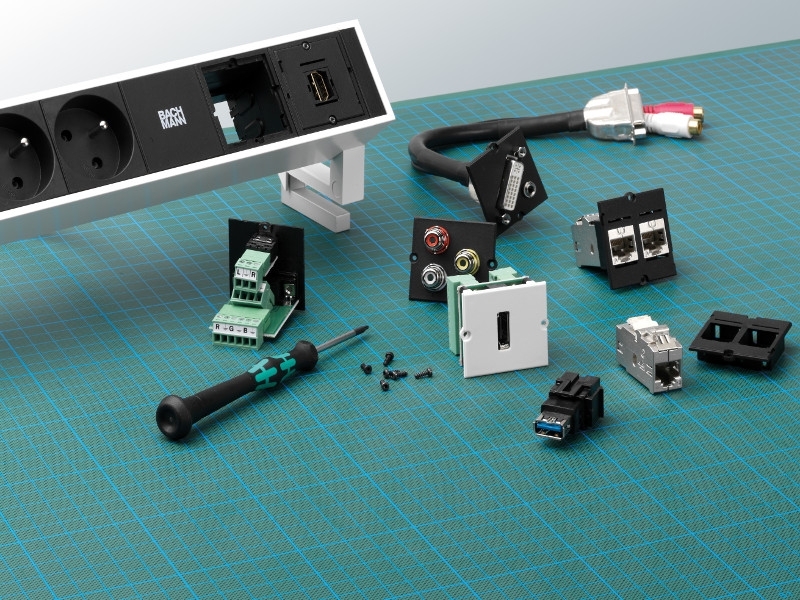

BACHMANN custom modules such as the 917.226 transmission module are the central building blocks for video, audio and network connections. Their design allows them to be easily and flexibly installed in the fields of FACILITY SOLUTIONS, rack and electrical installations.
The custom module 917.226 makes BACHMANN FACILITY SOLUTIONS even more flexible. With easy-to-use custom modules, you can quickly and easily meet all your customers' individual data, video and audio needs. The HDMI module 917.226 terminates flush with the panel, so that the installation of the module can also be installed in variants with little space under the cover such as the Power Frame Cover.

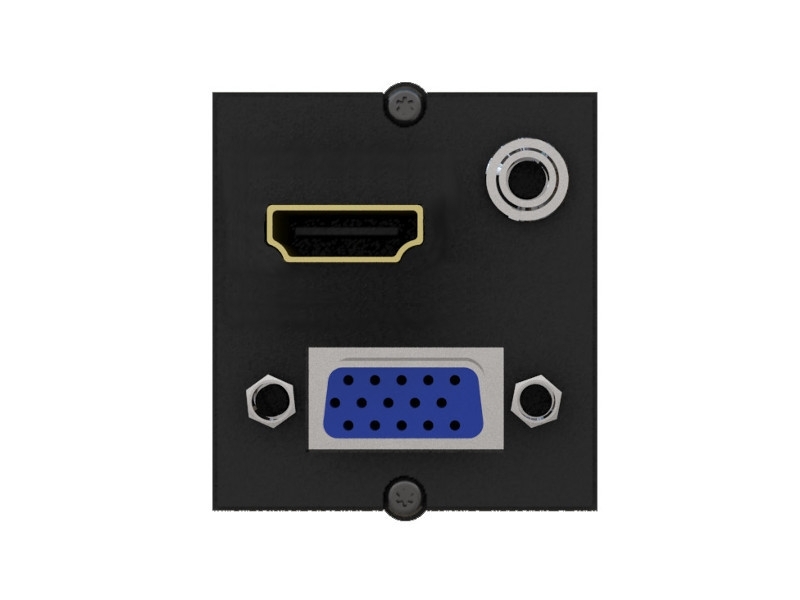

Key features Bachmann custom module VGA, jack, HDMI (917.226):

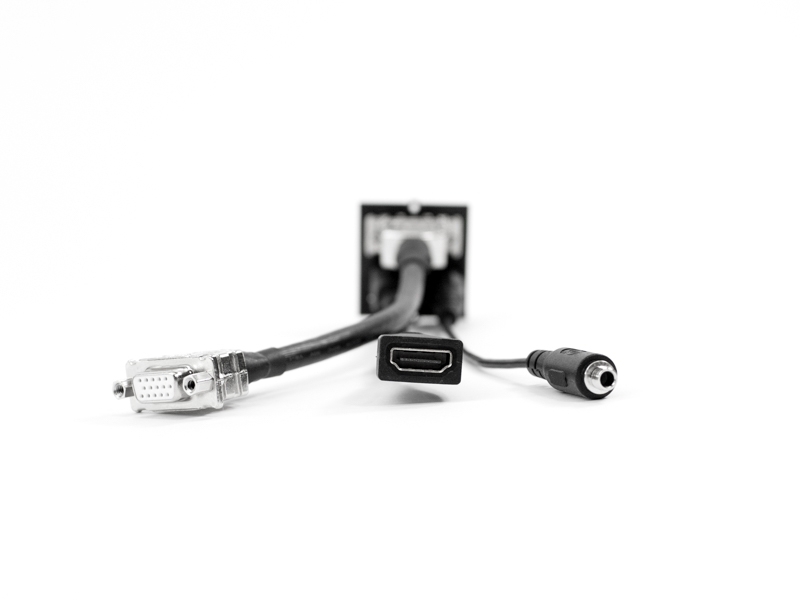

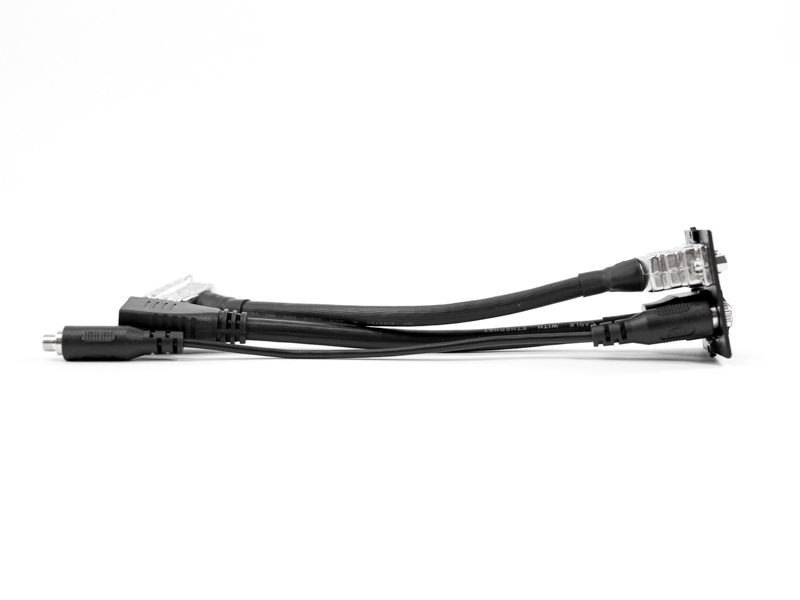

- VGA connection 15-pole with 0,2m breakout cable
- 3,5mm Stereo minijack with 0,2 m breakout cable
- HDMI 2.0 Keystone Module with 0,25 m breakout cable
- HDMI mounting via a Keystone clip

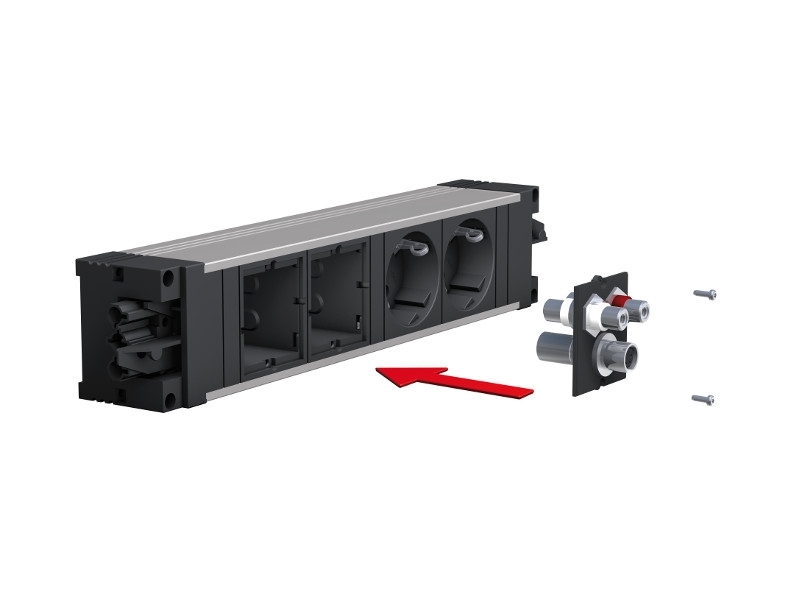

- For installation into power units with custom module frame
- Custom module terminates flush with the panel
Benefits Bachmann custom modules at a glance:
- Individual placement possibilities
- Future-proof due to interchangeable modules
- Simple and flexible installation
| Product sheet: |  [pdf, 1,5 MB] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
