Bachmann custom module USB Double-Charger (917.224)
With the new Bachmann 917.224 USB Double Charger (5V / 2,4A) in a custom module size, the charging of mobile devices is a child's play: The universal and flexible solution is particularly suitable for retrofitting BACHMANN products with custom module recording. The Bachmann USB Charger Module is powered by the Wieland GST18i3 device connector.

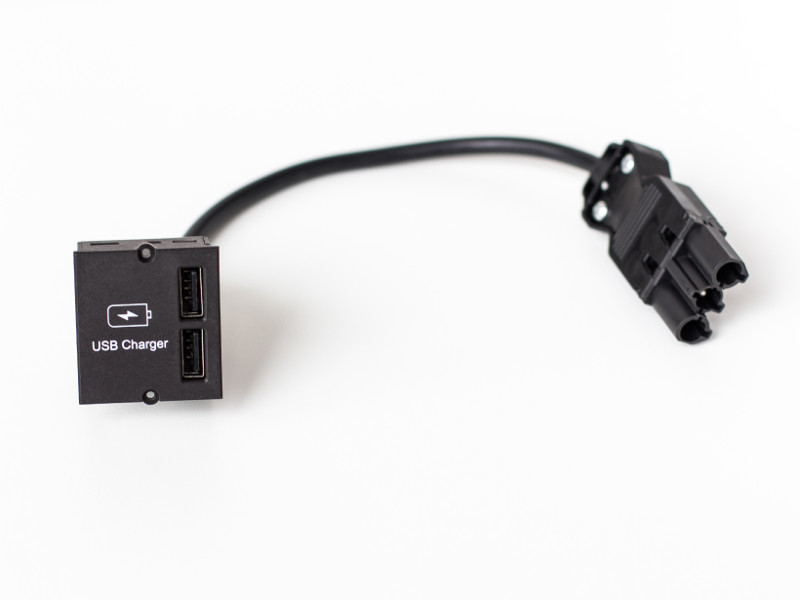

Bachmann custom module 1x USB Double-Charger 917.224
With the new Bachmann USB double charger (5V / 2,4A) 917.224 in custom module size, the charging of mobile devices is a child's play: The universal and flexible solution is particularly suitable for the retrofitting of BACHMANN products with custom module mounting, for which no charging variant has been available so far.
The Bachmann USB charger 917.224 is powered by the Wieland GST18i3 device connector. By default the chargers are supplied with protection against overcharging, overvoltage, short circuit and overheating.
Key features Bachmann custom module 1x USB Double-Charger (917.224):
- Input voltage: 250 V
- Output: 5 V DC / max. 2,4 A
- Front: 2 x USB-A connector

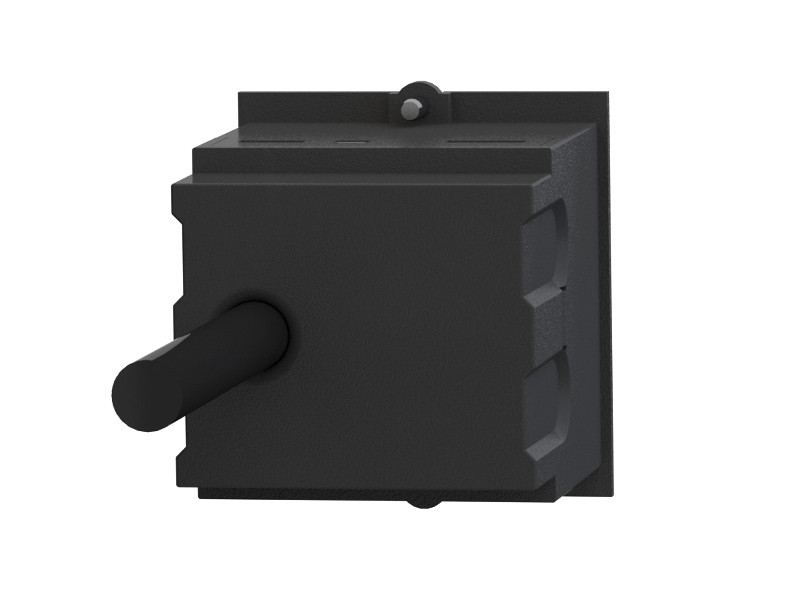

- Rear: GST18i3 plug with approx. 0.2 m cable
- Charging Devices: Apple Devices Fast Charging, Samsung Galaxy Tab Devices Fast Charging, BC1.2 Charging Specification

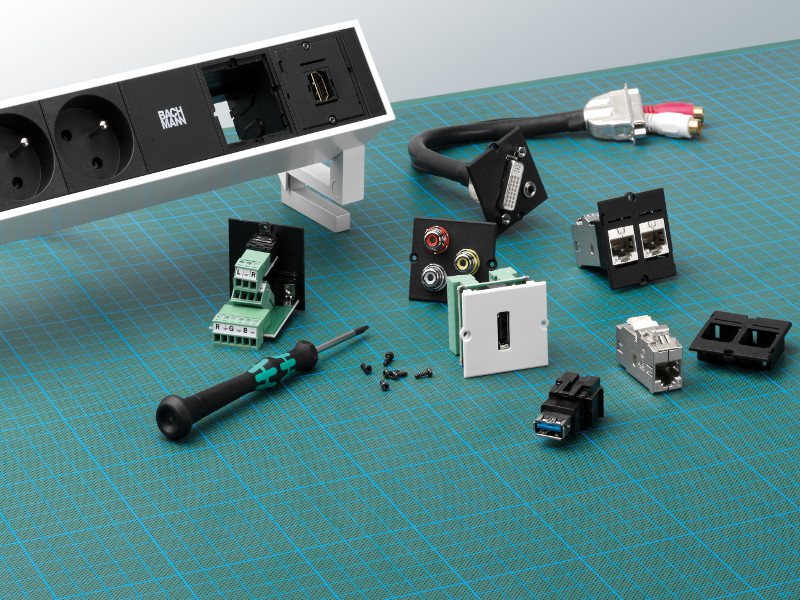

Benefits Bachmann custom modules at a glance:
- Individual placement possibilities
- Future-proof due to interchangeable modules
- Simple and flexible installation
| Product sheet: |  [pdf, 1,5 MB] |
|---|---|

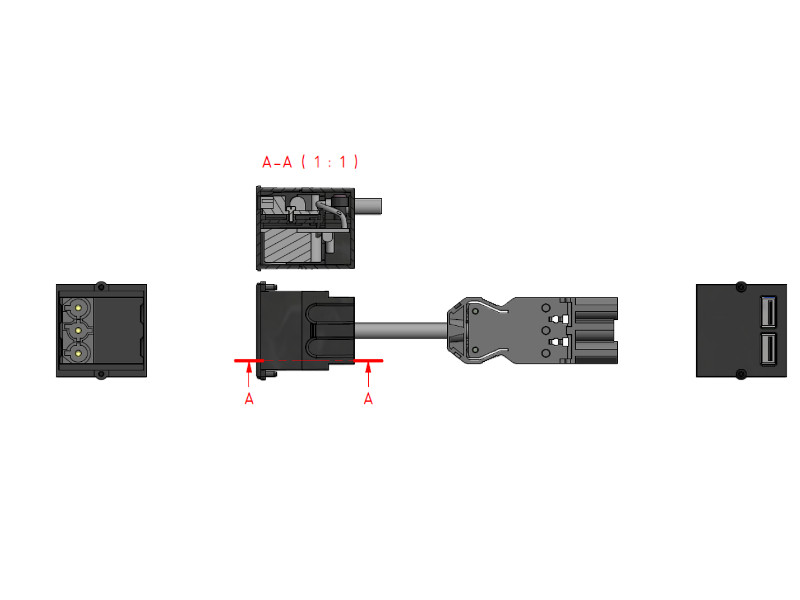

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| USB-Charger: | USB A/A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
