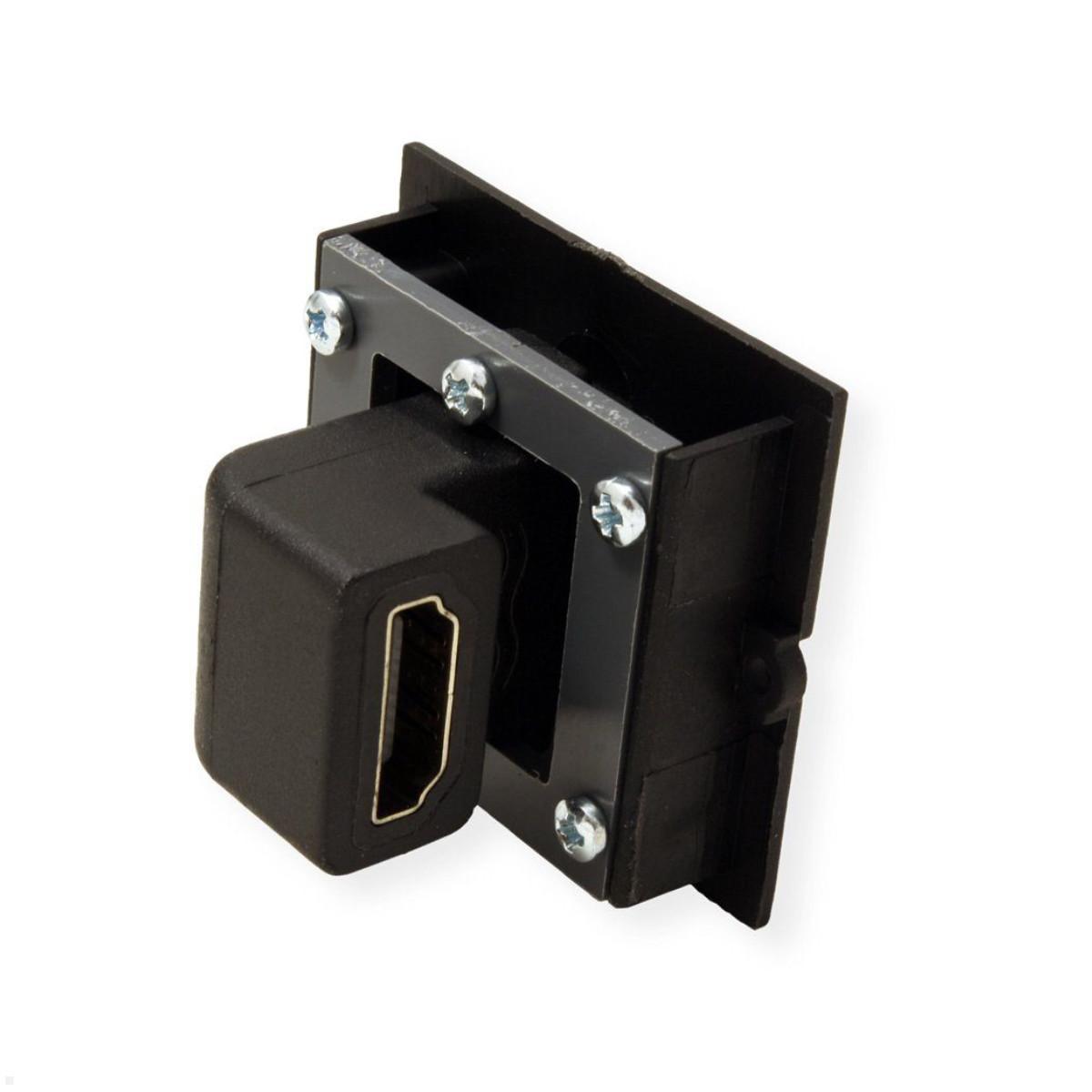

Bachmann custom module HDMI socket/socket, 90° angled (917.146)

Custom module HDMI to HDMI angled

The Bachmann custom module frame HDMI socket/socket (917.146) is a high-quality and versatile frame for integrating HDMI connections into a Bachmann socket unit with 90° side exit. The jack is designed to allow easy and convenient connection to HDMI sources such as laptops, desktop computers, projectors and other audio and video sources. With the Bachmann custom module HDMI socket/socket you get a reliable solution for your HDMI requirements. Easy connection by socket / socket or screw terminal connection. This custom module is only compatible with power strips with a side 90 degree outlet.

Key features Bachmann (917.146)

• Custom module (CM)
• Front: HDMI socket
• Rear: HDMI socket
• ETIM 8.0: insert/cover for communication technology (EC000018)
• Can be integrated in the socket units of the Bachmann Facility products with a side outlet
• Outlet on the side 90°

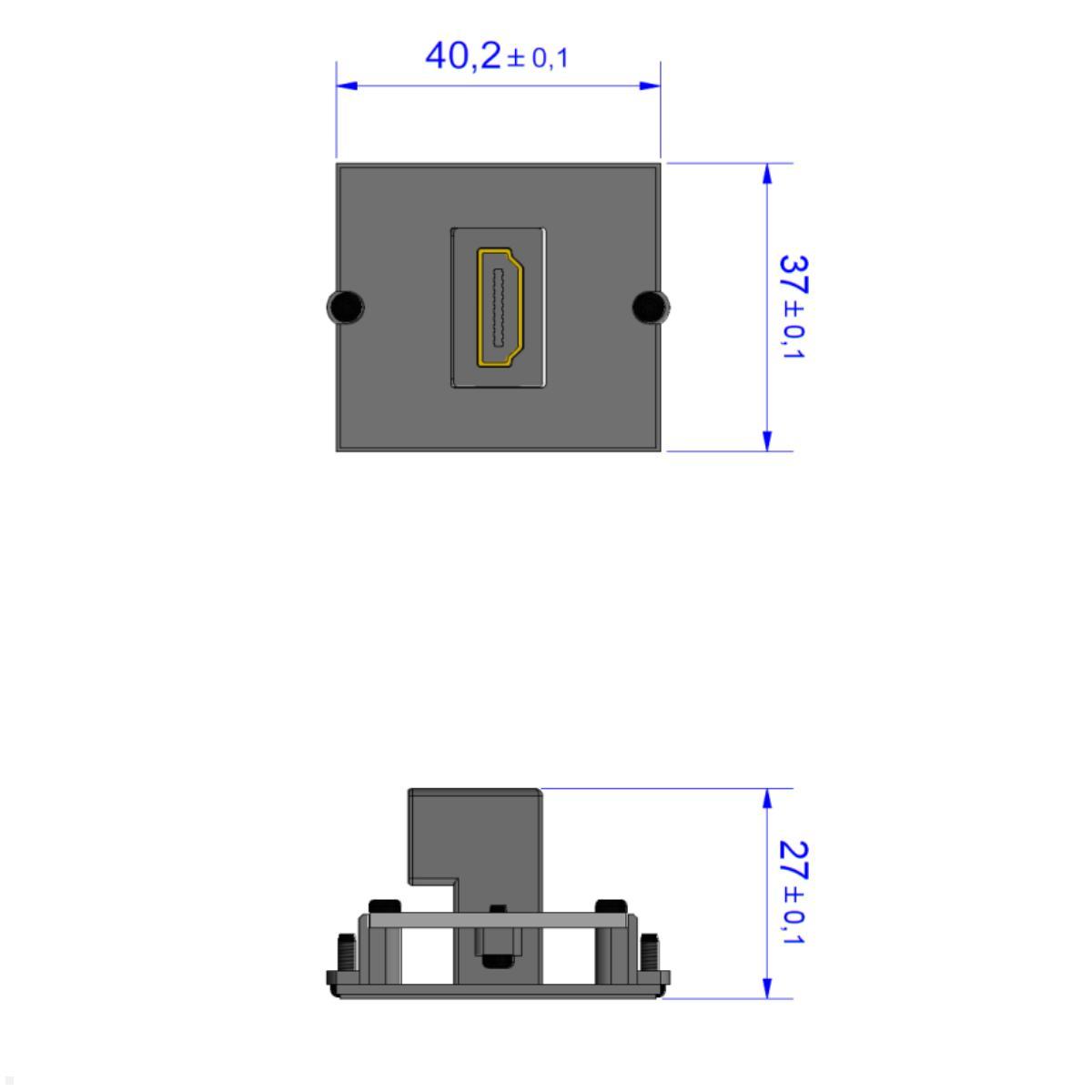

• Dimensions: device width: 37 mm / height: 40.2 mm / depth: 30 mm
• Approx. 30 mm installation depth required
• 2 screws included in the scope of delivery
• Facility systems, rack installations and electrical installations
• Material: plastic
• Color: Black
