Bachmann custom module 1x VGA and mini jack (917.058)

Bachmann module

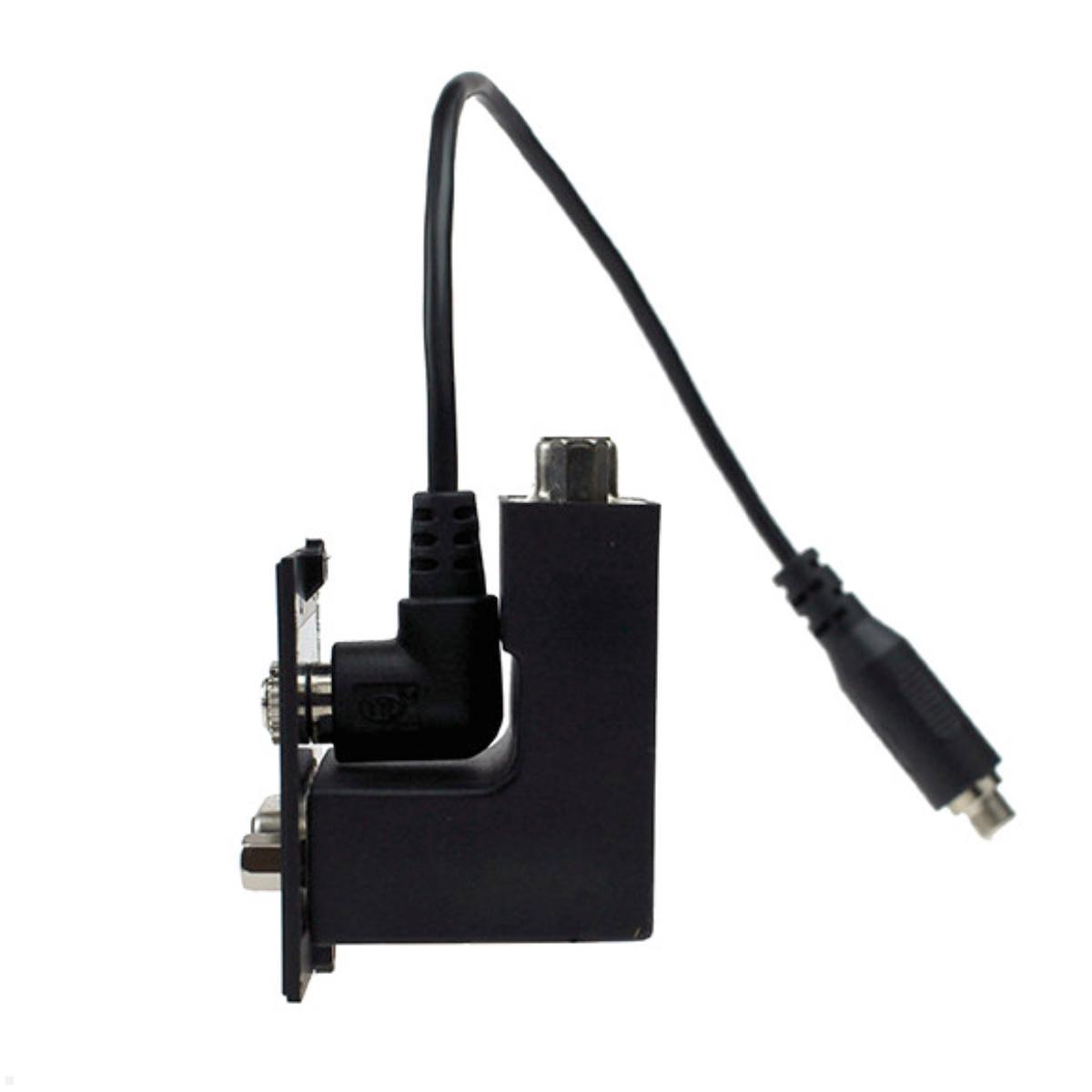

The Bachmann custom module frame with 1x VGA and 1x mini jack (917.058) is a high quality and robust solution for the integration of audio and video connections in a Bachmann socket unit with 90° side exit. The frame offers a VGA interface that ensures high-quality video transmission. The 3.5 mm stereo mini jack socket with a 0.2 m cable enables quick and easy connection to audio sources. The Bachmann module has a 90 degree side outlet that gives you the option of conveniently accessing the connections without having to get through cables or other obstacles. This custom module is only compatible with power strips with a 90° lateral outlet.

Key features Bachmann (917.058)

• Custom module (CM)
• Front: VGA socket and 3.5mm stereo mini jack

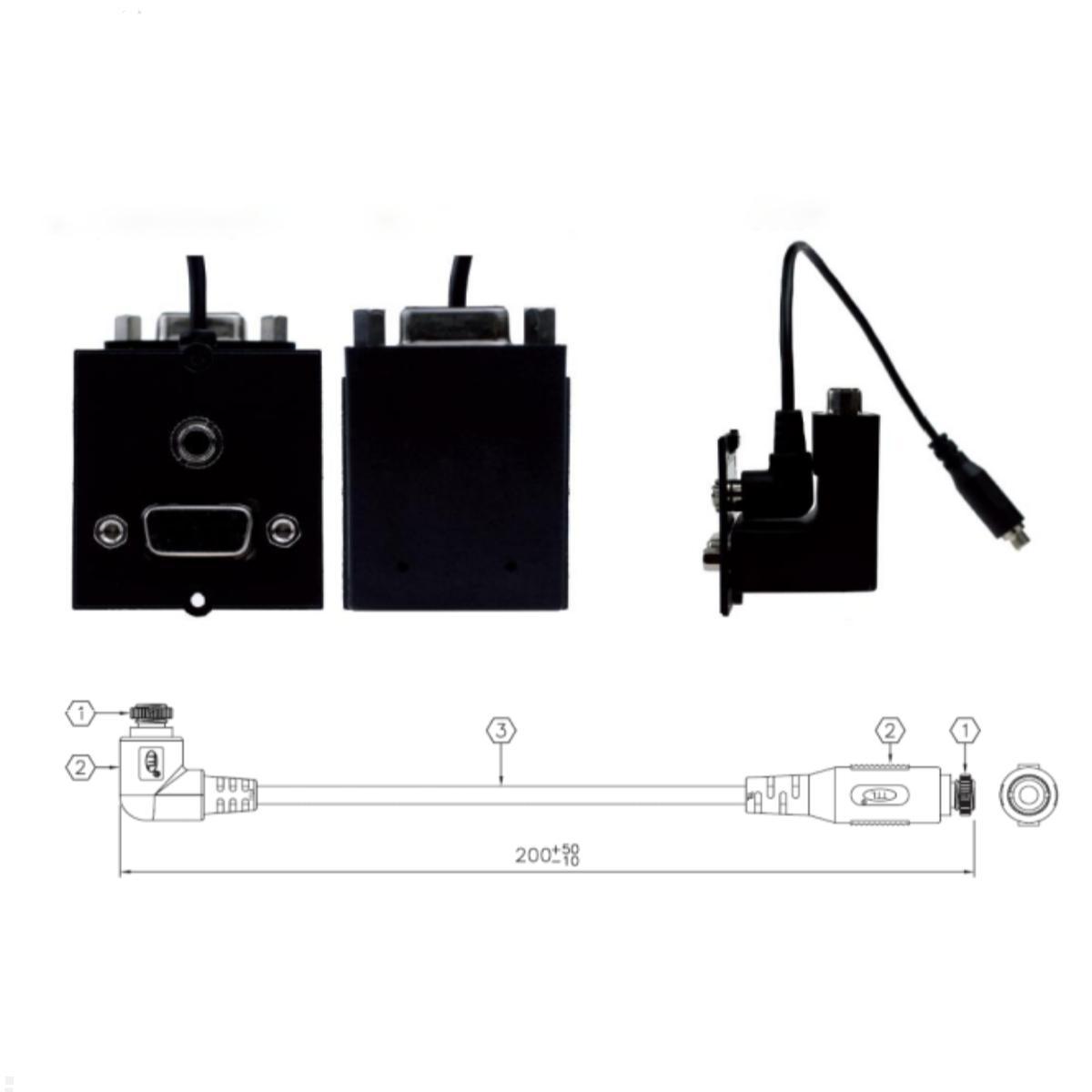

• Rear: VGA socket and 3.5mm stereo mini jack, each with approx. 0.2m cable
• ETIM 8.0: insert/cover for communication technology (EC000018)
• Can be integrated in socket units from Bachmann Facility products with 90° lateral outlet
• 90° lateral outlet

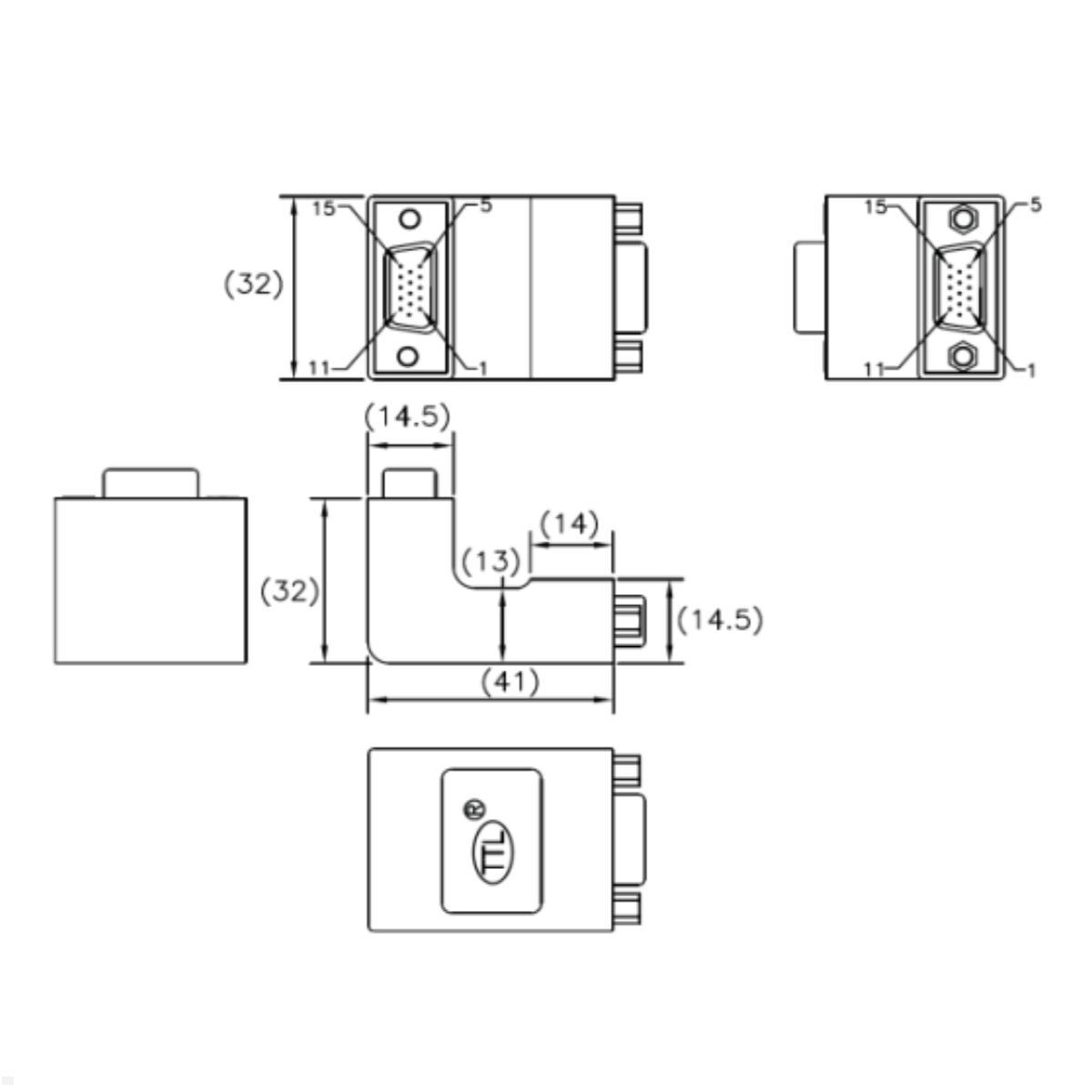

• Dimensions: device width: 37 mm / height: 40.2 mm / depth: 38 mm
• Approx. 40 mm installation depth required
• 2 screws included in the scope of delivery
• Facility systems, rack installations and electrical installations
• Material: PVC
• Color: Black
