Bachmann custom module 1x HDMI and mini jack (917.189)
The Bachmann custom module HDMI socket and mini jack 3.5 mm stereo (917.189) is a high-quality solution for your HDMI requirements and is suitable for the Bachmann socket strips with lateral 90° exit.
Custom module HDMI
The Bachmann Custom module frame HDMI and mini jack (917.189) is a high quality and versatile module for the integration of HDMI connections into a Bachmann socket unit with 90° side exit. The jack is designed to allow easy and convenient connection to HDMI sources such as laptops, desktop computers, projectors and other audio and video sources. With the Bachmann Custom module you get a reliable solution for your HDMI requirements. This custom module is only compatible with power strips with a side 90 degree outlet.
Key features Bachmann (917.189)
- Custom module (CM)
- Front: HDMI socket and 3.5 mm stereo mini jack
- Rear: HDMI socket and 3.5 mm stereo mini jack with approx. 0.2 m cable
- ETIM 8.0: Insert/cover for communication technology (EC000018)
- Can be integrated in socket units of Bachmann Facility products with side outlet
- Outlet at side 90°

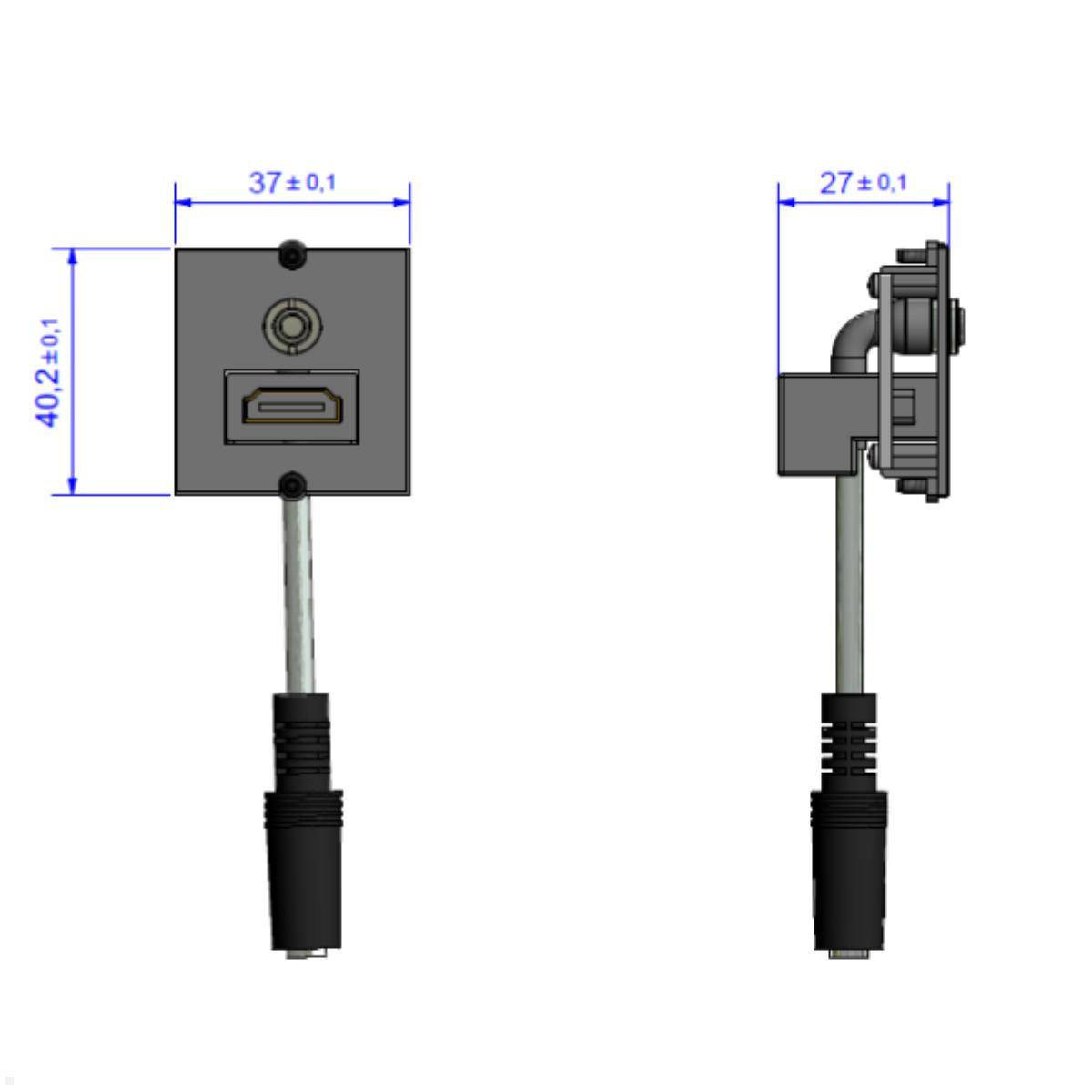

- Dimensions: device width: 37 mm / height: 40.2 mm / depth: 30 mm
- Approx. 65 mm installation depth required
- 2 screws included in the scope of delivery
- Facility systems, rack installations and electrical installations
- Material: plastic
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann socket unit with 90° lateral outlet |
| Packaging dimensions (LxWxH in mm): | 50 x 80 x 40 |
| Scope of delivery: | 1x custom module HDMI + mini jack, 1x TRX screw set |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
