Bachmann Consolidation Point floor outlet (919.1000)

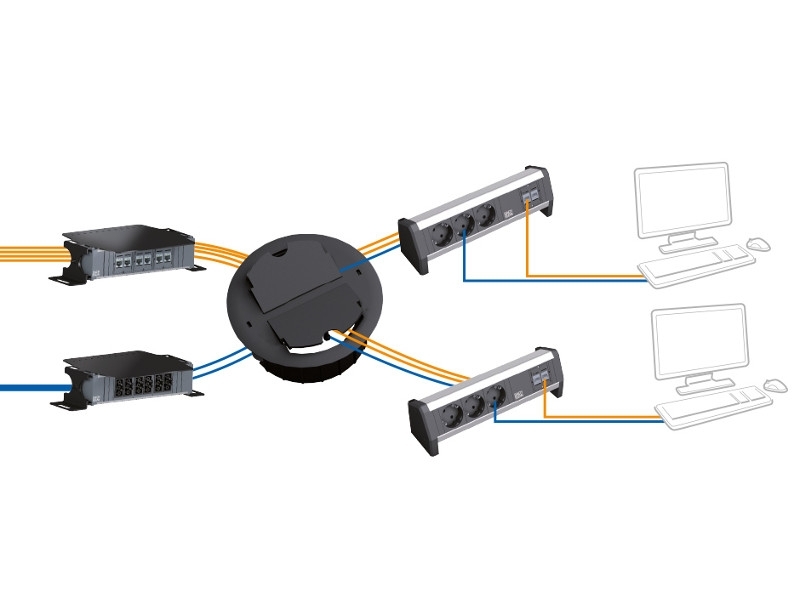

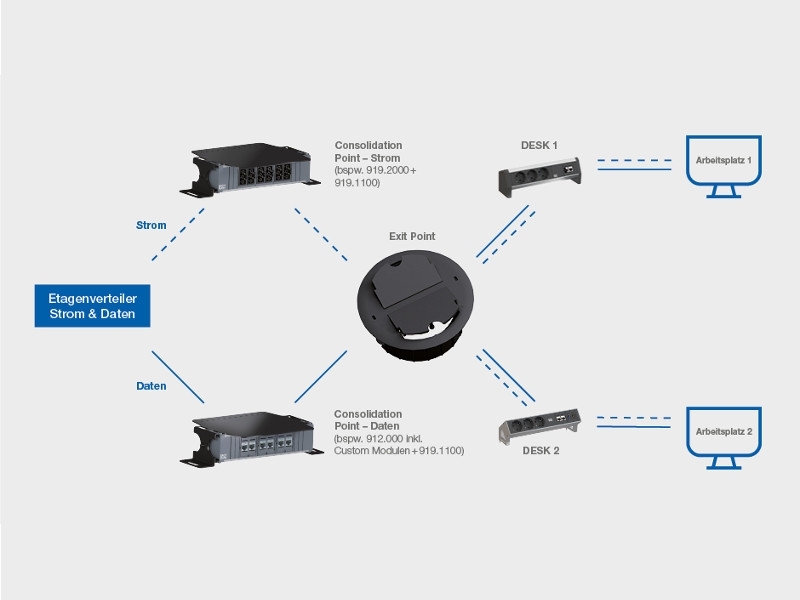

The Bachmann floor outlet (919.1000) for dry-cleaned double and hollow floors from 24 mm thickness for the cable outlet from the underbody (Consolidation Point) to the socket unit at the table.

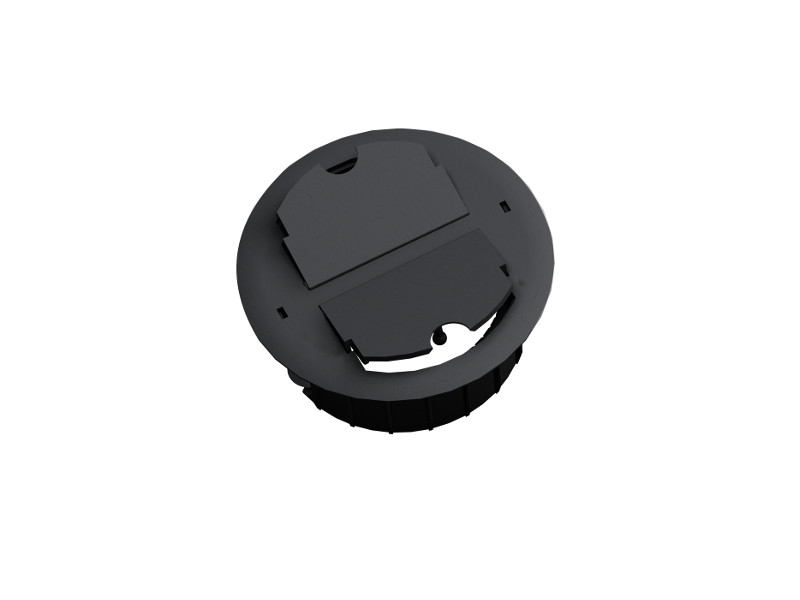

Bachmann Consolidation Point floor outlet (919.1000) in black

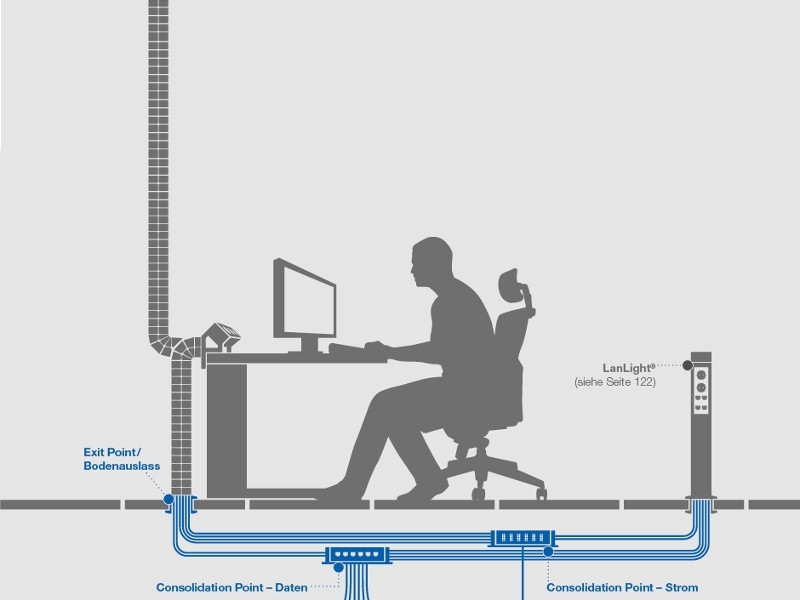

The Bachmann floor outlet (919.1000) for dry-cleaned double and hollow floors from 24 mm thickness for the cable outlet from the subfloor (Consolidation Point) to the socket unit at the table. With 2 eccentric Allen screws in the ring, the outlet can be easily anchored or removed in the ground.

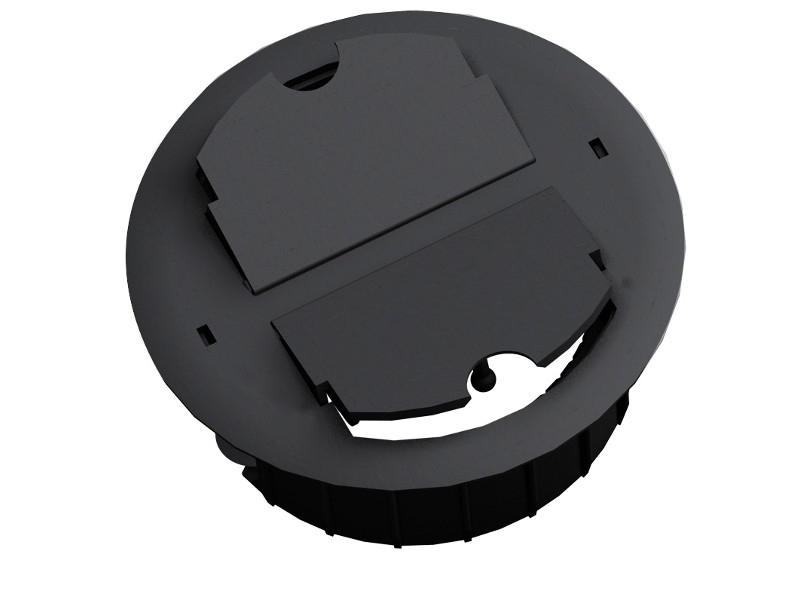

Two independently positionable flaps (130 ° rotatable) with an open lockable position prevent the kinking of cables and wires. Cloth hoses or cable management systems from Bachmann can be fastened to the floor outlet, avoiding pitfalls. If necessary, the flaps can be sunk and used as accessible blind cover.
Key features Bachmann Consolidation Point floor outlet (919.1000)
- Finish: black similar RAL9005
- Floor outlet for power and data lines
- Installation in raised floors 24 mm thickness
- Hole pattern: 112 mm
- Easy installation by allen key
- Incl. 2 flaps approx. 130 ° rotatable for cable outlet
- Material floor outlet: polyamide (halogen-free)
| Product sheet: |  [pdf, 274 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 153 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
