Bachmann Consolidation Point 12-way GST18 socket 1-phase L (919.2002)
With the Bachmann Consolidation Point (919.2002) with 12-way GST18 socket, 1-phase Large, electricity can be passed on through a modern underbody system. The power connections are equipped with connector systems of the manufacturer Wieland.
Bachmann Consolidation Point 12-way GST18 socket 1-phase Large (919.2002) in black

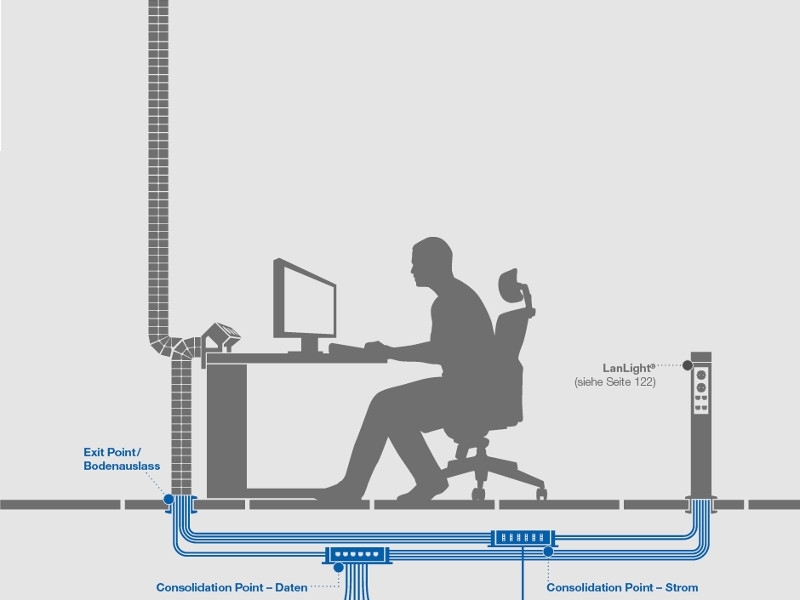

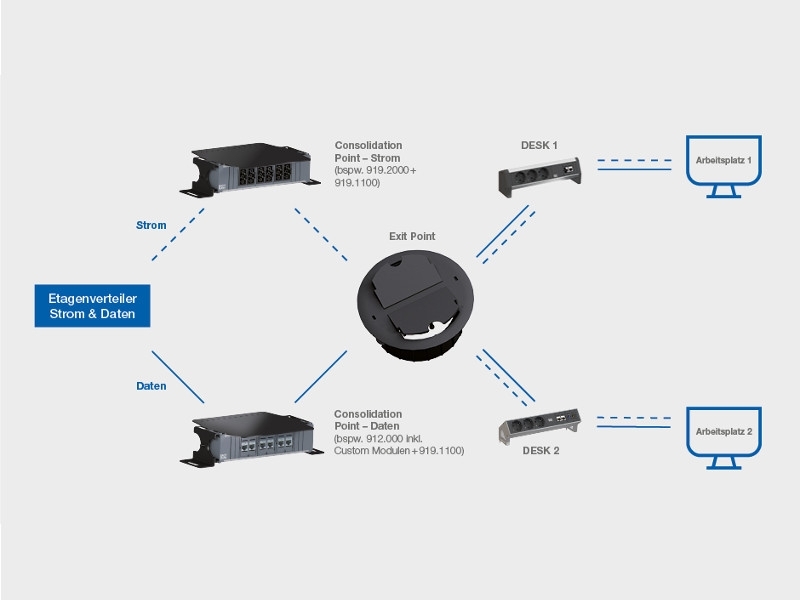

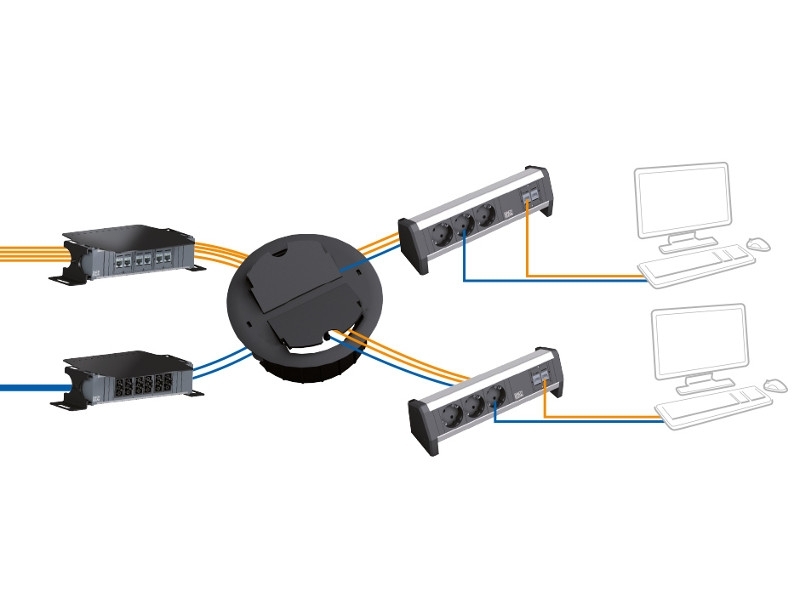

With the Bachmann System Consolidation Point 12-way large for underfloor distribution and installation according to the MUTO concept, Bachmann offers a conclusive and simple installation solution that provides power and data right down to the desk. The Consolidation Points for electricity are conventionally connected to the floor distributor. Floor outlets and power strips from Bachmann complete the installation kit. From the Consolidation Point, the floor outlet enables convenient continuation of power and data to the workplace. This eliminates complicated, fixed installations such as the traditional installation with floor tanks.
The CP power of the Bachmann Consolidation Point 12-way GST18 socket 1-phase Large (919.2002) in black is pre-wired and electrically tested ex factory. The unit for power is equipped with a 12-way GST18i3 socket, 1-phase and a GST18i3 power input.
Key features Bachmann Consolidation Point 12-way GST18 socket 1-phase Large (919.2002)
- Finish: black
- 12-way GST18i3 socket, 1-phase
- Power input: GST18i3
- Length: 356 mm
- Prewired and electrically tested ex factory
- Power connections with connector system of the manufacturer Wieland
- Time-optimized installation on site
- Future-proof through flexible expansion
| Product sheet: |  [pdf, 274 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
