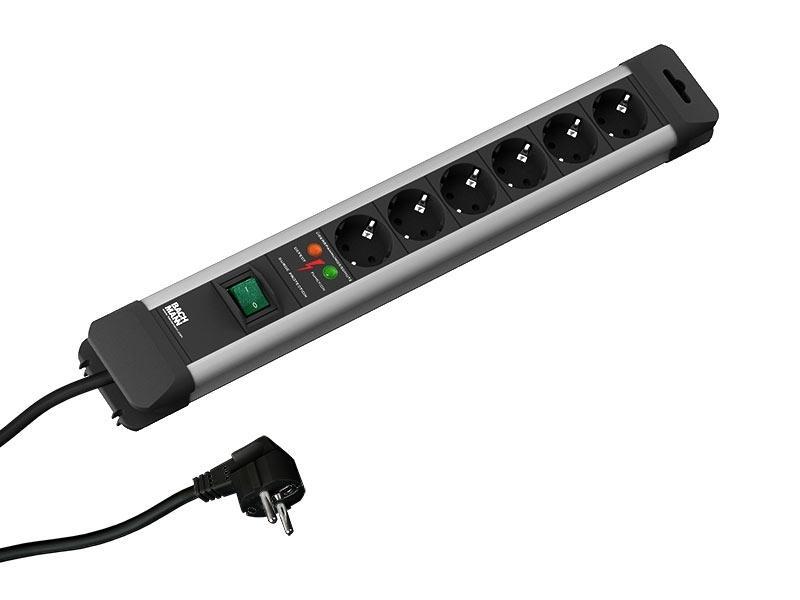

Bachmann CONNECTUS 6x power strip, 1x switch, Mains and frequency filters (330.105)
The Bachmann CONNECTUS (330.105) protective contact socket 6-way including switch, overvoltage protection and mains and frequency filter can be used variably as a socket strip for commercial as well as for private use.
Bachmann CONNECTUS 6x power strip, 1x switch, Mains and frequency filters (330.105)
The Bachmann CONNECTUS (330.105) socket strip consists of 6 protective contact sockets in black which can be switched on and off with a rocker switch. The built-in mains and frequency filter for effective screening and smoothing of the input voltage, whereby only the "clean voltage" arrives at the multiple socket. The overvoltage protection protects against excessive electrical voltage.
The Bachmann CONNECTUS (330.105) socket strip has an integrated child protection in the socket outlets, which are turned through 35 ° and are equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable rewind.
Key features Bachmann CONNECTUS 6x power strip, 1x switch, Mains and frequency filters (330.105)
- Socket colour: black
- Material: Plastic profile
- Dimensions (WxHxD): 568x72x49 mm
- 6-way power strip
- Socket, 35° twisted
- 1x 2-pole illinated switch
- Incl. overvoltage protection
- Incl. Mains And frequency filters
- Supply cable: 2,0 m H05VV 3G 1,50 mm²
- Incl. Protective contact angle plug
- IP protection class: IP20
- Integrated child protection
- Integrated cable rewind
- Easy mounting through mounting holes
- Black end caps can not be opened
| Product sheet: |  [pdf, 72 kb] |
|---|---|

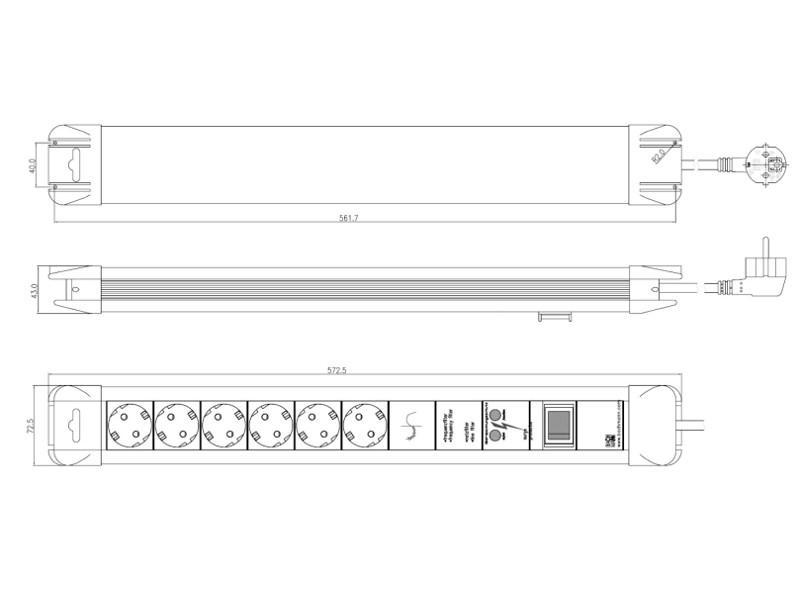

| Technical drawing: | [pdf, 69 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Mains filter: | Yes |
| Overvoltage protection: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
