Bachmann CONNECTUS 3x power strip red (330.300)
The Bachmann CONNECTUS (330.300) power socket, 3-way including switch with 2.0m supply cable, can be used variably as a socket strip for commercial as well as for private use.
Bachmann CONNECTUS 3x power strip red (330.300)
The Bachmann CONNECTUS (330.300) socket strip consists of 3 protective contact sockets in red with a 10A precision fuse.
The Bachmann CONNECTUS (330.300) socket strip has an integrated child protection in the socket outlets, which are turned through 35 ° and are equipped with a nickel-plated protective contact. Practical are the multiple socket outlets for commercial and private use thanks to the integrated cable rewind.
Key features Bachmann CONNECTUS 3x power strip red (330.300)
- Socket colour: red
- Material: Plastic profile
- Dimensions (WxHxD): 273x72x49 mm
- 4-way power strip
- Socket, 35° twisted
- Supply cable: 2,0 m H05VV-F 3G 1,0 mm² mit C14 Kaltgerätestecker
- IP protection class: IP20
- Integrated child protection
- Integrated cable rewind
- Easy mounting through mounting holes
- Black end caps can not be opened
| Product sheet: |  [pdf, 62 kb] |
|---|---|

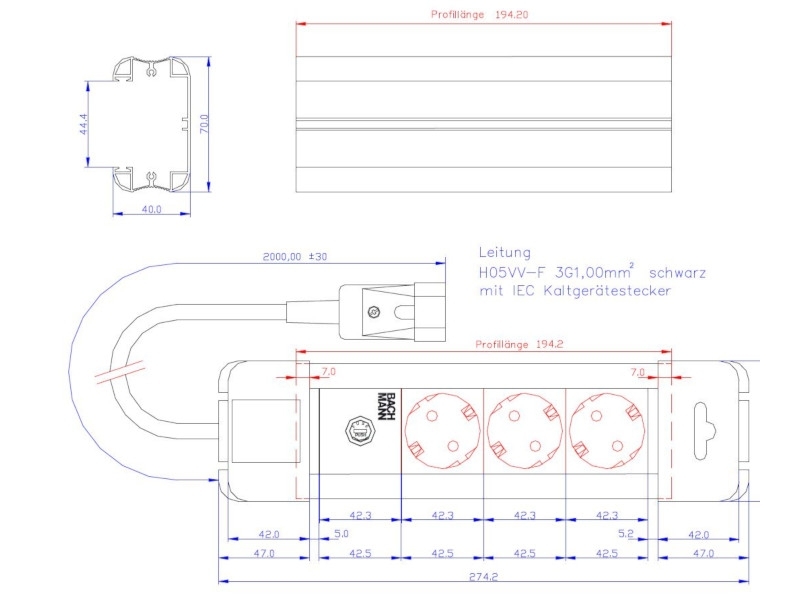

| Technical drawing: | [pdf, 77 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Red |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
