Bachmann CONNECT LINEsocket 5-way 1x switch 1x overvoltage protection (420.0022)

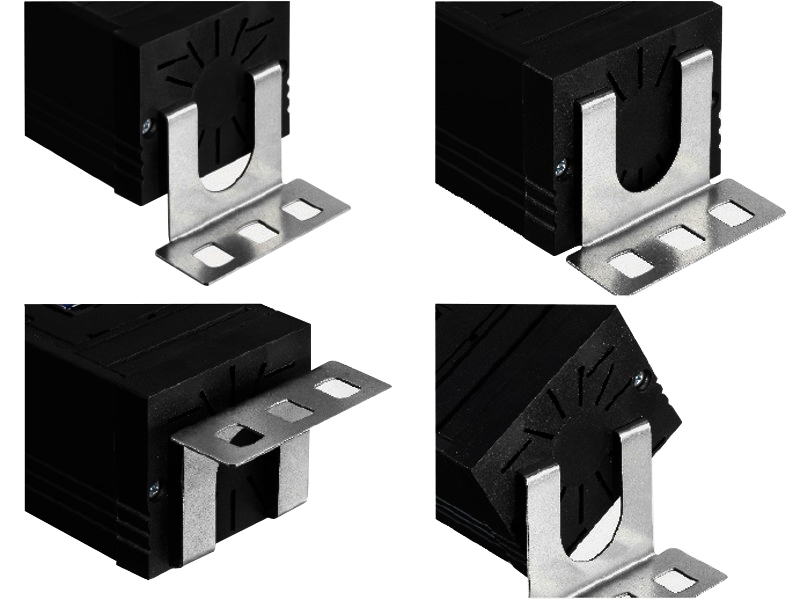

The Bachmann socket strip CONNECTLINE 420.0021 5-way inkl 1x switch and 1 overvoltage protection is variable due to its compact external dimensions, both in the home and in business. The large product family of different sockets offers the optimum solution for every application and is optionally equipped with versions such as USB chargers, overvoltage protection and switches. CONNECTLINE can be flexibly installed in 30 ° increments using the supplied bracket. The length and type of connector can be configured according to customer requirements. Contact us, we're happy to help.
The extremely compact dimensions, the simple design and the numerous product variants make the Bachmann CONNECTLINE a functional tool for power generation in the office, home and other applications.
Technische Details Bachmann CONNECT LINE Schutzkontaktsteckdose 5-fach, 1x Schalter, 1x Überspannungsschutz (420.0022)
- Finish: black
- Dimensions (WxHxD): 406 x 53 x 52 mm
- 5-way socket strip
- 3x socket
- 1x overvoltage protection - DIN EN 61643-11:2013-04
- 1x 2-pole illuminated rocker switch
- Supply: 2.0 m H05VV-F 3G 1.5 mm² with protective contact angle plug
- Protective contact sockets turned through 35 °, with nickel-plated protective contacts and integrated child protection
- Screwed and re-connected
- Plug-and-Play
- Incl. Mounting angle
- Flexible mounting option
Surge protection - according to DIN EN 61643-11: 2013-04; VDE 0675-6-11: 2013-04, type 3, leakage current 6.5 kA, <25 nS. Suitable for 16 A (fuse protection on request), with varistors, temperature fuse, gas detector, optical LED function and failure indicator (also acoustically on request). Mains and frequency filters - according to DIN EN 60939-1: 2011-04; VDE 0565-3: 2011-04 for voltage peaks up to 30 MHz, damping diagram in the data sheet.
| Product sheet: |  [pdf, 535 kb] |
|---|---|

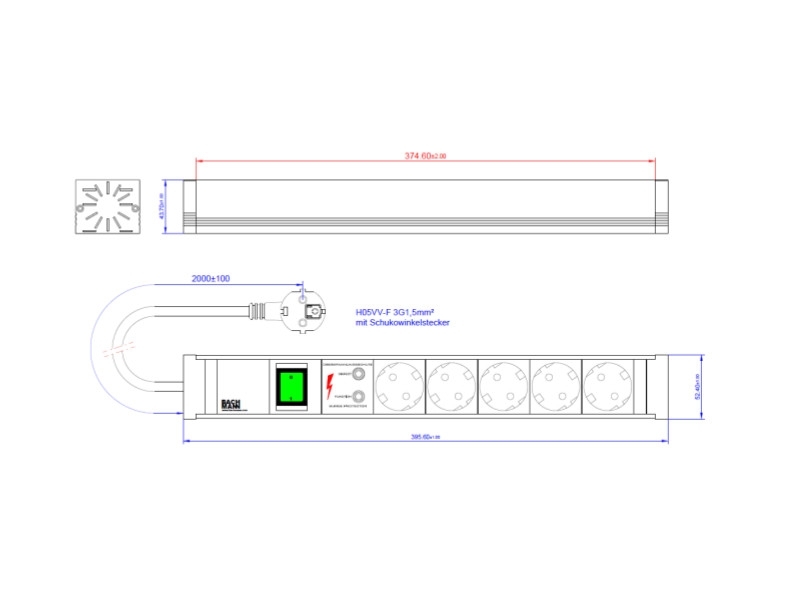

| Technical drawing: | [pdf, 95 kb] |
| RoHS / REACH: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Mains filter: | Yes |
| Number of sockets: | 5 |
| Overvoltage protection: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
