Bachmann CONI Holder for 3-way mounting frame (911.9100)
The Bachmann CONI Holder large (911.9100) is suitable for the stowage of cable excess lengths when plugged in to the CONI mounting frame small.
Bachmann CONI Holder for 3-way mounting frame 911.9100

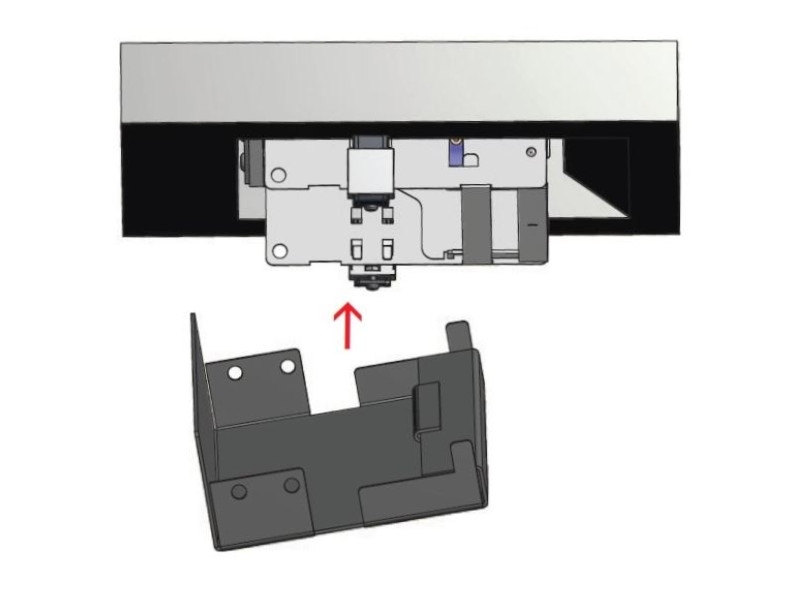

The Bachmann CONI Holder 911.9100 is suitable for optimum mounting on 3-way CONI mounting frames small. The holder allows stowing cable excess length in the inserted state. The cable holder is hooked into the already installed mounting frame by means of the supplied plastic rivets. The additional installation depth of approx. 20 mm is added to the installation depth of the existing frame.

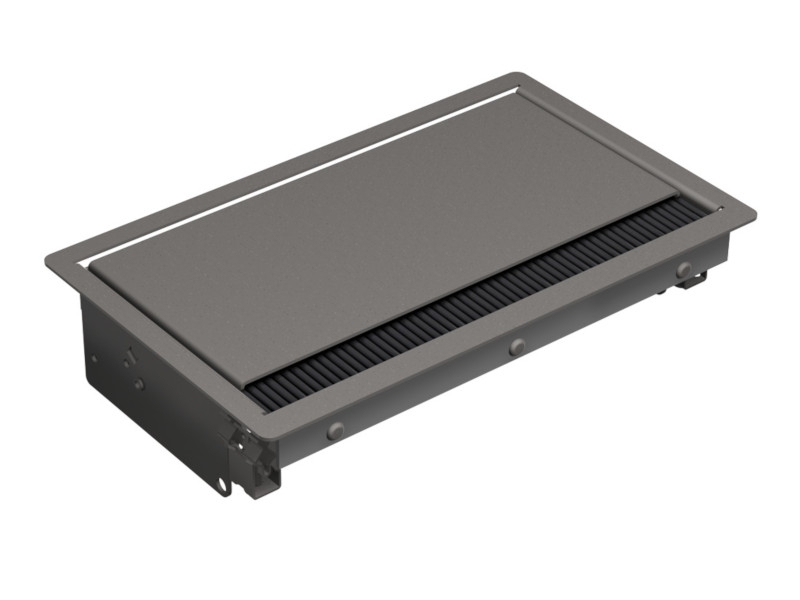

Bachmann built-in frame with low installation depth
The Bachmann CONI installation frames for power strip units are available in short or long versions. The installation depth is 56 mm and is suitable for panel thicknesses from 16 mm. When closed, the furniture surface and CONI form a flat surface - perfect for the office, home office or meeting rooms.
Key features CONI Holder small (911.9100)
- Suitable for: CONI installation frame small
- Material: sheet steel
- Allows storage of cable excess length
- Finish: powdered black, similar to RAL9005
- Installation depth: approx. 20 mm to the mounting depth of the built-in frame
- Easy installation by hooking
- Mounting frame not included
| Product sheet: |  [pdf, 213 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 128 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
