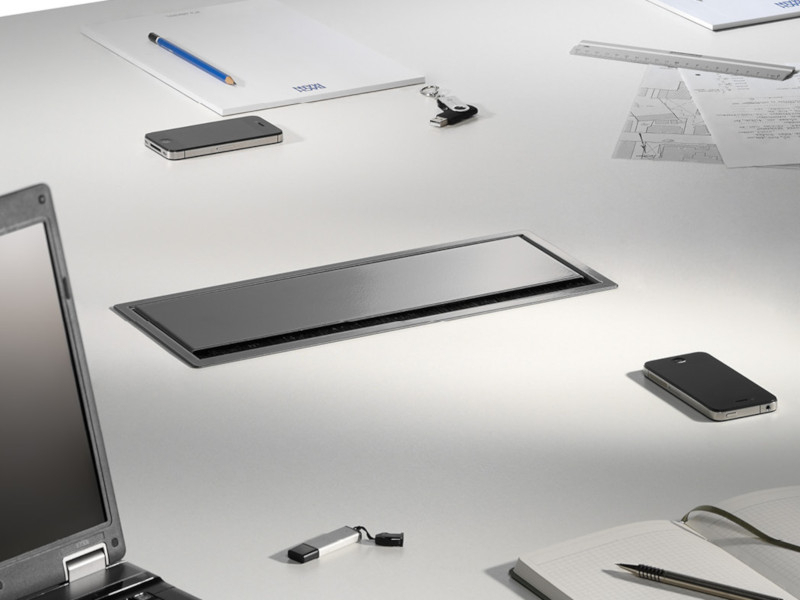

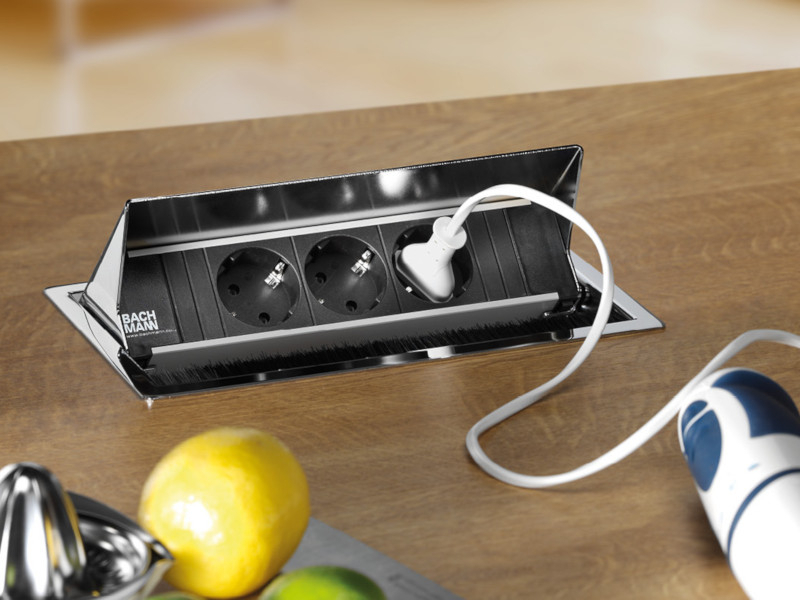

Bachmann CONI built-in frames, short, silver-grey (338.0203)
The Bachmann CONI built-in frame short silver-grey (338.0203) is of the table frame series Bachmann CONI.
Bachmann CONI built-in frames, short in silver-grey 338.0203
Bachmann CONI built- in frames are available in short and long versions. The installation depth is 56 mm, suitable for panel thicknesses from 10 mm. The brush strips can easily be replaced with color and brush strips. Simply remove the built-in frame from the top of the desk or table and unscrew the three re-usable plastic rivets.
Key features Bachmann CONI built-in frames short (338-0203)

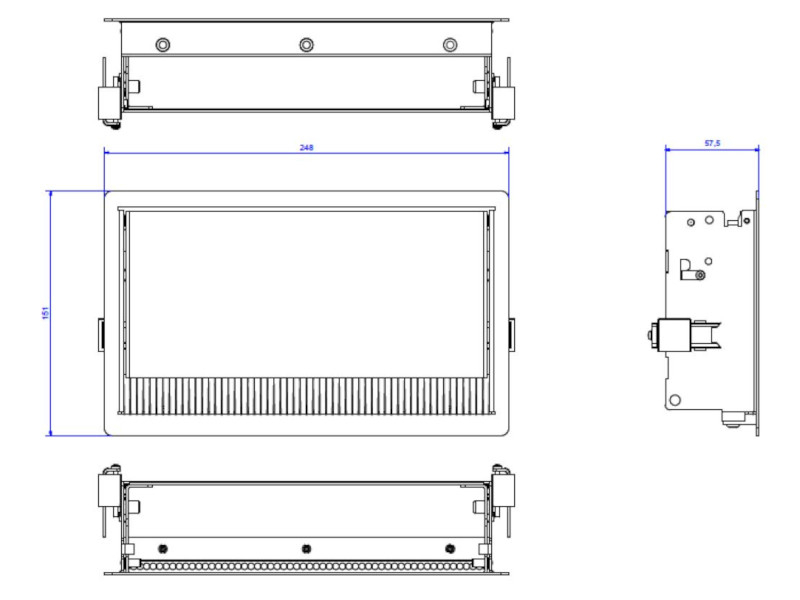

- Outer dimensions: 248x151 mm
- Finish: Silver-grey, similar to RAL 9006
- Installation dimensions: 237x139 mm
- Built-in depth: 56 mm
- Desk or table top thicknesses: up 10 mm
| Product sheet: |  [pdf, 39 kb] |
|---|---|
| Technical drawing: | [pdf, 179 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Installation manual: | [pdf, 181 kb] |
| Warning/safety instructions: | [pdf] |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Anthracite |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
