Bachmann CONI 6-way: 3x custom modules + 3x power socket outlet (912.006)
Article number:
51030088
Manufacturer:
Bachmann
Manufacturernumber:
912.006
EAN:
4016514030088

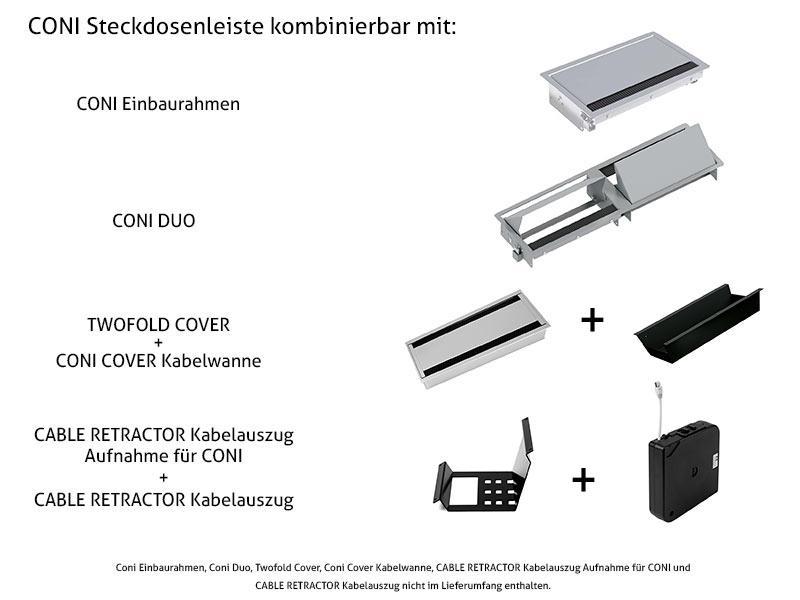

The Bachmann CONI 6-way: 3x custom modules + 3x power socket outlet (912.006) is for the Bachmann CONI built-in frame long version.

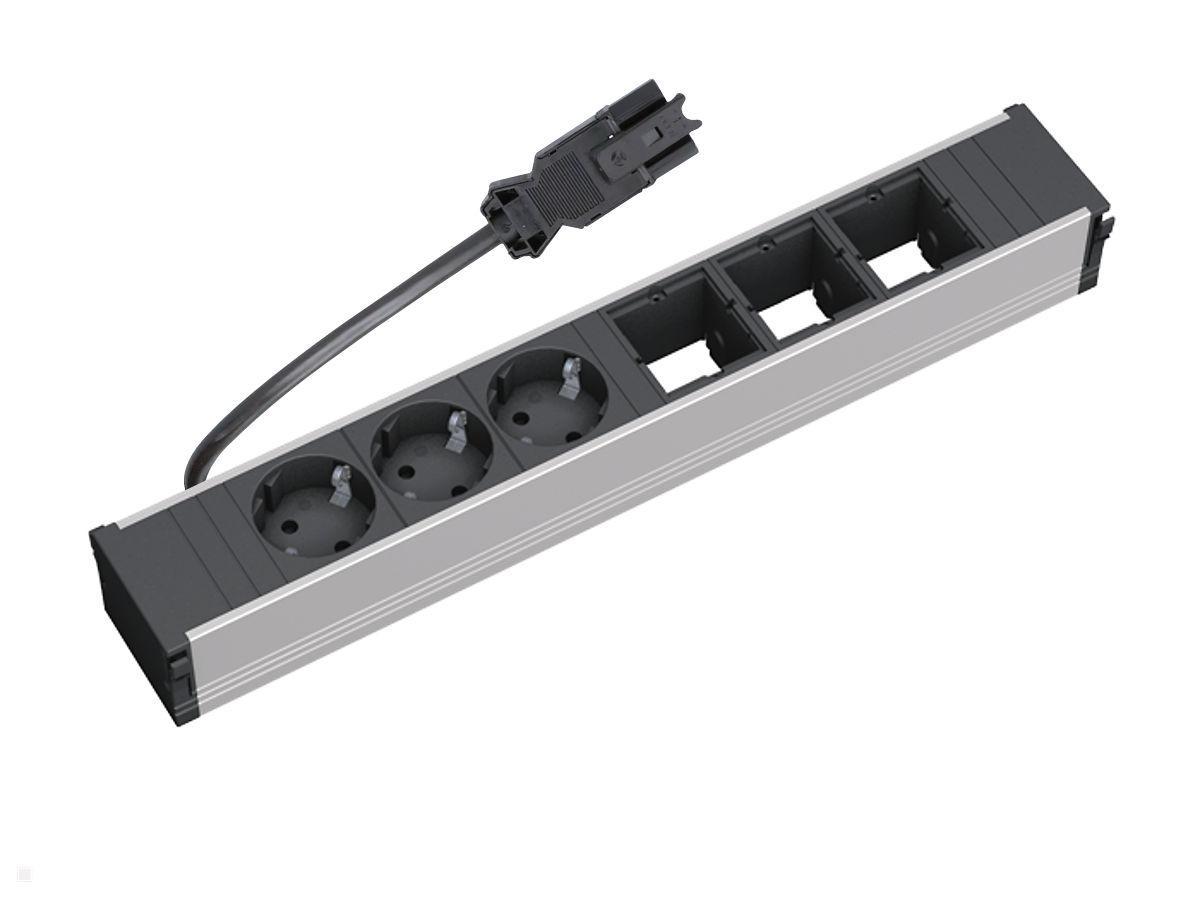

Key features Bachmann CONI 6-way: 3x custom modules + 3x power socket outlet 912.006
- length 6-way, approx. 356 mm
- Anodised aluminium profile
- power input: 0.1m cable and GST18i3 plug
- 3x black socket outlet with earthing contact, set at 35°
- 3x custom modules
- Power cables and custom modules are available separately
| Product sheet: |  [pdf, 68 kb] |
|---|---|
| Technical drawing: | [pdf, 119 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 741 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
