Bachmann CONFERENCE 4-way, 1x USB, 1x Custom, black (909.0056)
The Bachmann CONFERENCE 4-way with 1x USB doublecharger and 1x custom module in black (909.0056) is the new solution for power and data supply in conference rooms.
Bachmann CONFERENCE 4x socket black 909.0056

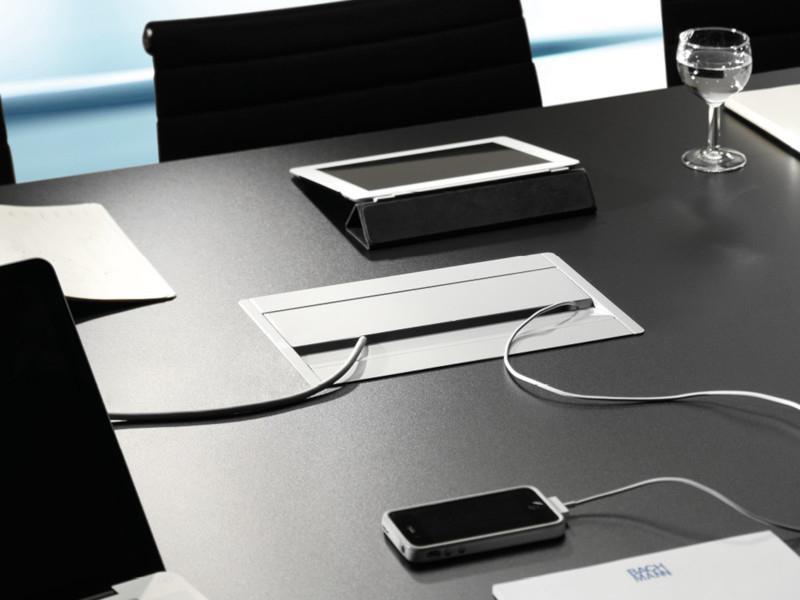

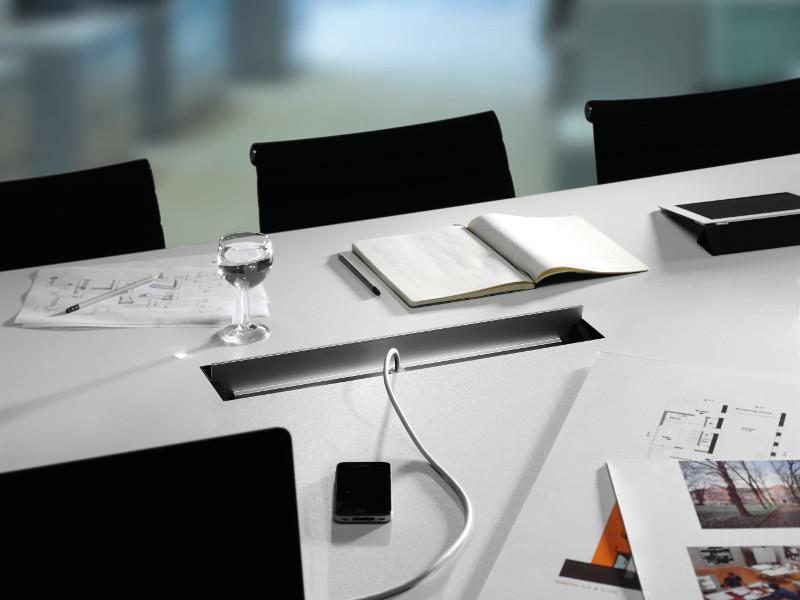

With its completely recessable cover, power and data can be conveniently accessed from any seat around the table. The balanced geometry of Bachmann TOP FRAME fits elegantly into the tabletop and allows it to be fitted with high-quality veneers.

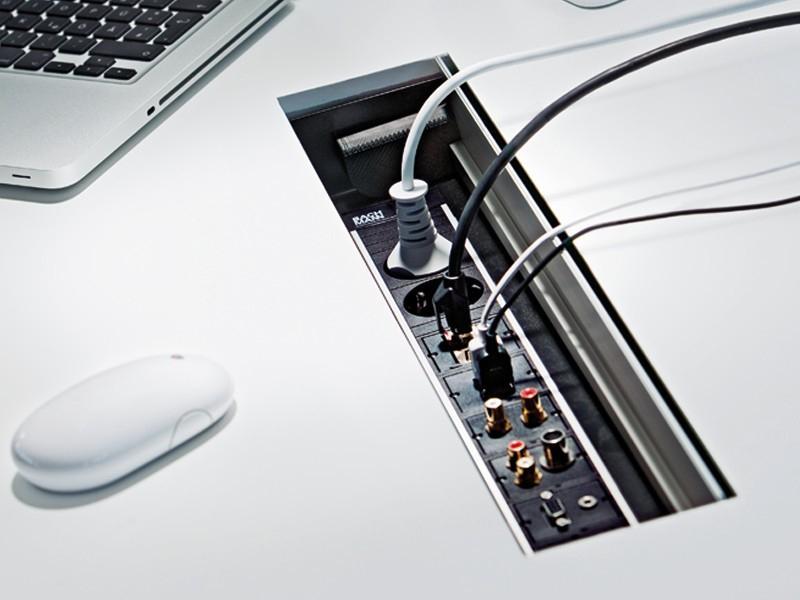

Bachmann TOP FRAME is also elegantly simple to open: just press lightly with a finger and it opens and closes again – silently. With its surround frame, Bachmann TOP FRAME is also suitable for retrofitting. The power strips can of course be interchanged in a flash and can be equipped with Bachmann’s flexible custom modules.
Bachmann TOP FRAME is available in various versions:
In EV1 anodised aluminium or powder-coated in RAL 9006. Other surface finishes are available on request. A veneer of up to 0.6 mm can also be glued to the flap without the dimensions of the cut-out having to be changed. The power strip clips into the installation frame without tools. There is a short version with 4 modules and a long version with 8 modules to suit both Bachmann TOP FRAME solutions.

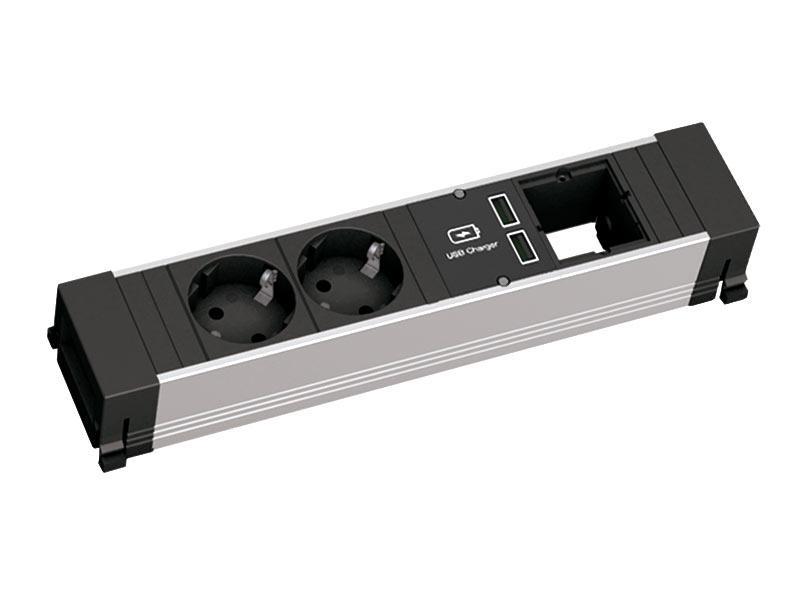

Key features Bachmann CONFERENCE 4x socket black 909-0056
- 4-fold socket strip Bachmann CONFERENCE / TOP FRAME
- Black anodised aluminum profile
- Dimensions (L x W x H): approx. 262.6 x 52.4 x 44 mm
- 2x earthing contact outlets with child protection, black rotated by 35°
- 1x USB Double Charger (5.2V / 2,15A)
- 1x custom module
- Power input: GST18i3 plug
- Power output : GST18i3 socket
| Product sheet: |  [pdf - german] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Anthracite |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
