Bachmann CM USB charger with USB-A and USB-C, white (917.2271)
Custom module with USB-A and USB-C charger
The powerful custom module with USB-A and USB-C charger from Bachmann in white fits perfectly into the Pure White series. It is suitable for charging all common smartphones and tablets such as Apple iPads or Samsung Galaxy Tabs with USB-A (18W) or USB-C (22W) technology and all without the hassle of external power supplies. Thanks to integrated USB Power Delivery (PD) and Qualcomm® Quick Charge™ fast charging is no longer a problem. The USB charger charging station is particularly suitable for retrofitting BACHMANN products with a custom module mount, e.g. Bachmann PIX, CONI, POWER FRAME, DESK 1 or DESK 2 and more. The Bachmann USB Charger module 917.2271 draws power via the Wieland GST18i3 connector system. The USB charger offers protection against overcharging, overvoltage, short circuit and overheating. The custom module is simply attached to the custom module mount with two Torx T6 screws.
Key features Bachmann Custom Module 917.2271
- Color white (black cable)

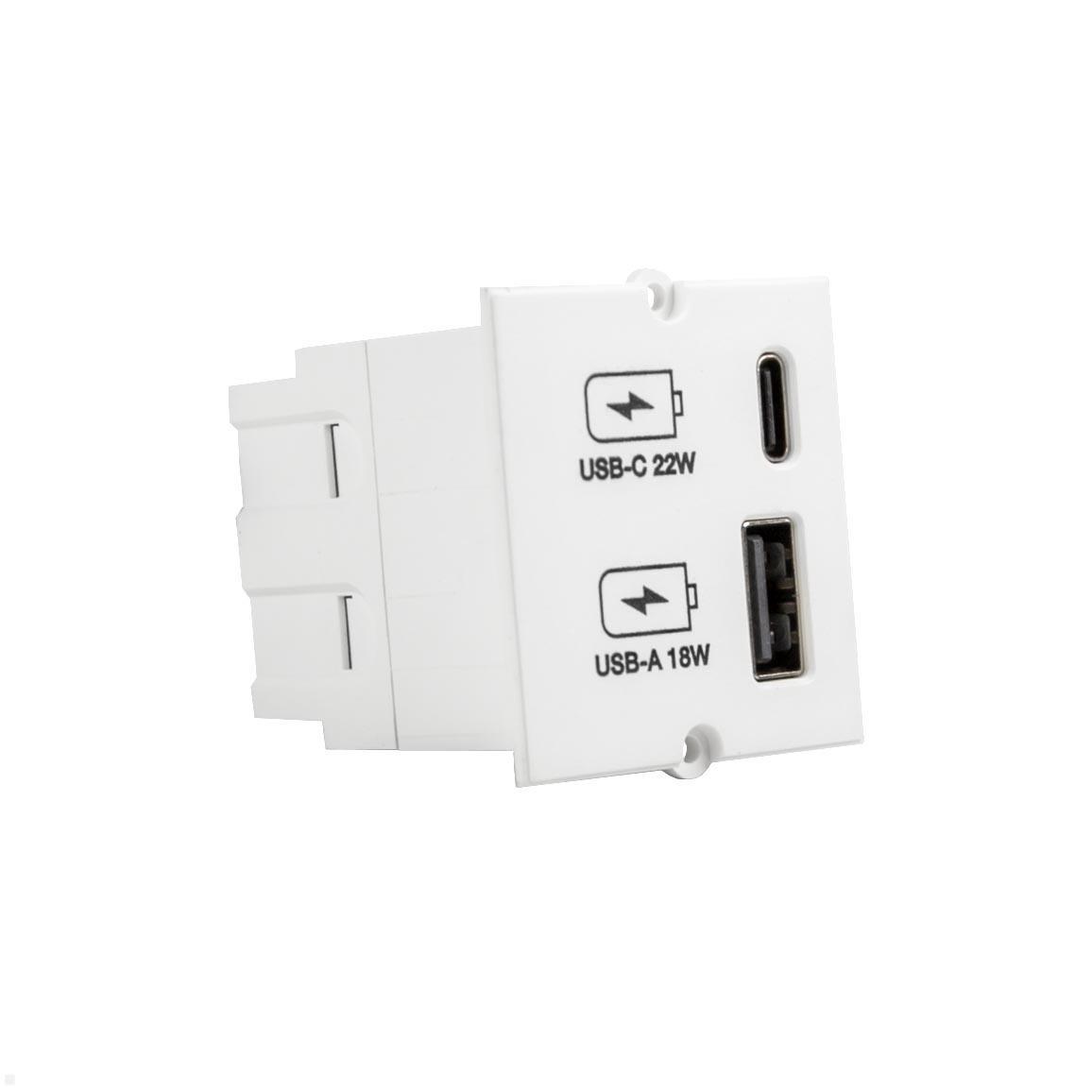

- Front:
1x USB-A socket 18W

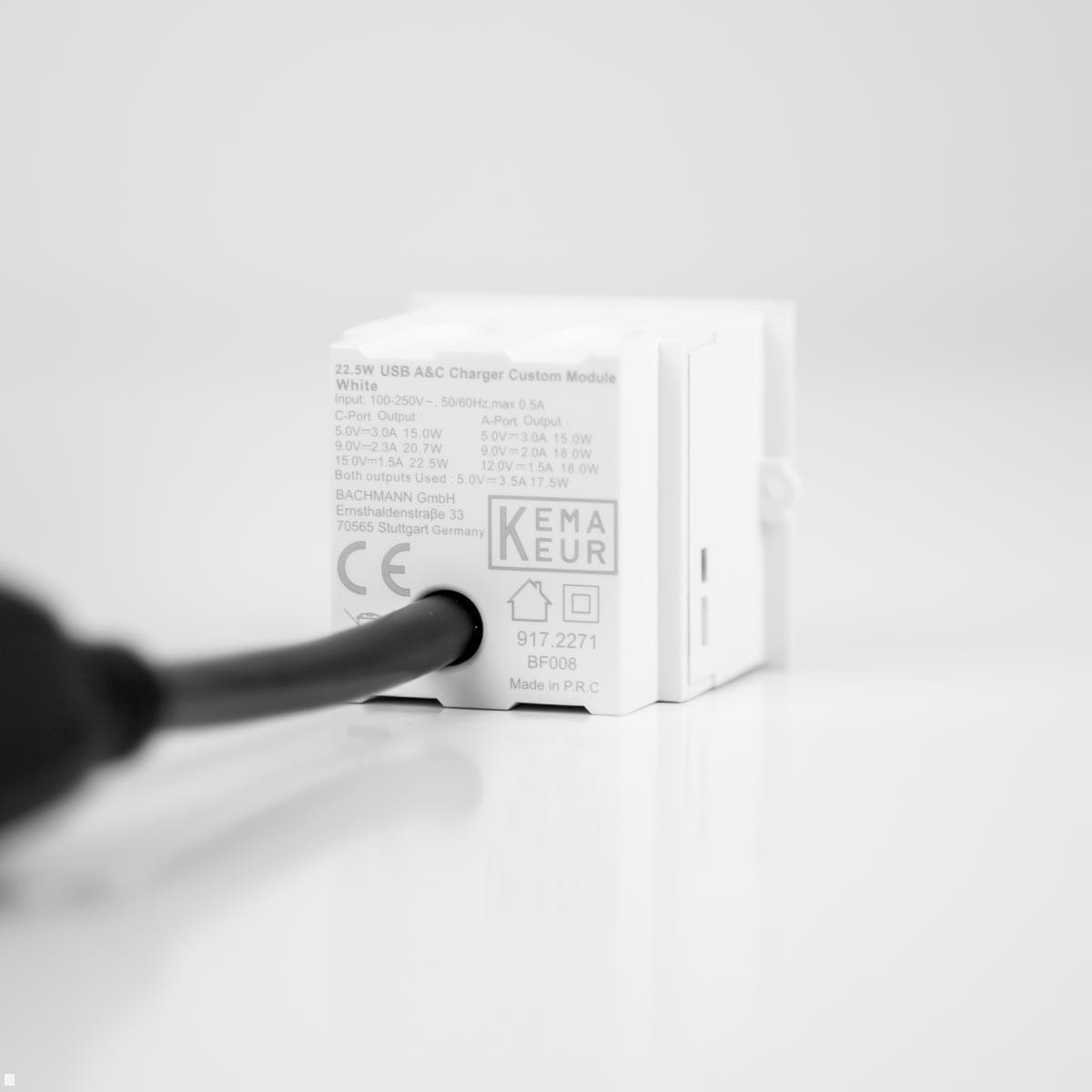

1x USB-C socket 22W - USB-A socket: 5V DC/3, 0A; 9VDC/2.0A; 12V DC/1.5A
- USB-C socket: 5V DC/3.0A; 9VDC/2.3A; 15V DC/1.5A
- C+A socket: 5V/3.5A
- Input voltage: 250 V

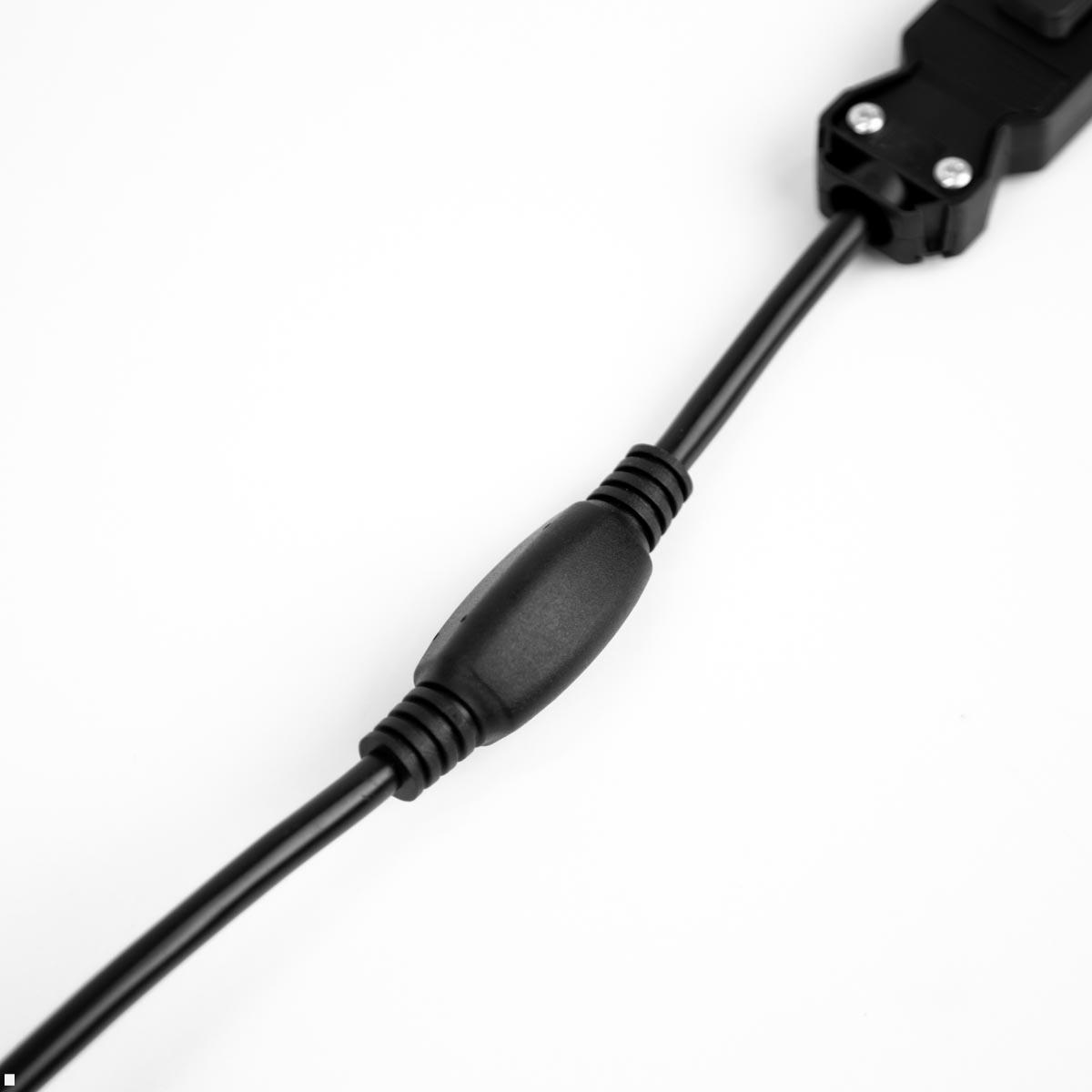

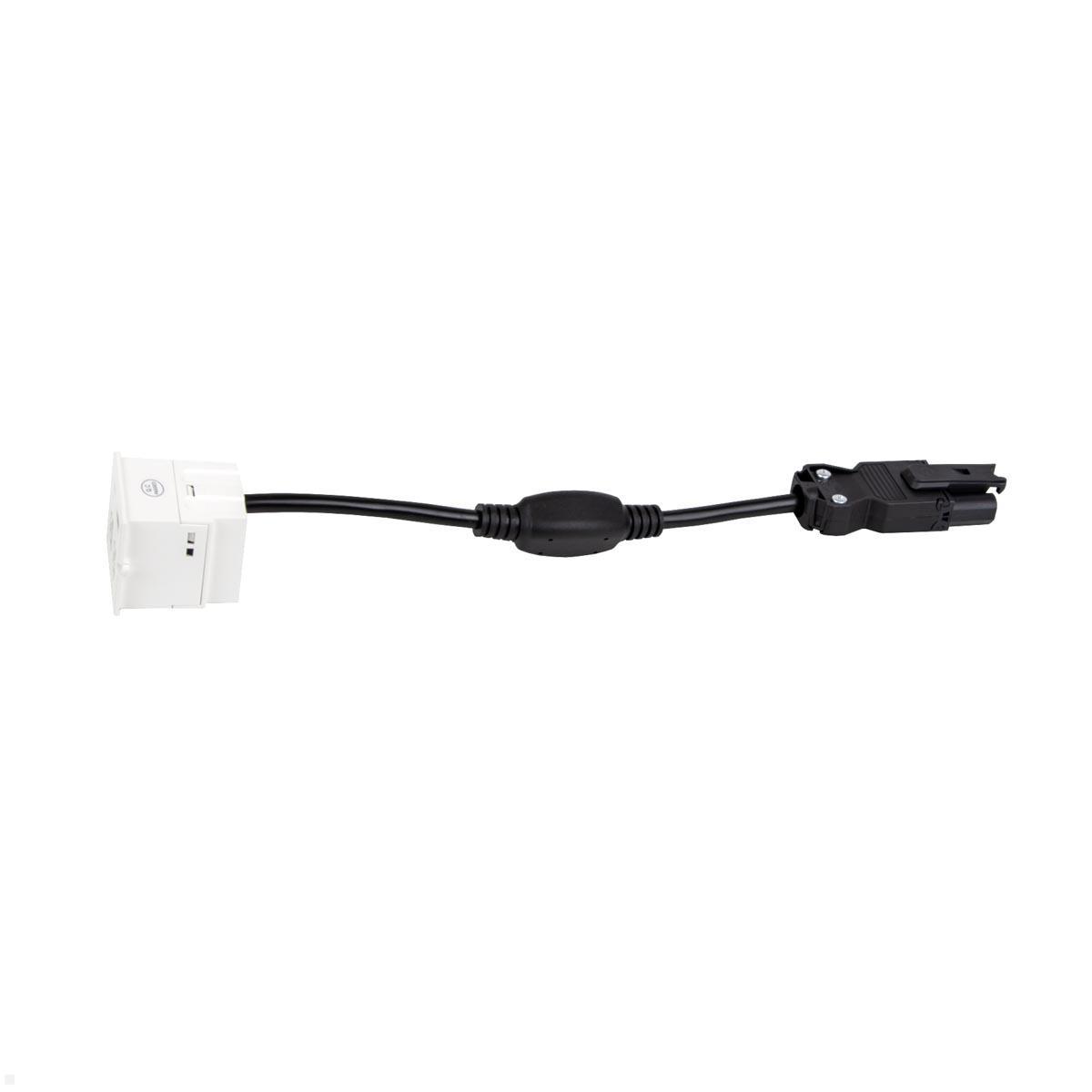

- Rear: GST18i3 plug with approx. 0.2m cable
- Charging standards: Power Delivery USB 3.1 PD, Qualcomm Quick Charge USB QC 3.0
- Integrated current limitation
- Integrated overtemperature protection
Bachmann USB charging station advantages at a glance:
- USB-A and USB-C charger in one
- Latest USB-C charging technology
- Fast charging via PD & QC
- Individual assembly options
- Future security through exchangeable modules
- Easy and flexible installation
TIP:

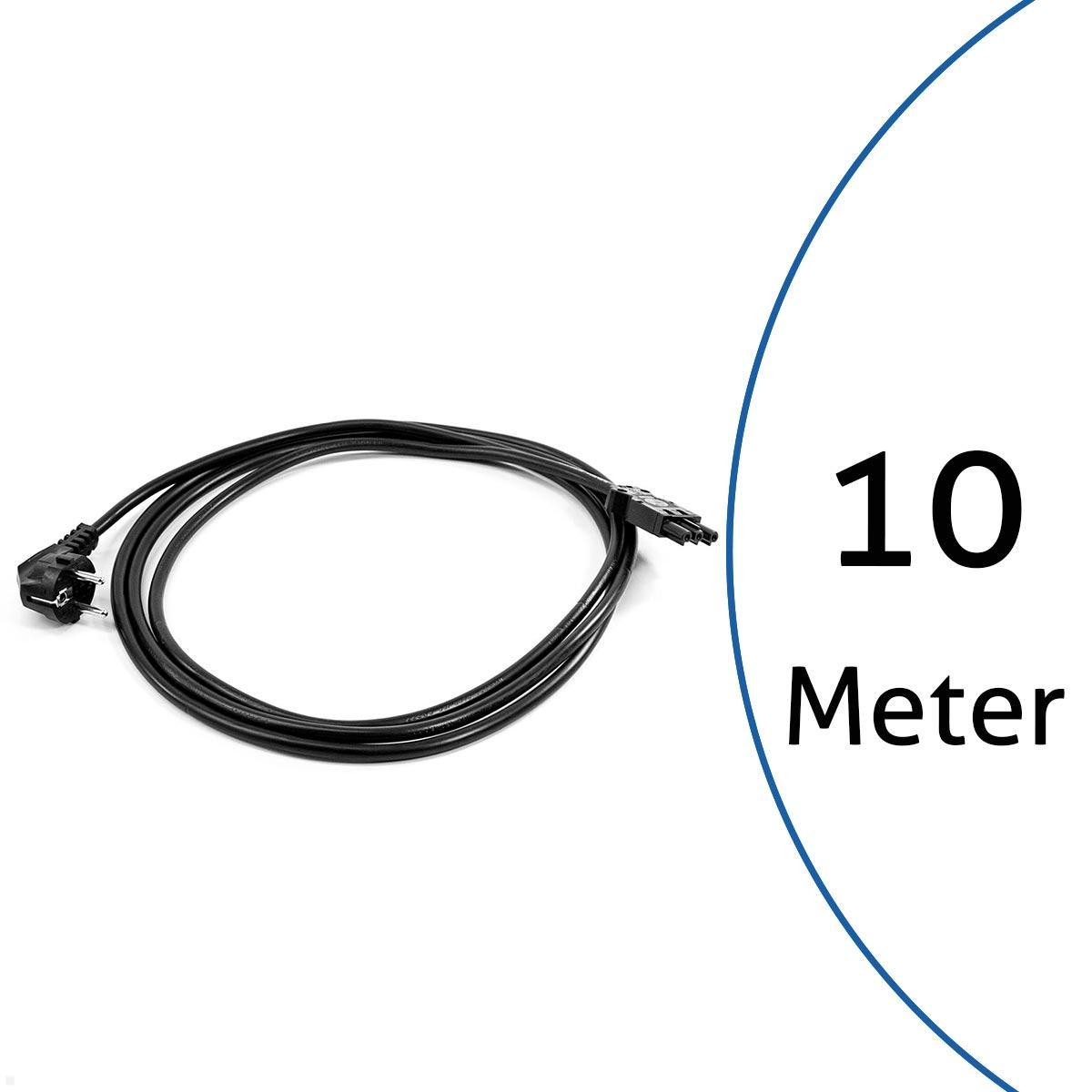

When installing in an existing desk connection panel, we recommend the distributor block 375.101. A second supply cable is not required, you may need a GST18 device extension.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x Custom modul USB Charger |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | White |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
