Bachmann CM Mini Port Replicator USB-C with connection cable (917.2290)
The Bachmann 917.2290 CM Mini Port Replicator allows you to work on your desk with almost no cables and enables quick access to interfaces. The laptop is connected to the replicator via USB-C, which is equipped with 2 x USB-A, 1 x network and 1 x mini display port. A USB-C charging adapter and cable are included in the scope of delivery.
Port replicator for socket strip / connection panel

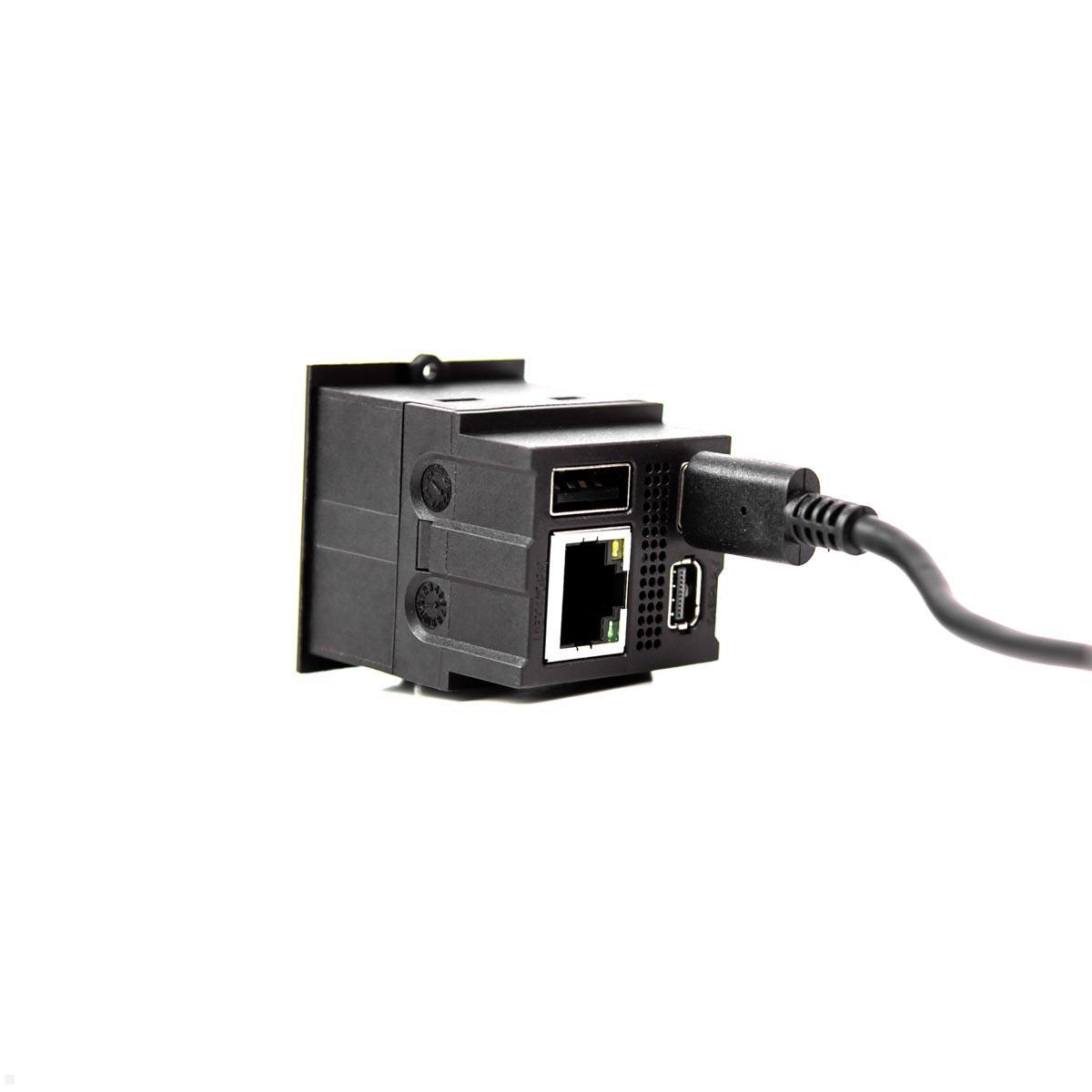

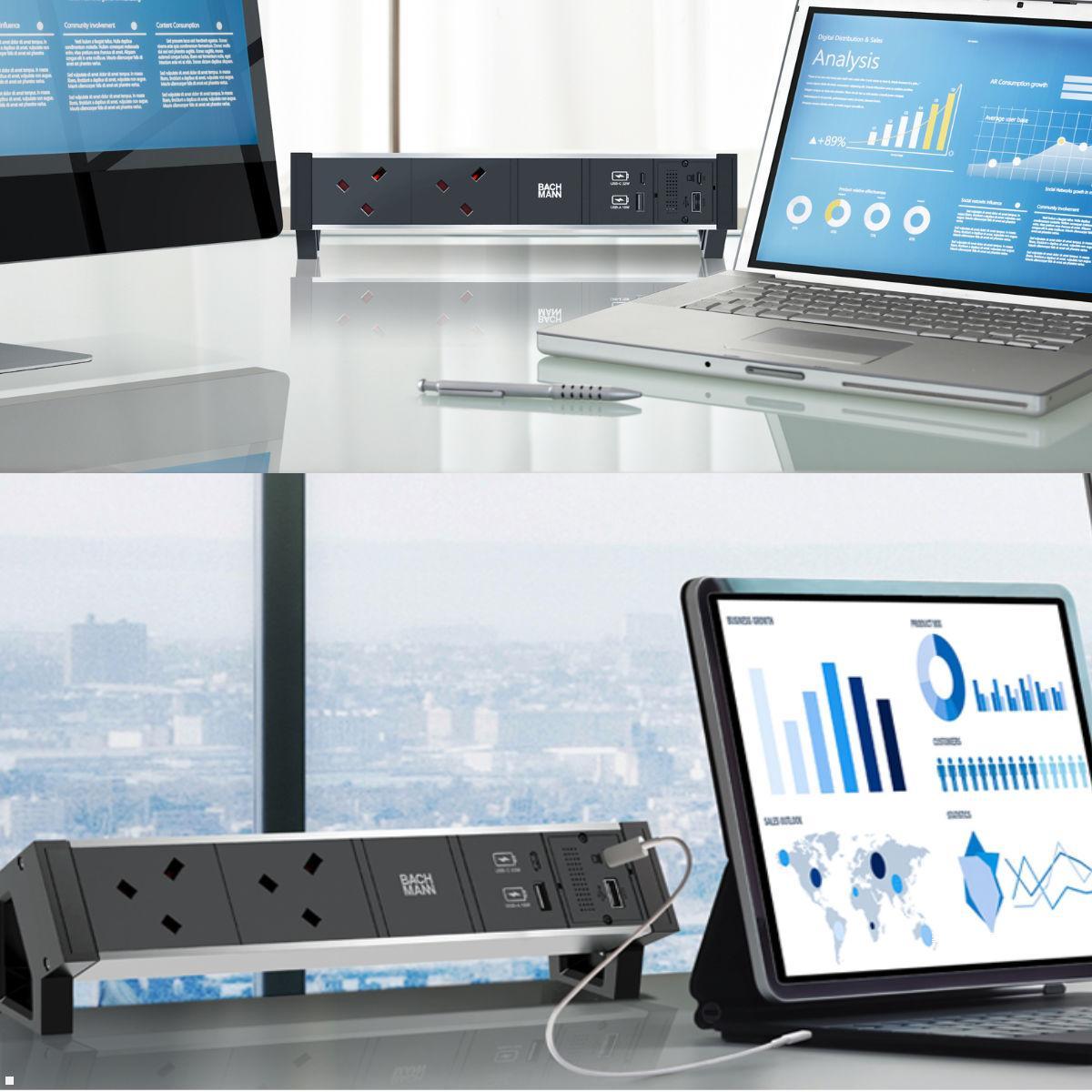

The Bachmann Custom Module Mini Port Replicator (917.2290) connects your USB -C-ready notebook with your displays, devices and wired networks. The advantages of this mini replicator are that cables and extensions remain away from the work surface and that it is particularly easy to assemble. It integrates neatly into your Bachmann Desk, Power Frame or your Conisocket strip and bundles everything that a notebook/laptop needs, whether it's an internet connection or power supply or screen connection, the entire arrangement of the desk can be used with just one cable. Your workspace stays clean and organized. On the back of the USB Replicator Port are the Mini Display Port, network and 2x USB-A connections for additional devices such as a mouse or headset. The entire system is Plug&Play. The Mini Port Replicator is powered via USB-C, either directly via USB-C or via a power adapter. It is ideally suited for open-plan offices, individual offices, for huddle rooms or meeting areas and communal areas. In particular, it facilitates the use of a desk by changing users as part of Desk Sharing. The scope of delivery includes the CM Mini Replicator with the USB-C charging adapter and connection cable, so you can power your replicator directly.Key features:
Bachmann Replicator:
- USB Type C PD 2.0 up to 100 W (20 Vcd/3.0 A)
- 2 x USB Type A data (5 V 500 mA max)
- Mini Display Port 1.2 (UHD 3840 x 2160 @ 60 Hz)
- Ethernet 100 Mbps RJ45 socket
- Power input USB type C up to 100 W
- Dimensions Mini Port Replicator: 3.7 cm x 4.1 cm

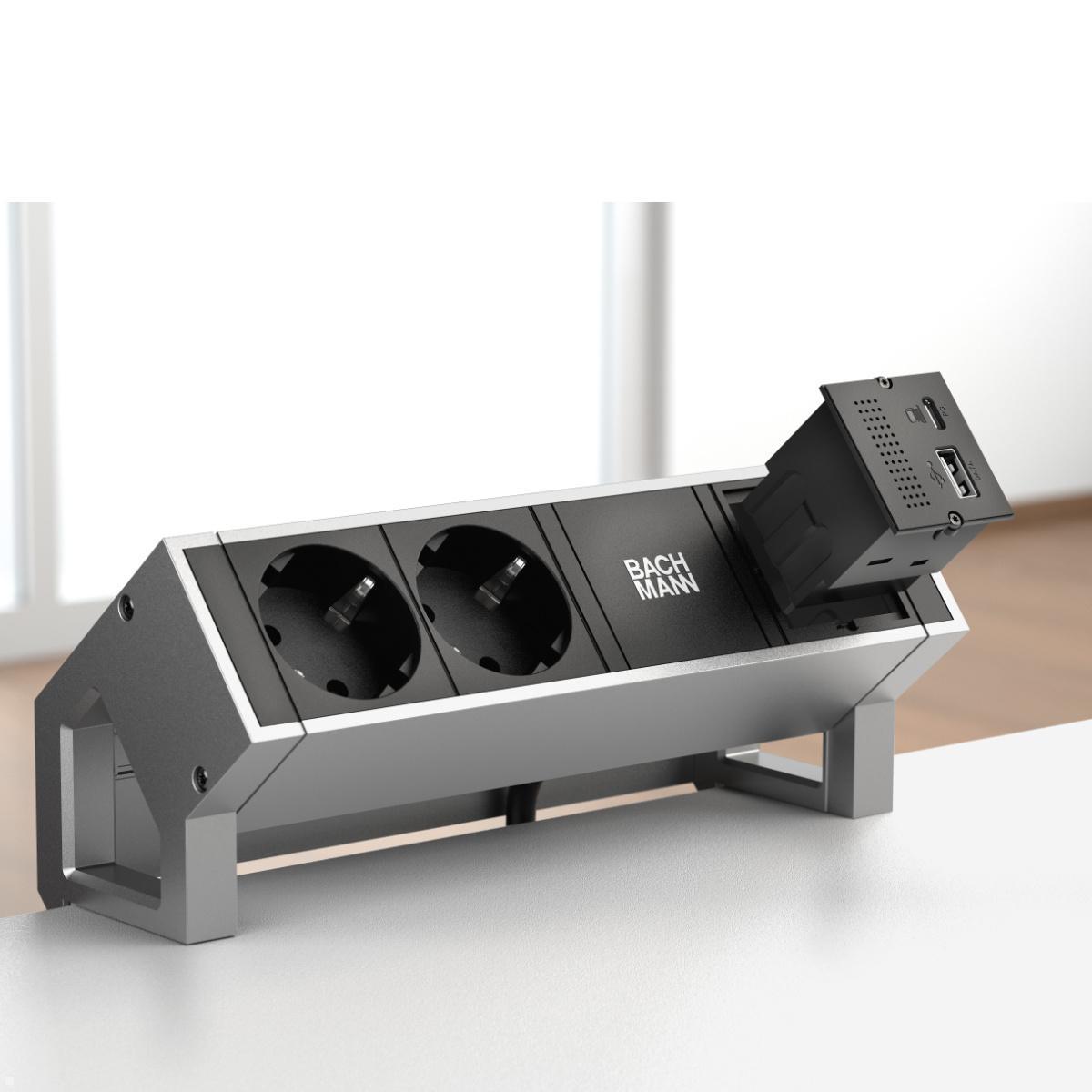

- In almost all Bachmann < strong>Desk connection panels can be integrated (e.g. Desk2, PIX, POWER FRAME and Coni Duo)
- Incl. 2 screws and assembly instructions
- Colour: black
Bachmann USB-C charging adapter:
- Charging adapter USB-PD 65W with USB type -C plug and breakout cable 1.5 m
- Input: AC 100V-240V~/1.5A /50/60Hz
- Output Type-C 5V~3A / 9V~3A / 12V~3A / 15V~3A / 20V~3.25A
- Colour: black

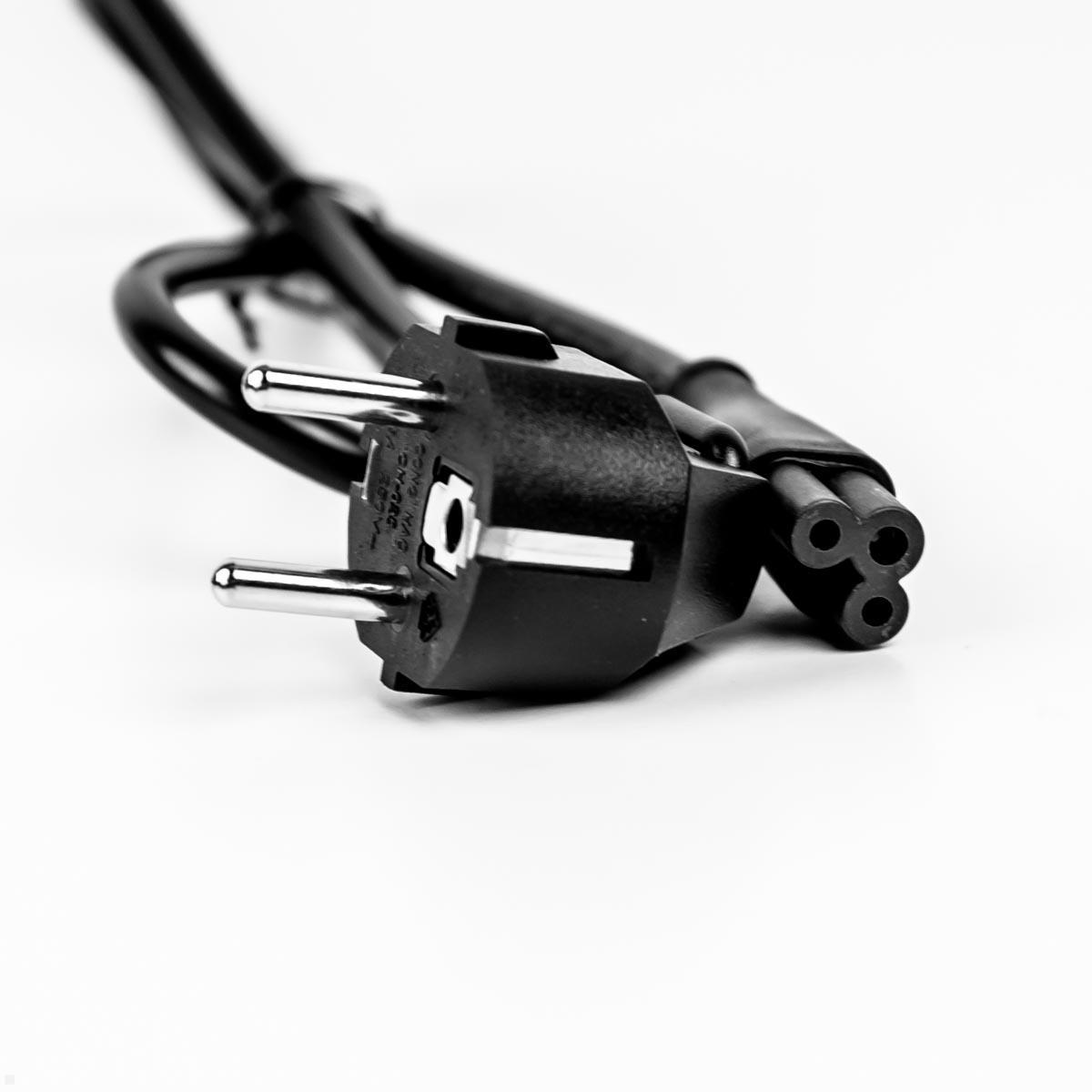

Bachmann mains connection cable for the charging adapter:
- Cable for charging adapter IEC C5 socket to CEE7/7 plug
- Side 1: BS13A plug
- Side 2: IEC C5 socket
- L¨ Length 1.0 m H05VV-F 3G0.75 mm²
- Colour: Black

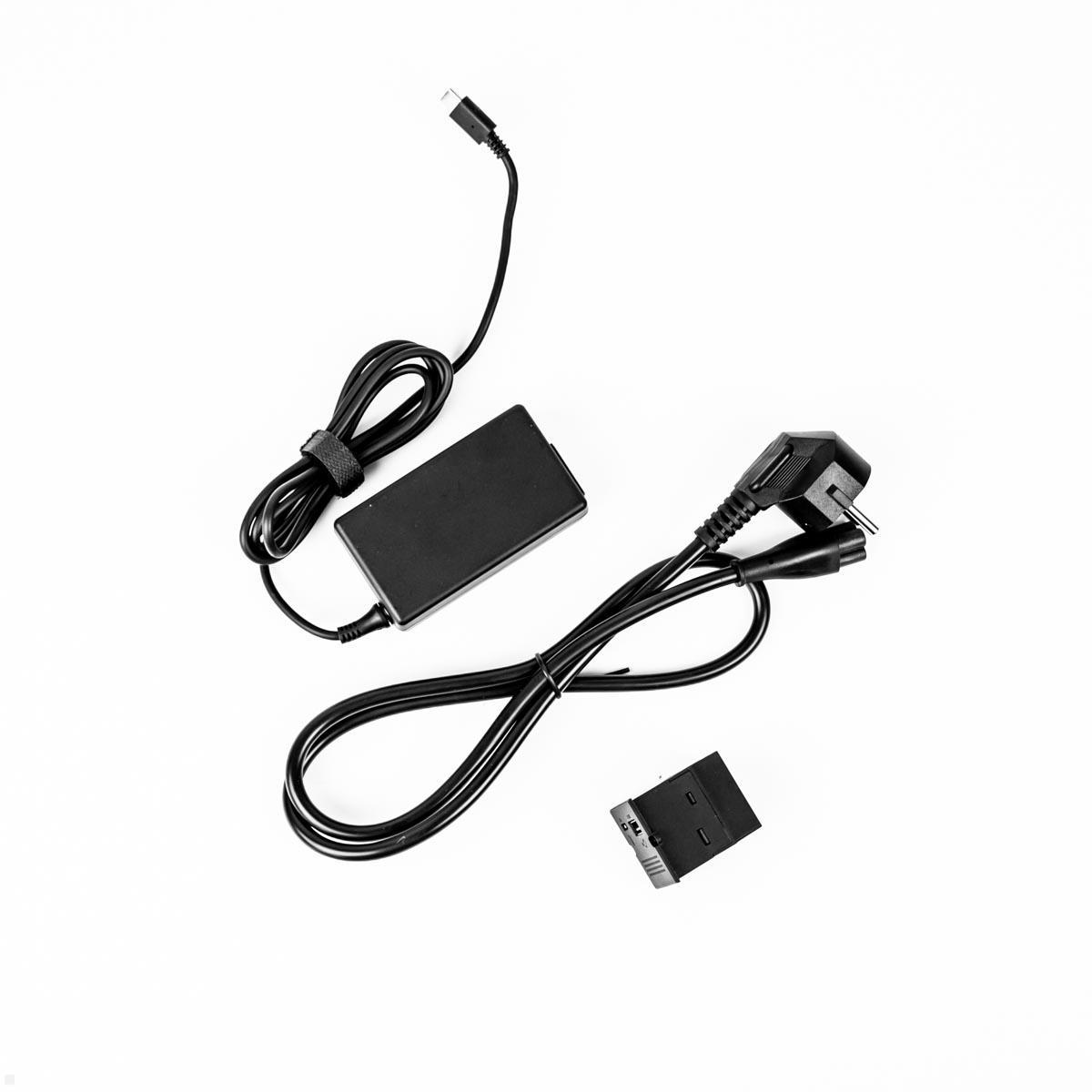

The scope of delivery includes: 1x CM Mini Port Replicator, 1x charging adapter with USB-C plug , 1x connection cable with CEE7/7 plug and 1x assembly instructions.
| Product sheet: |  [pdf] |
|---|---|

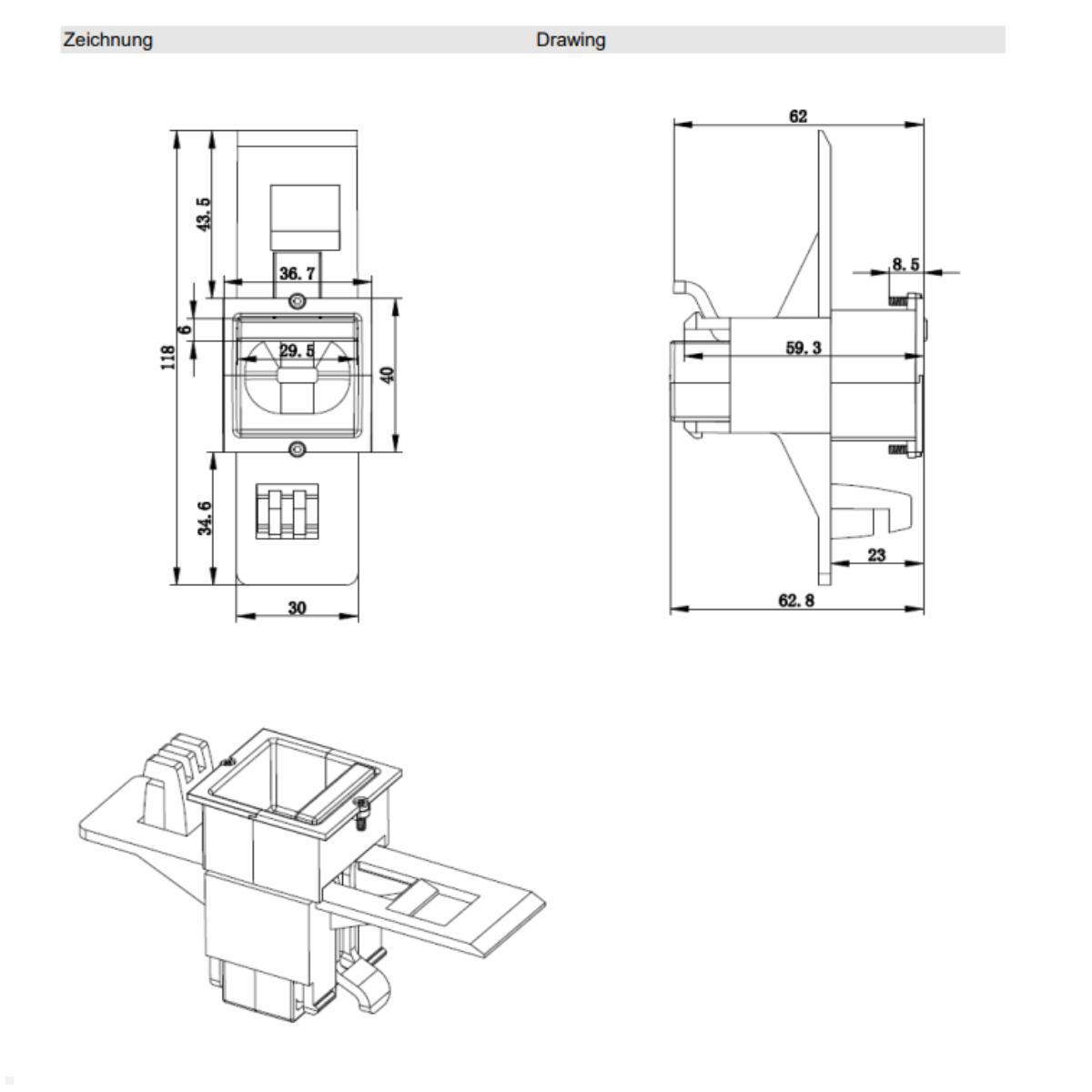

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 150 x 100 x 100 |
| Scope of delivery: | 1x CM Mini Port Replicator, 1x charging adapter USB-C, 1x adapter cable with connector, 1x assembly instructions |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
