Bachmann CM 1x USB-C 1x USB-A charger (917.227)
The new Bachmann 917.227 custom module with 1x USB-C charger with 22W and 1x USB-A charger with 18W combines a USB-A and USB-C port in a unique way. It is suitable for charging smartphones, tablets and other electronic devices with USB-A or the latest USB-C technology. The USB charger is simple and flexible and also suitable for retrofitting and upgrading existing installations.
USB-A charger and USB-C charger
Charging mobile devices is incredible easy with the powerful and space-saving Bachmann custom module 1x USB-A charger, 1x USB-C charger: It is suitable for charging all standard smartphones and tablets such as Apple iPads or Samsung Galaxy Tabs with USB-A or the latest USB-C technology, and all without the need for annoying external power supplies. Thanks to integrated USB Power Delivery (PD) and Qualcomm® Quick Charge™, fast charging is no longer a problem.

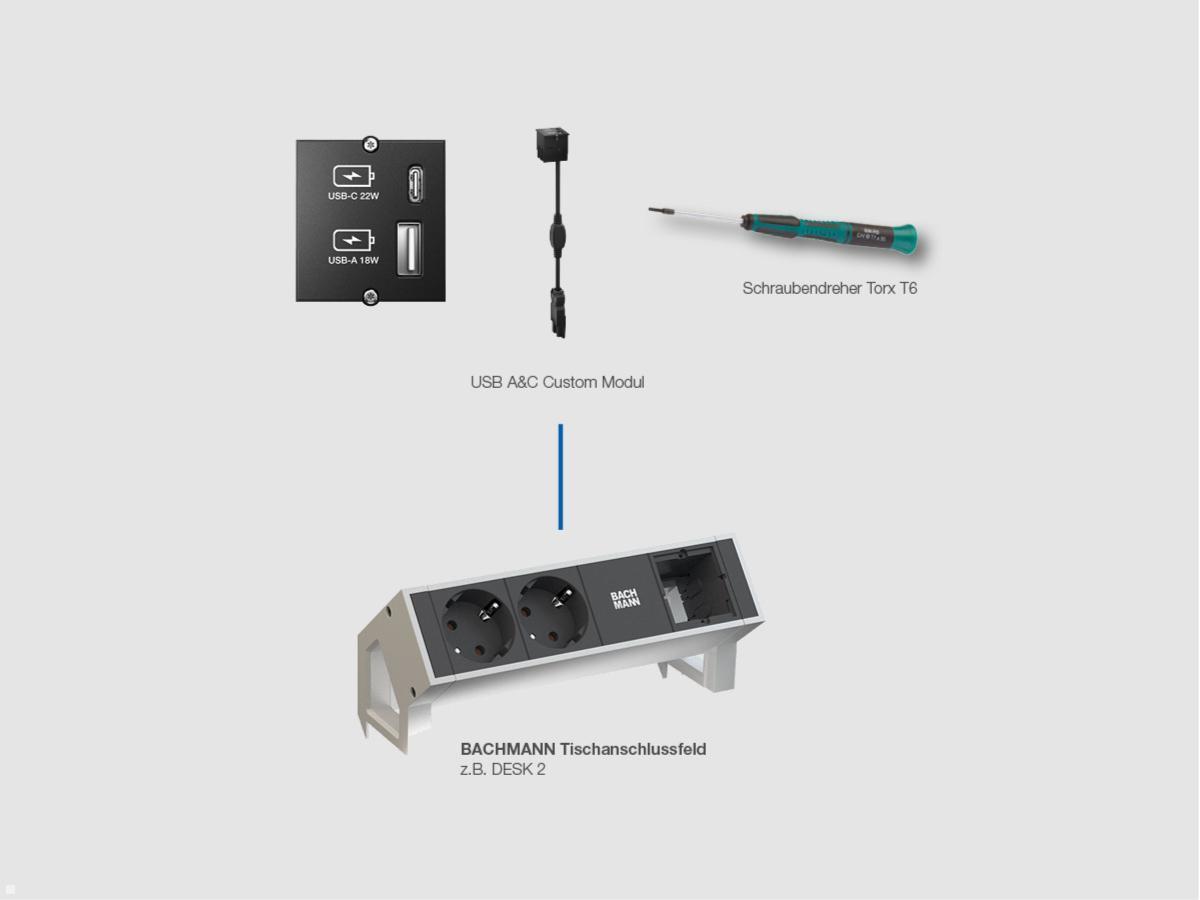

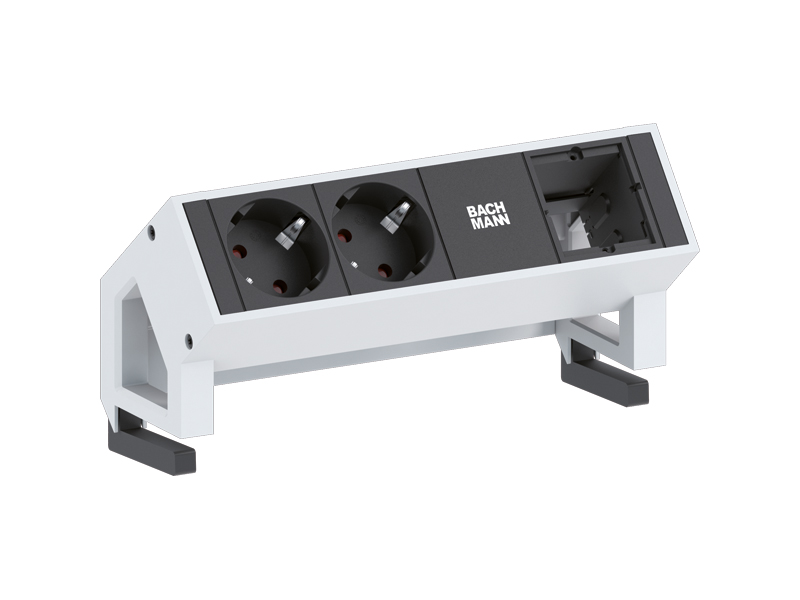

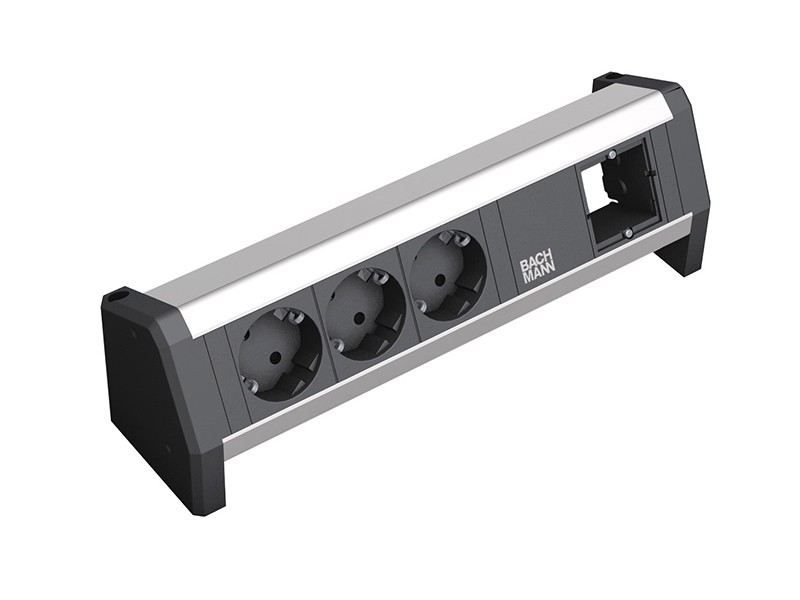

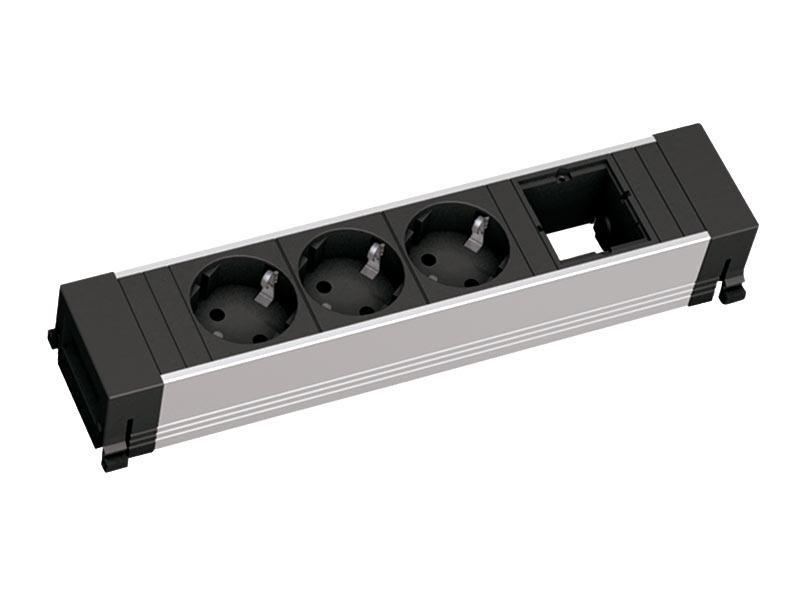

The universal and flexible 22W charging station as custom module is especially suitable for retrofitting BACHMANN products with custom module holder, like e.g. Bachmann CONI, POWER FRAME, DESK 1 or DESK 2 and others. This means that products can now also be equipped with a charging variant where this was previously not possible due to space limitations.
USB charger charging station
The Bachmann USB charger module 917.227 draws its power from the Wieland GST18i3 device connector system. As standard, the USB charger comes with protection against overcharging, overvoltage, short circuit and overheating.
Key features Bachmann USB-A and USB-C charger 917.227

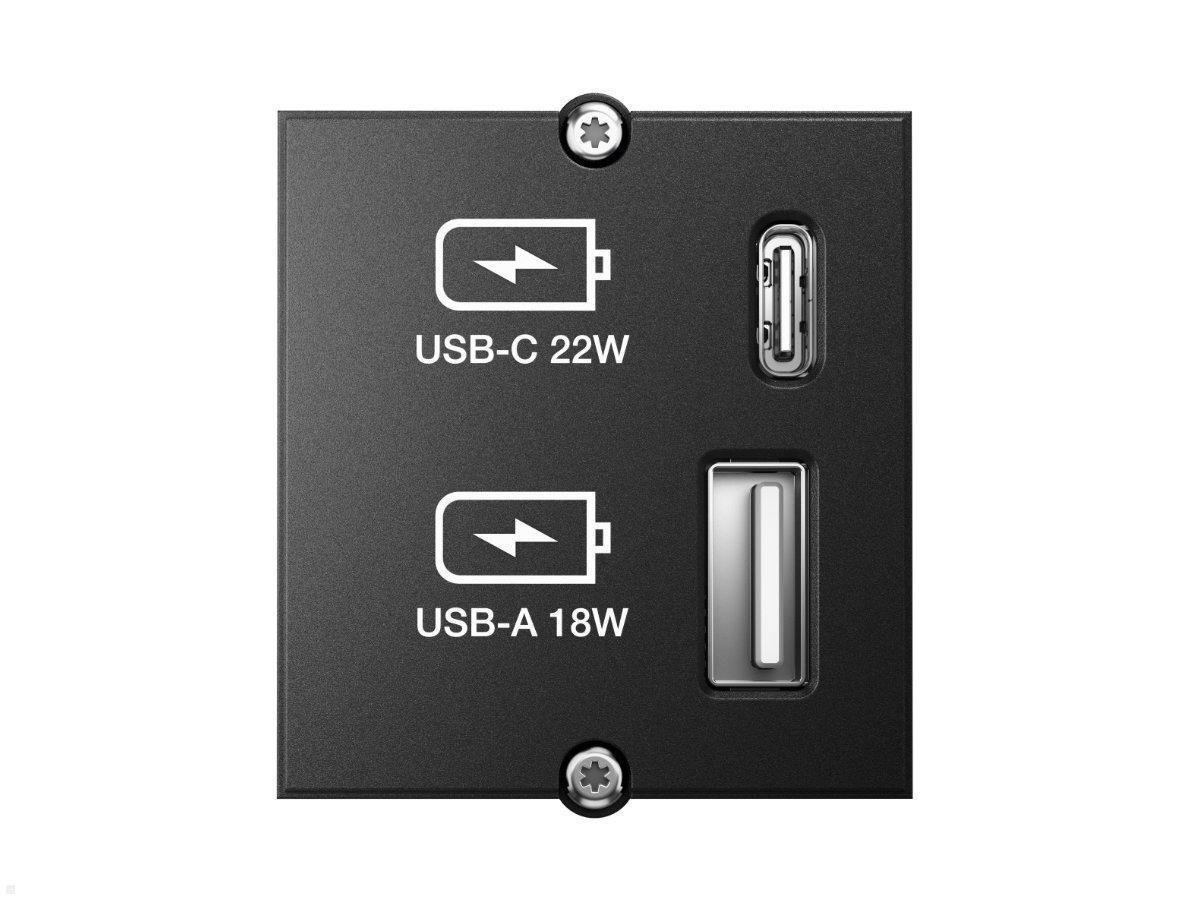

- Front:
1x socket USB-A 18W
1x socket USB-C 22W - A socket: 5Vdc/3.0A; 9Vdc/2.0A; 12Vdc/1.5A
- C socket: 5Vdc/3.0A; 9Vdc/2.3A; 15Vdc/1.5A
- C+A socket: 5V/3.5A
- Input voltage: 250 V
- Front: 1x socket USB-A 18W; 1x socket USB-C 22W

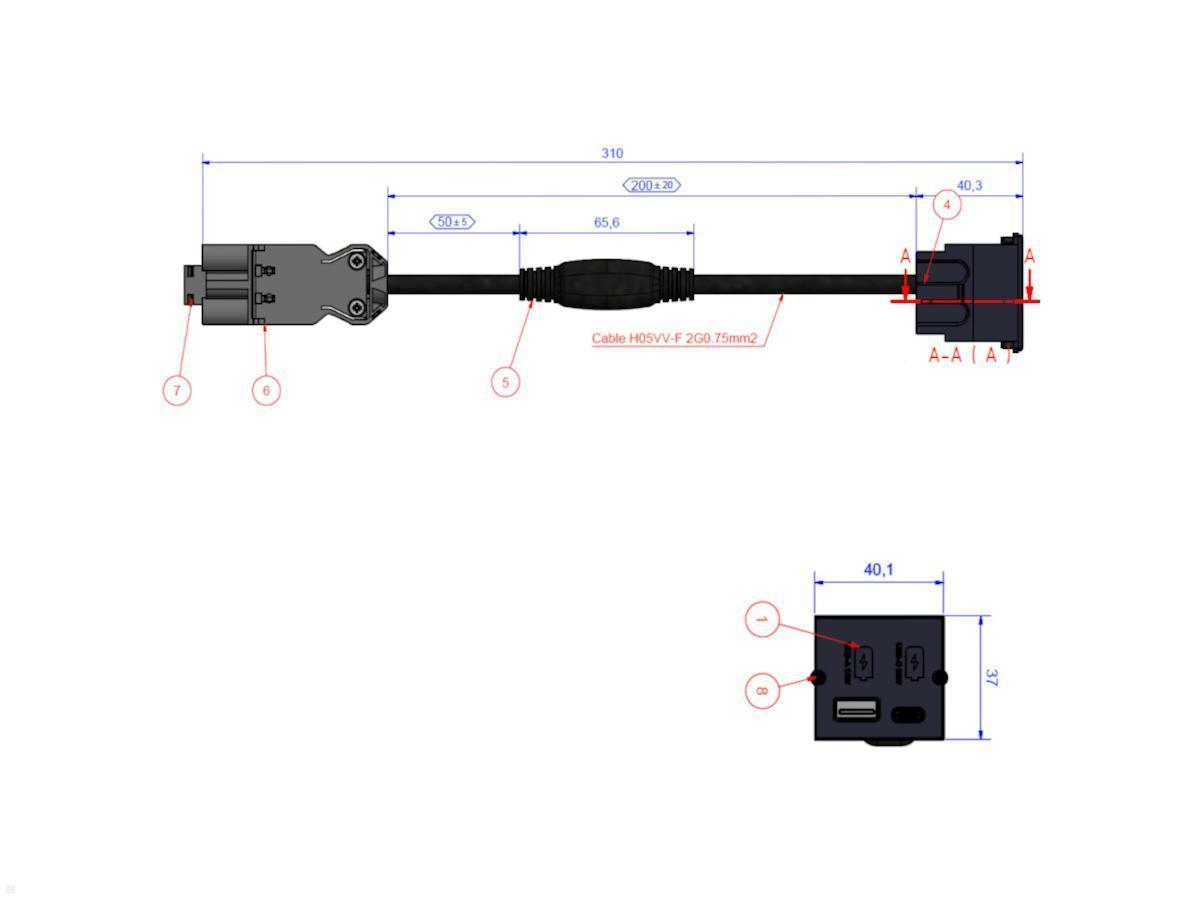

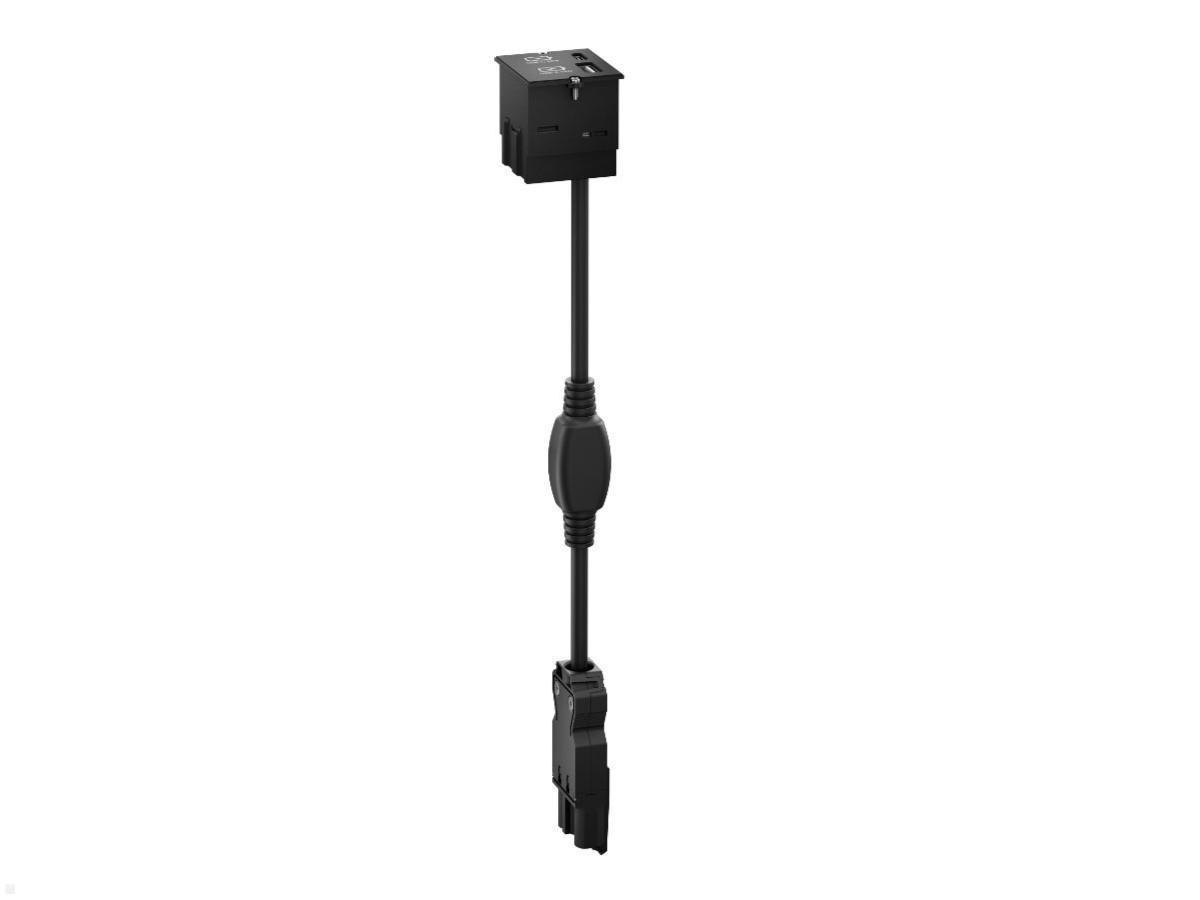

- Rear: GST18i3 plug with approx. 0.2m cable
- Charging standards: Power Delivery USB 3.1 PD, Qualcomm Quick Charge USB QC 3.0
- Integrated current limiting & over temperature protection
Advantages Bachmann USB charging station at a glance:
- USB-A and USB-C charger in one
- Latest USB-C charging technology
- Fast charging via PD & QC
- Individual assembly options
- Future-proof thanks to exchangeable modules
- Easy and flexible installation
TIP:

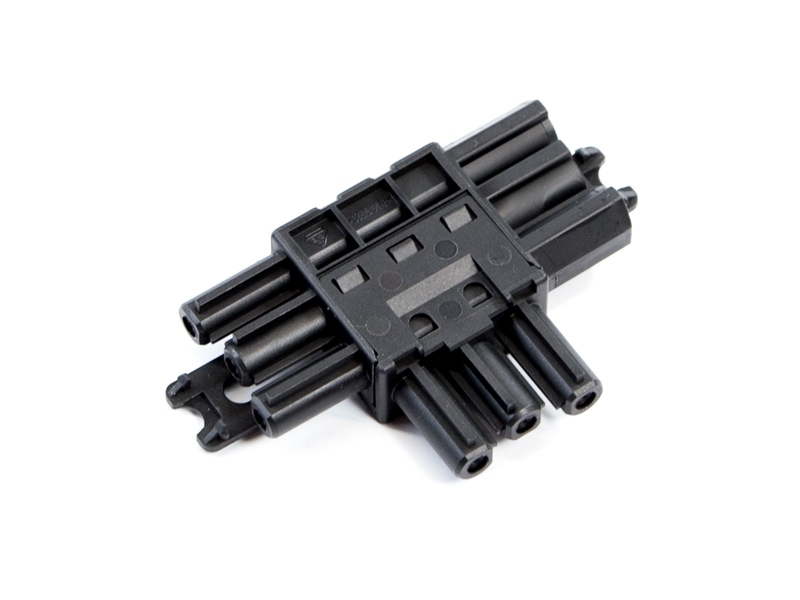

For installation in an existing desk connection panel we recommend the distributor block 375.101. A second supply cable is not necessary, you may need a device extension GST18.
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
