Bachmann cable duct PRO Set with Easy-Desk-3G mount, silver (003.057S)
The Bachmann cable management set with the PRO cable duct in silver and an Easy-Desk-3G mount organises cable routing and enables optimum cable routing at the desk / workstation.
Cable duct with mount

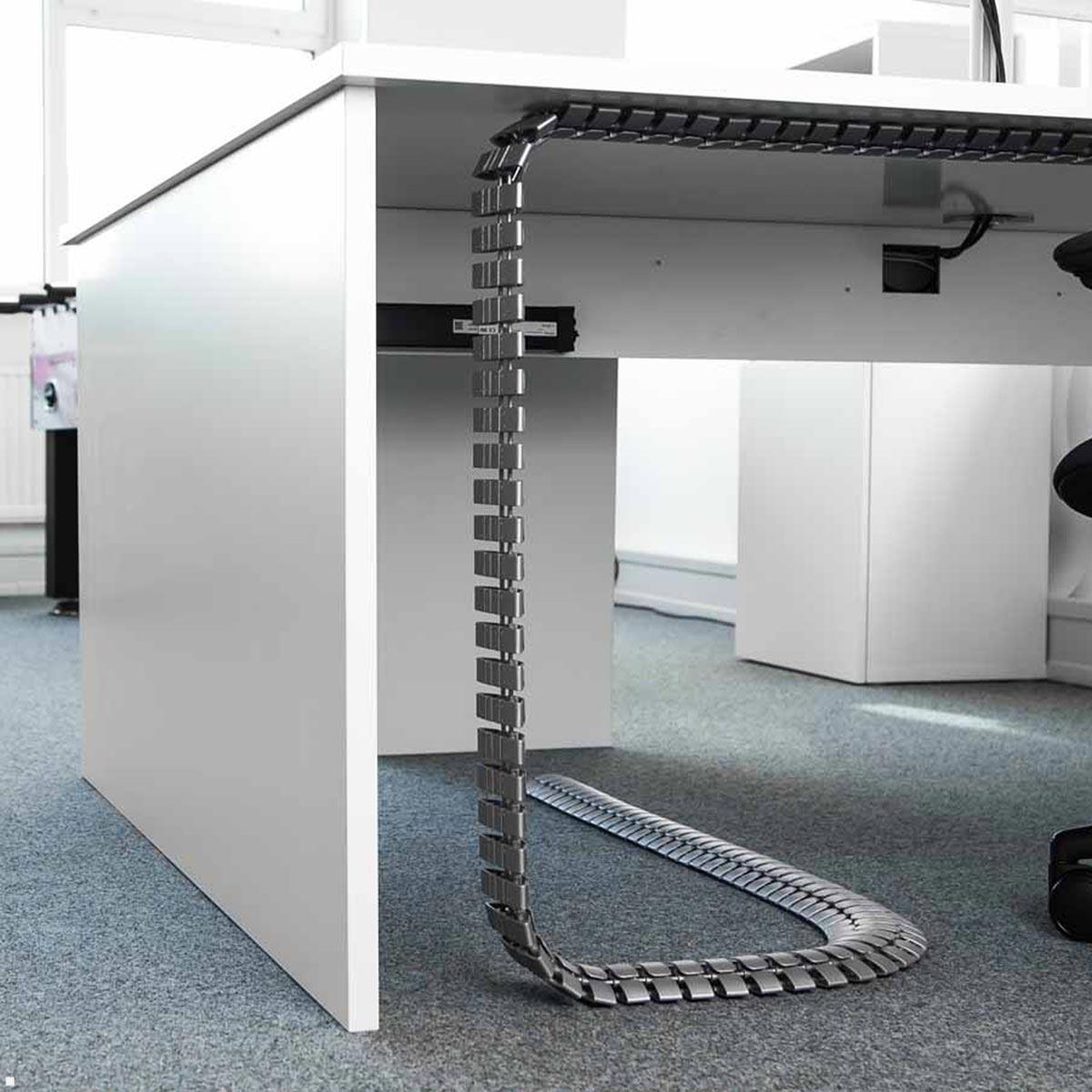

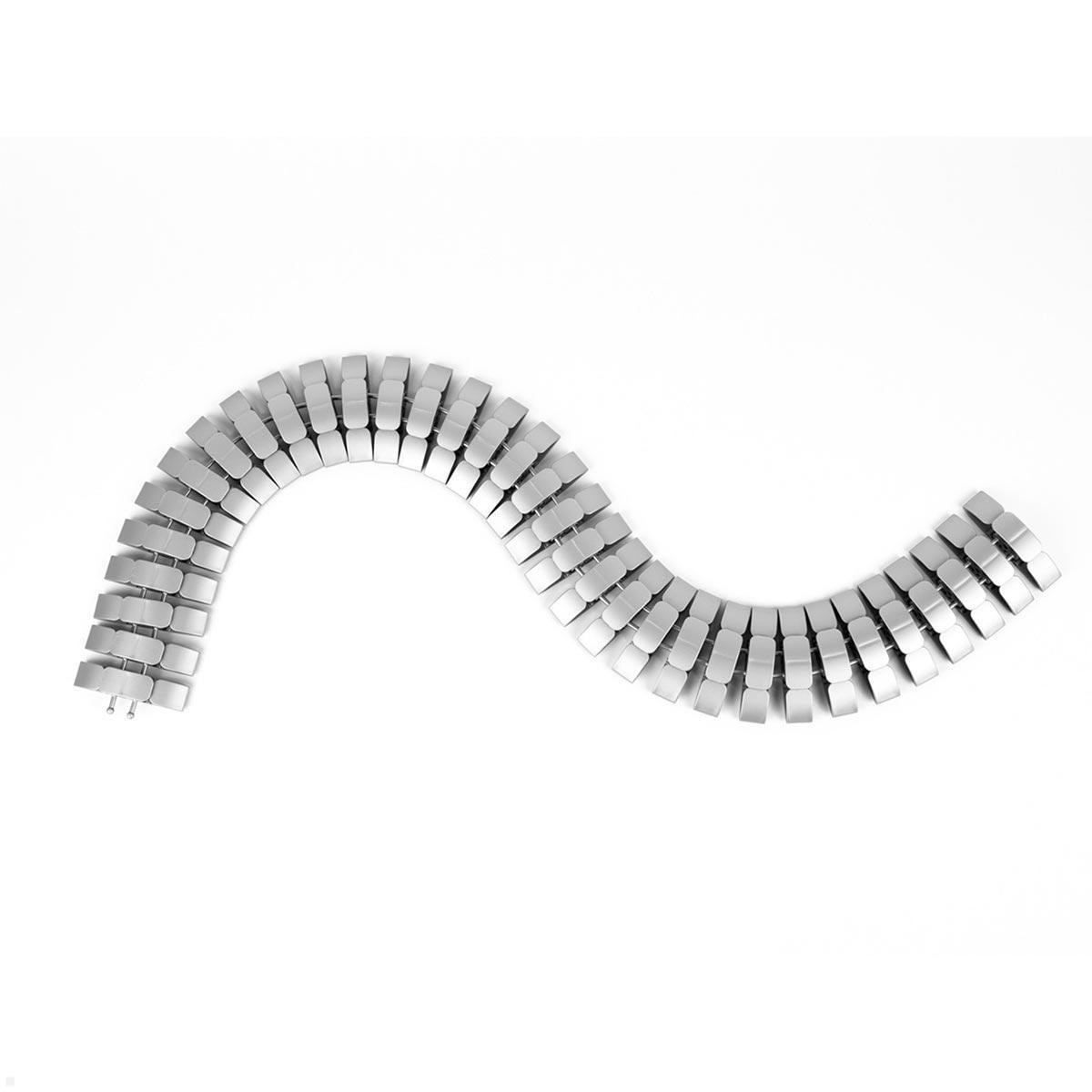

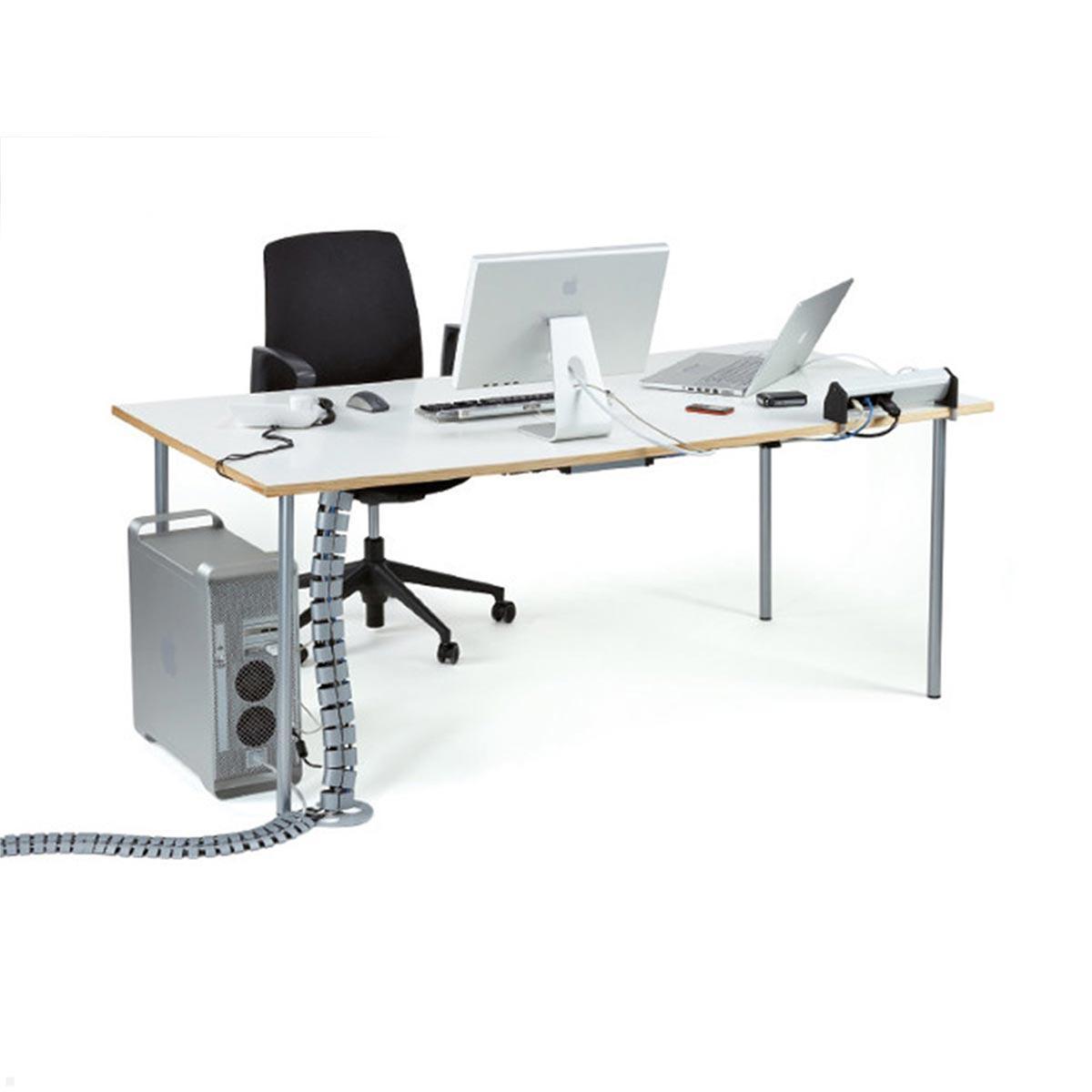

The Bachmann cable duct with mount (003.057S) ensures tidy cable management between table, PC, cable ducts, devices and on the floor. The cable management system can be used as a vertical or horizontal cable guide. Whether the cables are to be routed on the floor, laid from the floor to the desk or a rigid cable guide is to be laid, the Bachmann cable channel can be installed quickly. The cables are routed into the channels of the cable organizer. The flexible cable channel is bendable and movable and therefore offers protection and strain relief for the cable position in the home office or in the office. The Bachmann cable organizing system has a modular design so that the desired length can be adjusted. The Easy-Desk 3G mount (included in the set) is used to attach the cable snake to the underside of the desk / worktop or a counter and also acts to secure the position of the cable channel.
Accessories for mounting on furniture
For vertical mounting of the cable duct PRO on furniture / desks, the Bachmann accessory article Easy-Steel (930.024) is required.
Key features Bachmann cable snake set PRO + Easy-Desk 3G mount (003.057S)
- For horizontal and vertical cable routing
- Increased tread resistance also for passageways
- Short-term loads of up to 120 kg on 5 chain links possible

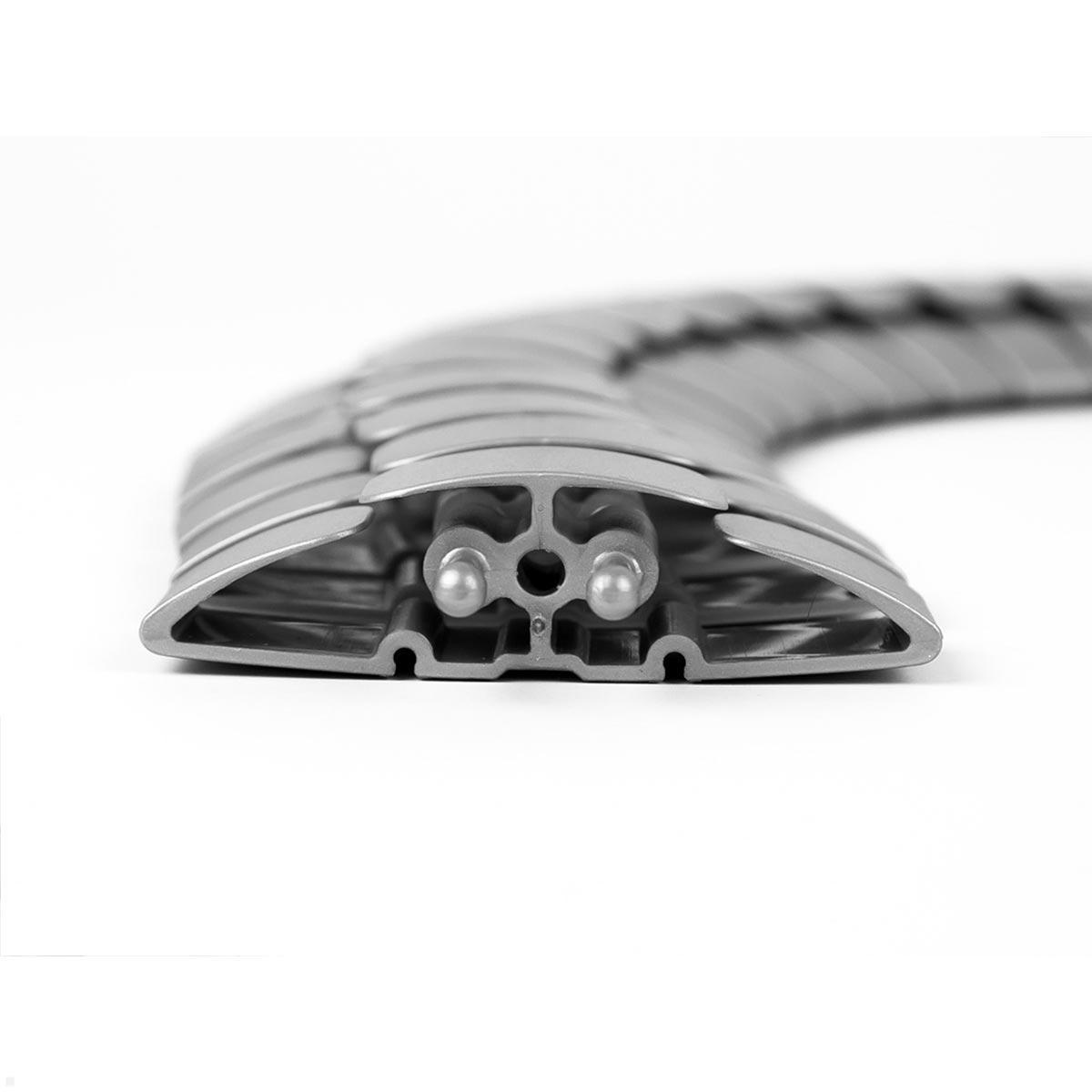

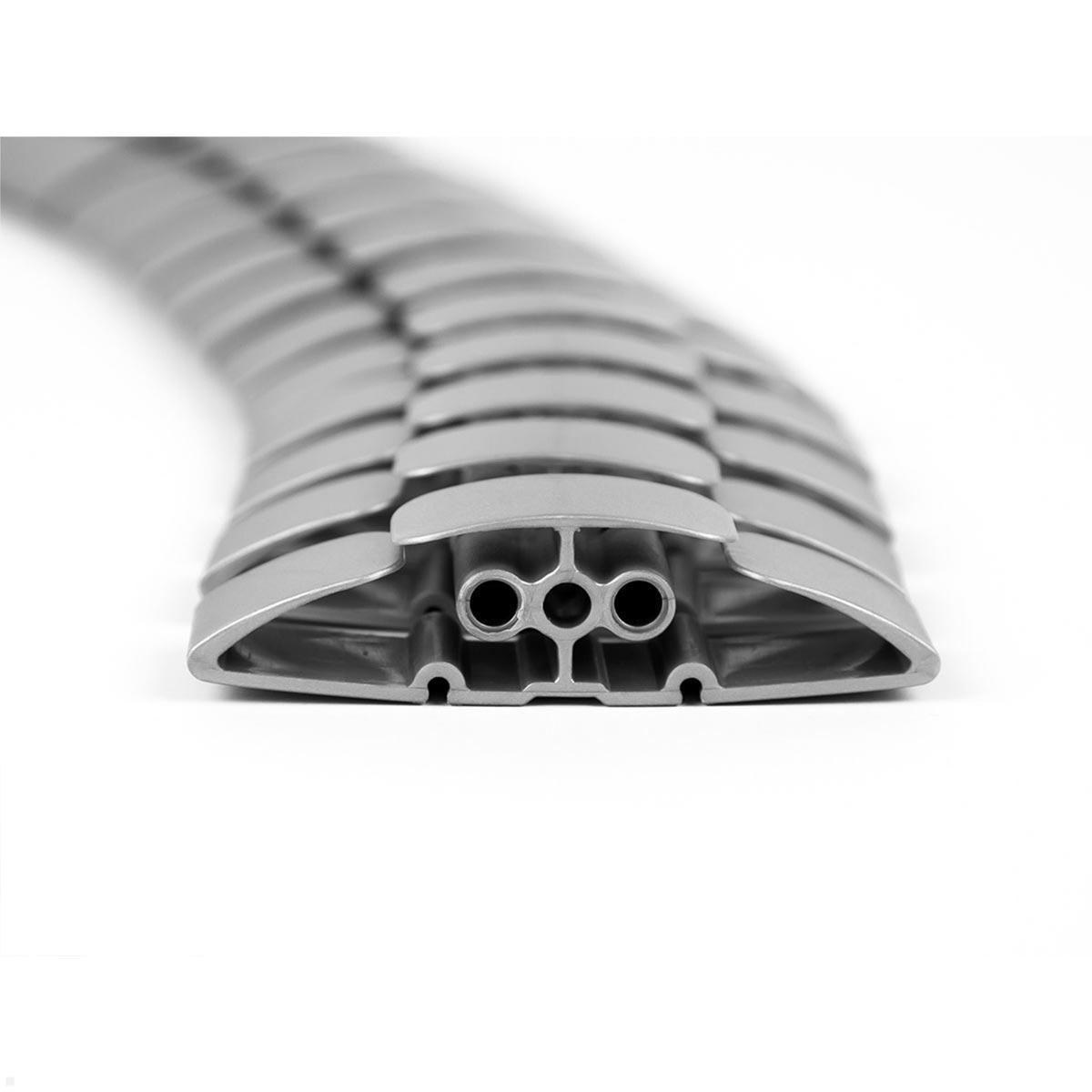

- 2-chamber system for separating data and power cables in the cable bridge

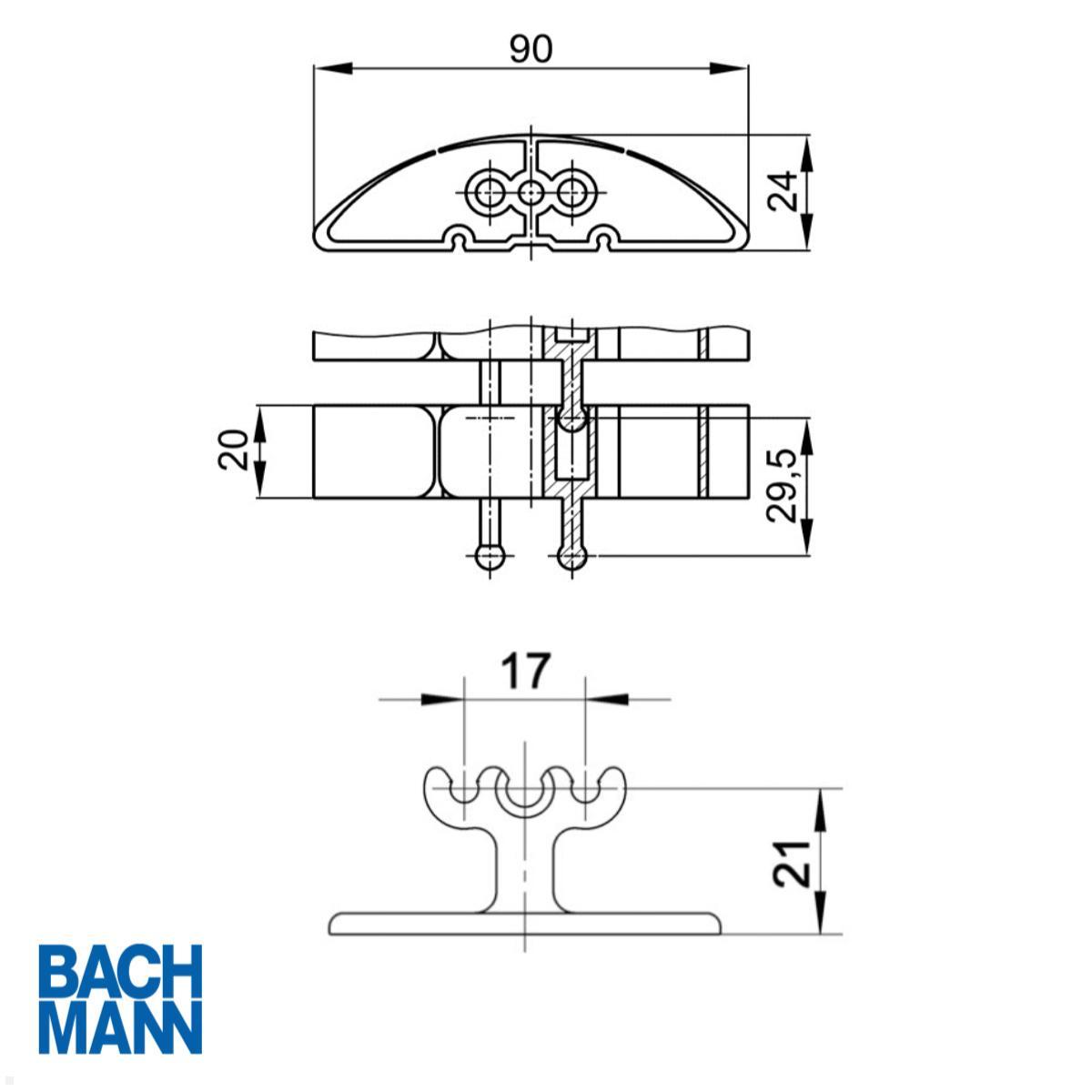

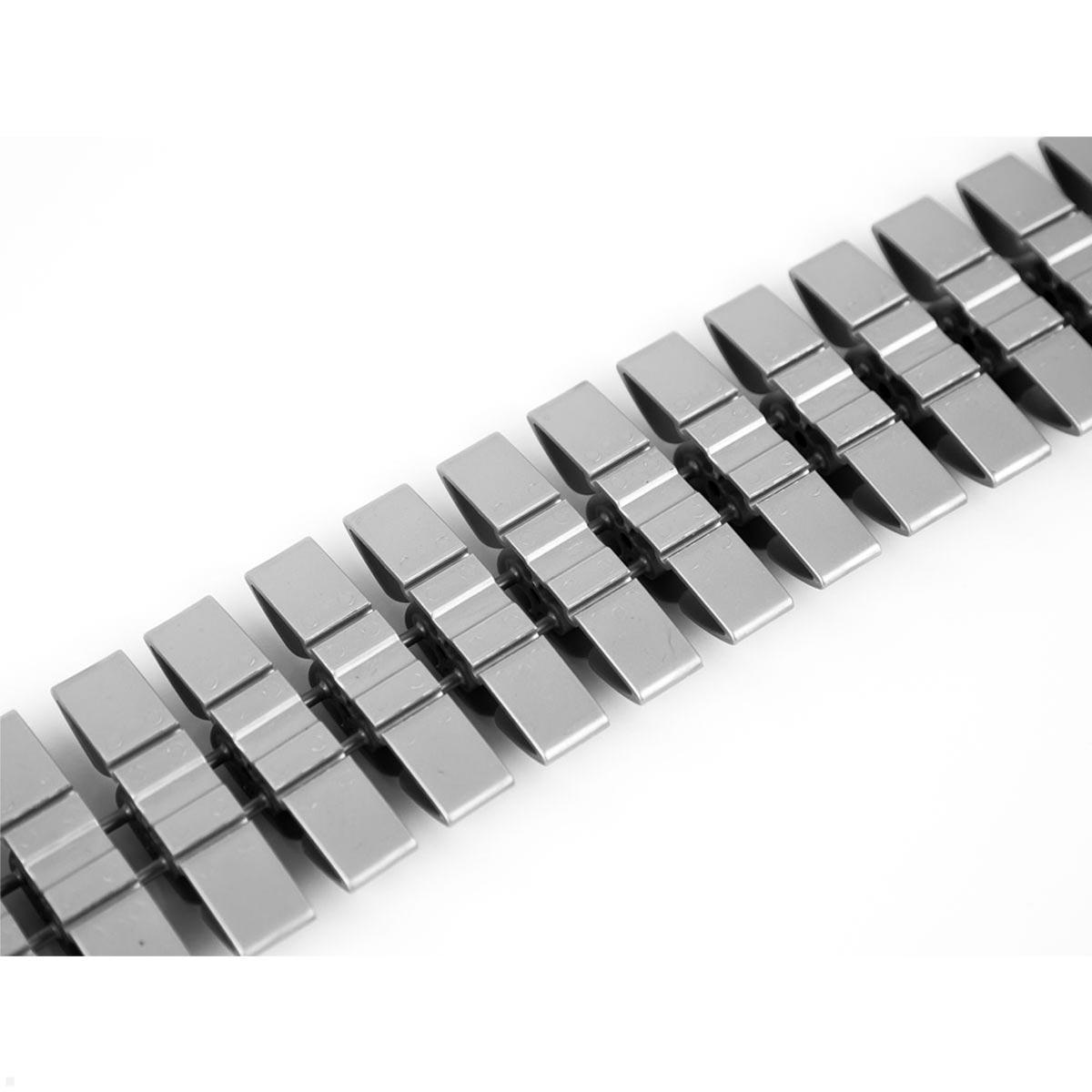

- 34 chain links, width x height: approx. 90 x 24 mm
- Length when pulled apart: approx. 100 cm
- Length when pushed together: approx. 70 cm
- Chain links are arranged so that they cannot be stepped on or broken and can be moved towards each other
- Earthing of the power strip independent of the installation
- 2 plug attachments for power transmission even with torques and transverse forces
- Lateral, crush-proof unthreading of individual cables due to special geometry
- Finish cable duct: silver
- Finish Easy-Desk 3G mount: silver
- Included in scope of delivery:
- Bachmann cable duct PRO silver (930.033)
- Bachmann Easy-Desk 3G mount for cable snake, silver (930.025)
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 660 x 260 x 180 |
| Scope of delivery: | 1x Bachmann cable duct PRO silver (930.033) | 1x Bachmann Easy-Desk-3G mount silver (930.025) |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
