Bachmann accessories ZGX dual adapter for monitor mount ZG1, white (945.006)
Adapter for 2 monitors
Flexibility and ergonomic design characterize the Bachmann ZG1 monitor desk mount. The Bachmann ZGX adapter for 2 monitors transforms this proven single monitor mount quickly and easily into a dual monitor mount. For this purpose, the robust crossbar in white is simply mounted on the existing ZG1 mount so that it can accommodate 2 monitors side by side, each up to 27 inches in size and weighing 4.6 kg. The crossbar can be swiveled 360°, whereby the swivel range can be limited to 180° for collision protection. Thanks to the integrated cable guide, a tidy overall appearance is ensured. A large handle facilitates individual adjustment of the dual monitor desk mount, which retains its full range of motion even after conversion.
Key features Bachmann ZGX adapter single to dual monitor mount (945.006)
- Converts the Bachmann ZG1 monitor mount from a single to a dual monitor mount
- Can only be used in combination with a Bachmann ZG1 monitor arm (945.001 / 945.002 / 945.003)
- Screen sizes: 17" - 27 inch per monitor
- Load capacity: 9,2 kg (4.6 kg per monitor)
- VESA mount: 75x75, 100x100 mm
- Swivel: 360 degrees
- 180° lock feature for collision protection
- Tilt: 20° down, 35° up
- Practical handle for comfortable adjustment
- Integrated cable management
- Dimensions (WxHxD): 810 x 289 x 100 mm
- Finish: white
Does your screen or display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this Bachmann ZGX adapter 945.006. Just tell us your model (manufacturer + model number) in the comment field at the end of the order process. We will then check for you if the monitor or display fits the monitor mount and if not, we will contact you.

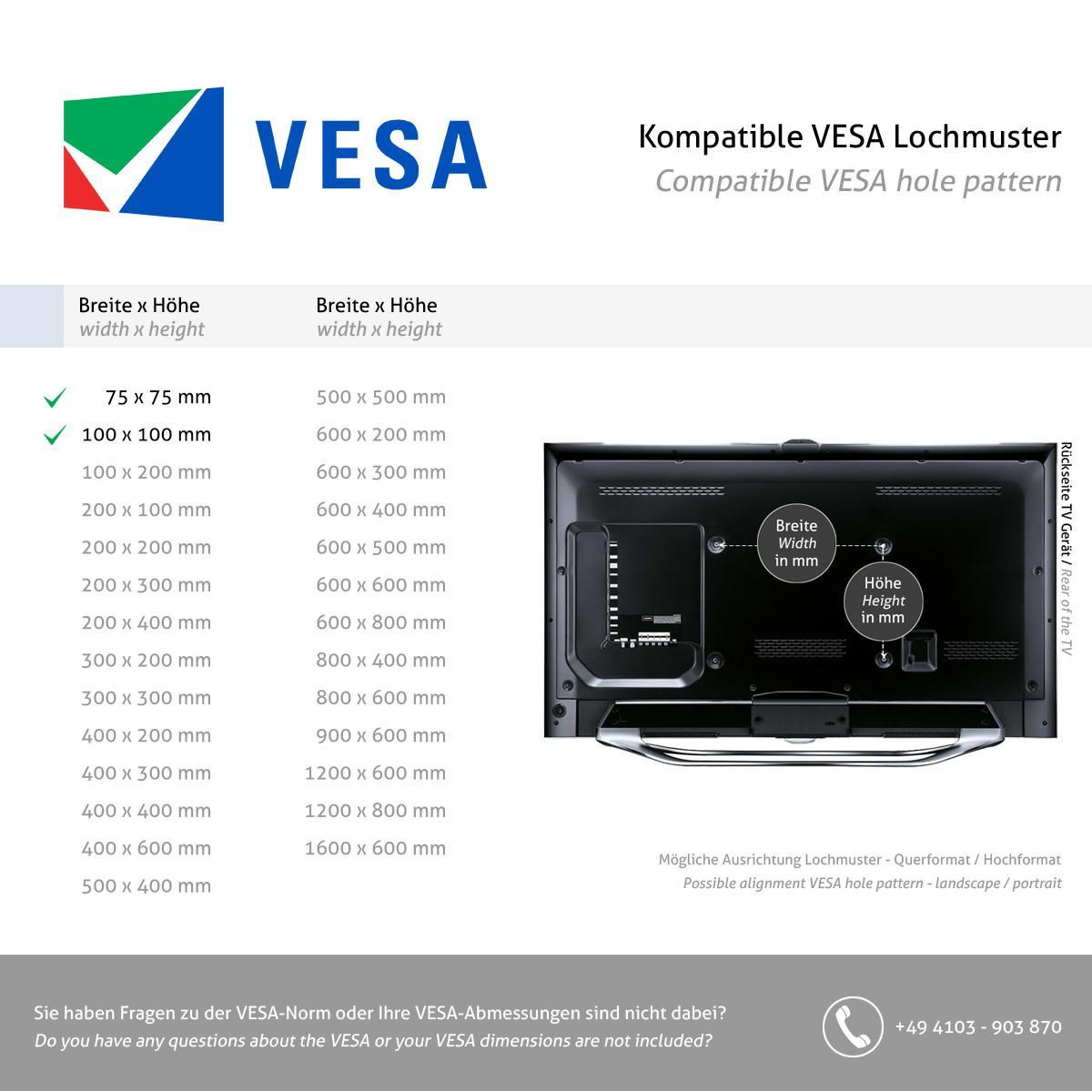

VESA Standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 3 kg |
| Capacity: | 3 - 4.6 kg per monitor |
| Tilt: | 55° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 674 mm |
| Screen size: | 17 - 27" |
| Material: | Aluminum |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Suitable for: | Bachmann ZG1 monitor mount |
| Packaging dimensions (LxWxH in mm): | 500 x 195 x 115 |
| Scope of delivery: | 1x ZGX dual adapter crossbar |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | swivelling, tilting |
| Multi-monitor mount: | 2 monitors side by side |
| Theft-proof: | No |
| color: | White |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
