Bachmann accessories PIX Holder for mounting on furniture 2-fold (926.502)

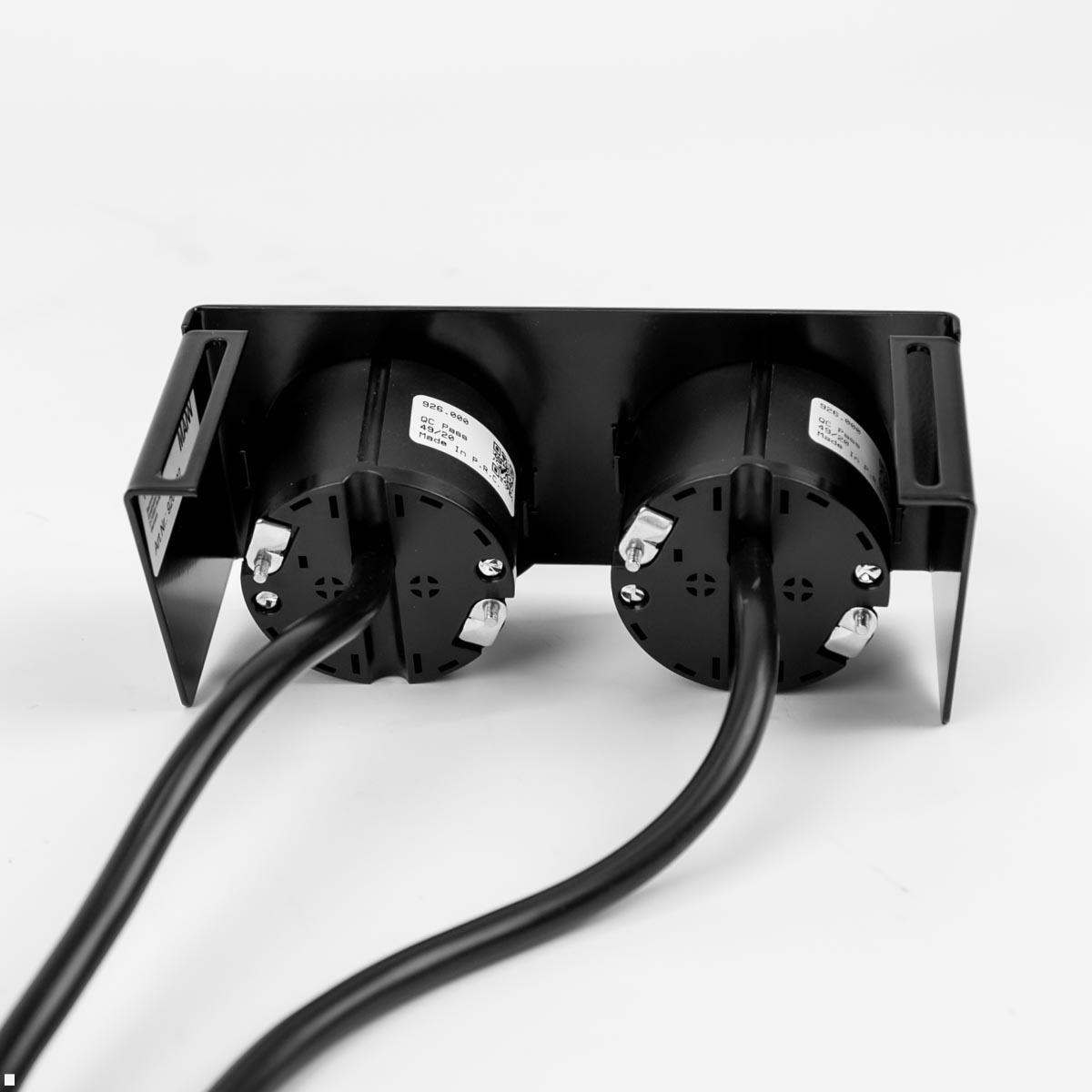

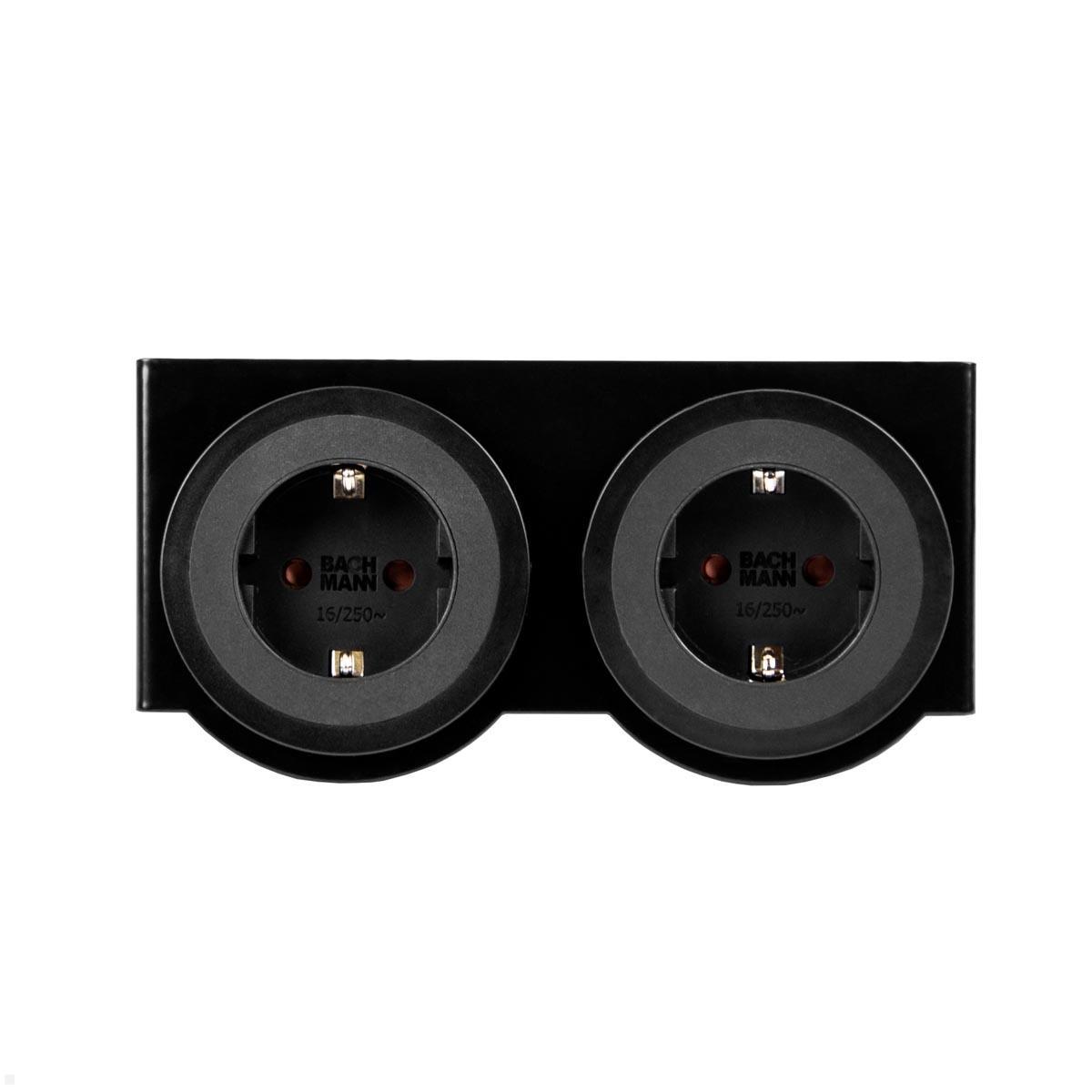

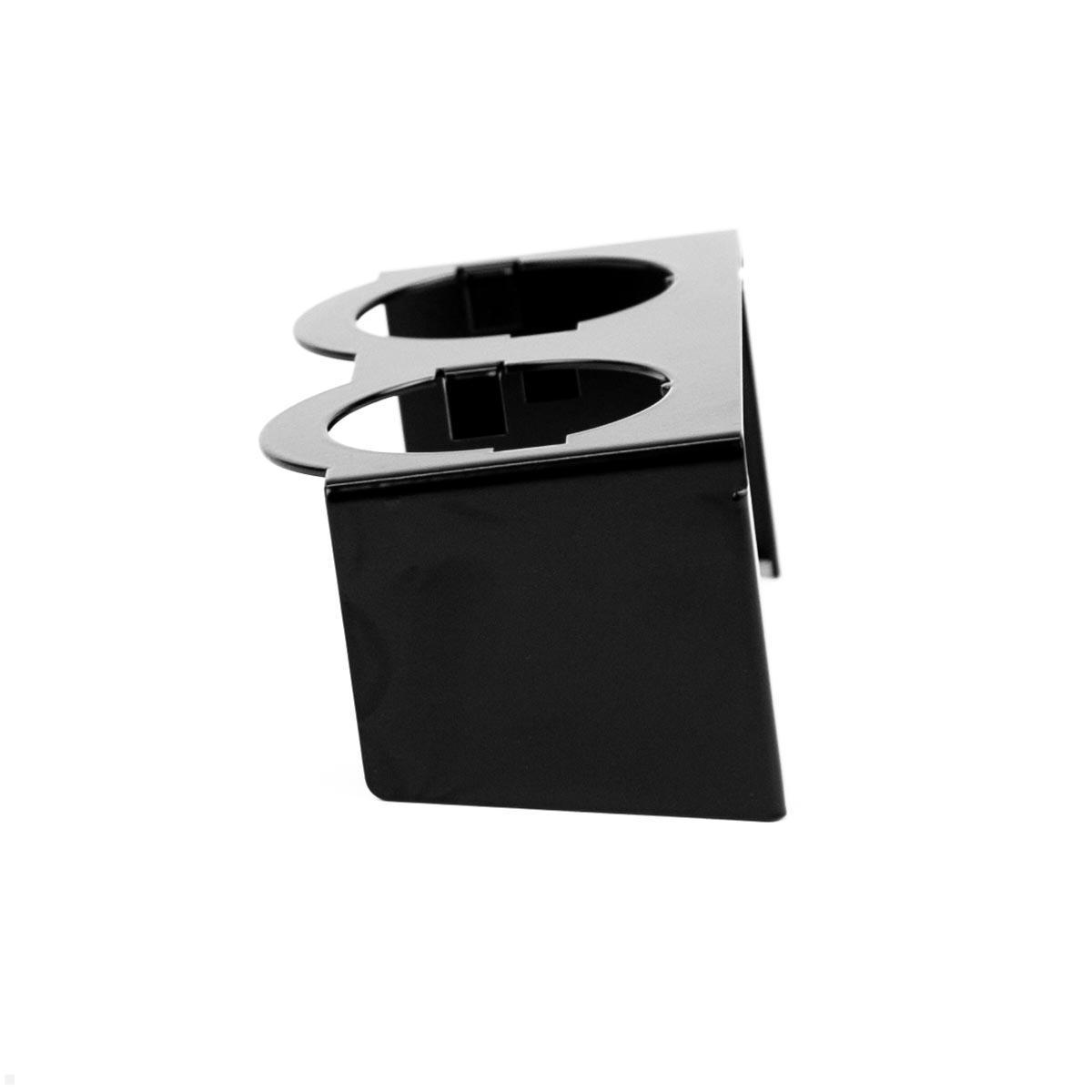

With the Bachmann accessory PIX Holder for mounting on furniture 2-fold (926.502) in black, a PIX power strip can be mounted on furniture as desired without cutting out. The metal holder is conveniently fastened with four screws.
PIX Holder for mounting on furniture
The round socket unit Bachmann PIX is suitable for use in kitchens, offices, lounges and other areas. With the PIX Holder for mounting on furniture, the practical PIX recessed socket can now be installed in the preferred location without the need for a hole saw. The PIX metal holder is conveniently attached using the four enclosed screws, so that no large holes need to be made in expensive pieces of furniture.
Whether discreetly hidden under the couch or visible on the side table: with the PIX Holder 2-fold (926.502), the power connection panel can be attached directly at the desired location.
Key features Bachmann PIX Holder 2-fold 926.502
- For mounting 2 PIX power strips on a piece of furniture without cut-out
- Hidden power supply everywhere
- Flexible for various furniture

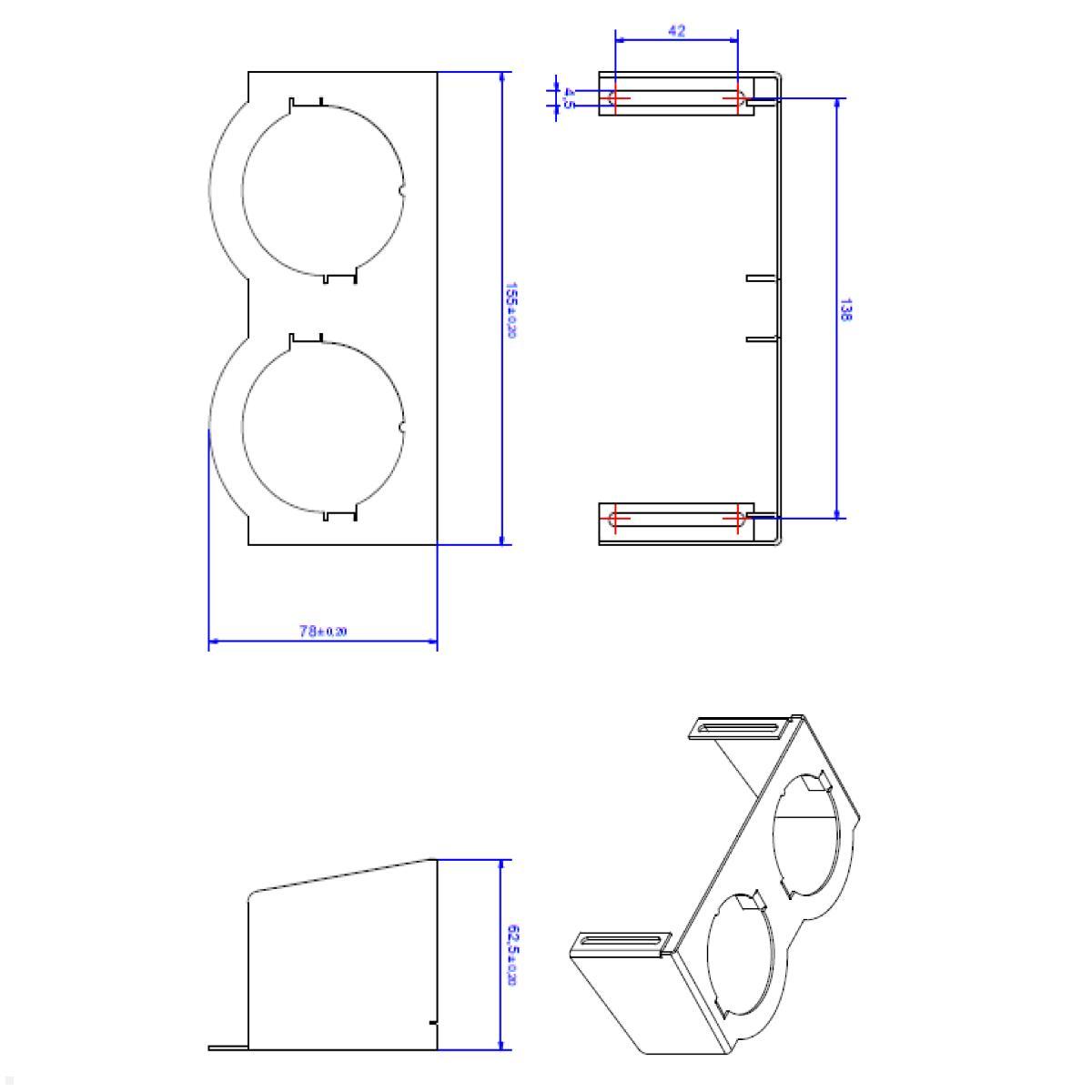

- Dimensions (LxWxH): 155 x 78 x 62.5 mm
- Material: sheet steel DC01
- Finish: black powder coated, similar to RAL 9005
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | PIX built-in sockets |
| Packaging dimensions (LxWxH in mm): | 155 x 78 x 62,5 |
| Scope of delivery: | 1x PIX Holder 2-fold, 4x screws type: ASSY 3.0 steel galvanized |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
