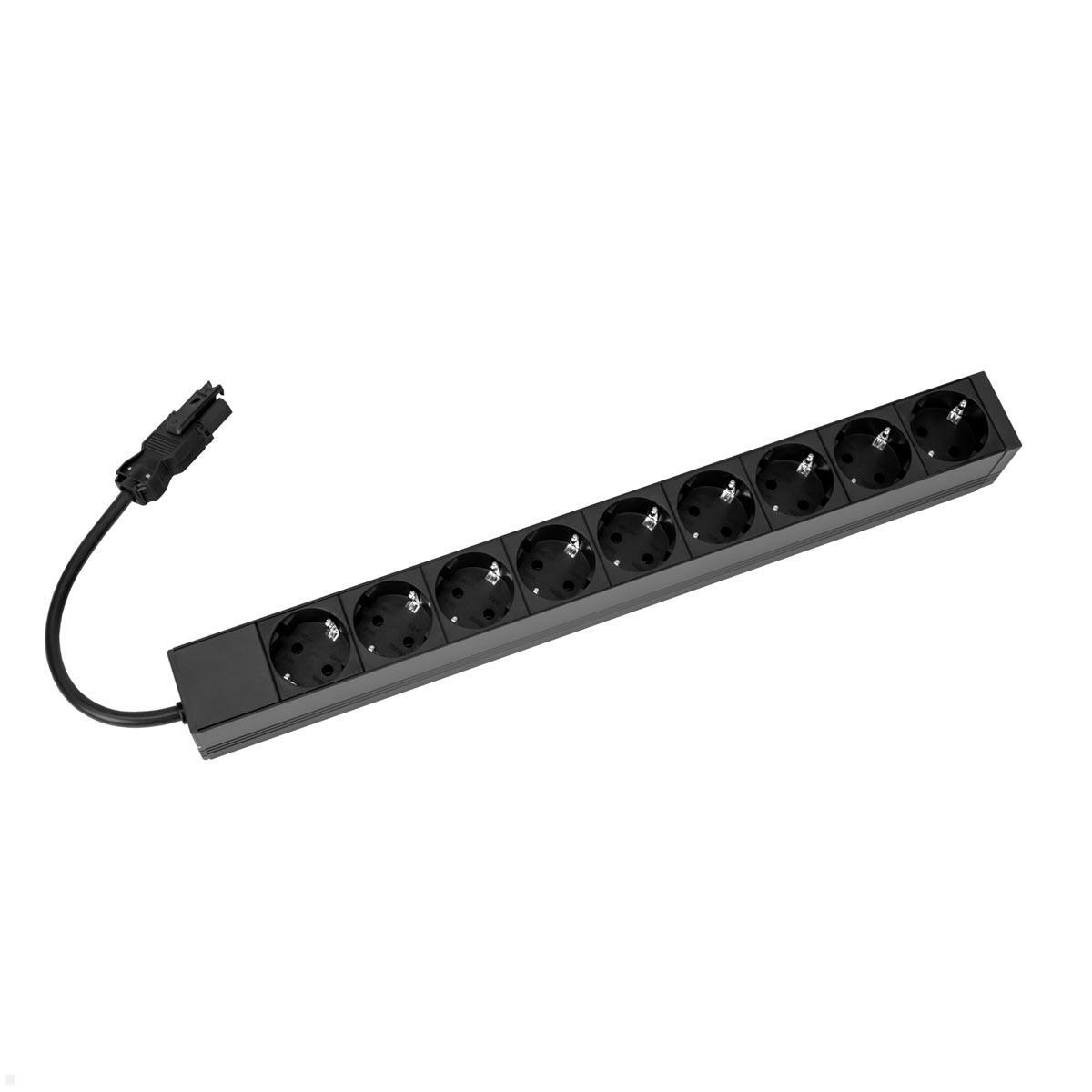

Bachmann 19 inch 1U power strip 9x CEE 7/3 (800.2383)
The Bachmann 19 inch power strip 800.2383 is a 19 inch PDU power socket unit with 1U PVC profile for power distribution in the data center and use in the 19 inch IT server rack. The power distribution unit contains nine earthing contact sockets and a 0.2m supply cable with earthing contact angle plug.
Bachmann 19'' power strip, 9x protective contact sockets, (800.2383)
Bachmann IT PDU 9-way 19'' power strip 1U 800.2383 offers a huge selection of multiple sockets in a high-quality PVC plastic profile for future-oriented, highly efficient energy distribution in the data center, server rack, or network rack with the IT PDU Basic and Vertical . Due to its extremely compact design of only 1 height unit, the Bachmann PDU 800.2383 can be integrated into your 19 inch IT rack to save space. With the help of the multifunctional brackets, different installation variants (e.g. inwardly offset installation) are possible without any problems.
Key features Bachmann 19 inch power strip 1U 9-way power strip (800.2383)
- IT PDU Basic 1U
- for 19 inch cabinet
- Robust plastic profile, very torsion-resistant
- Protective contact socket: 9x CEE 7/3 (Type F) - 35°
- 2-pole with protective contact
- With increased contact protection
- 16A / 250V

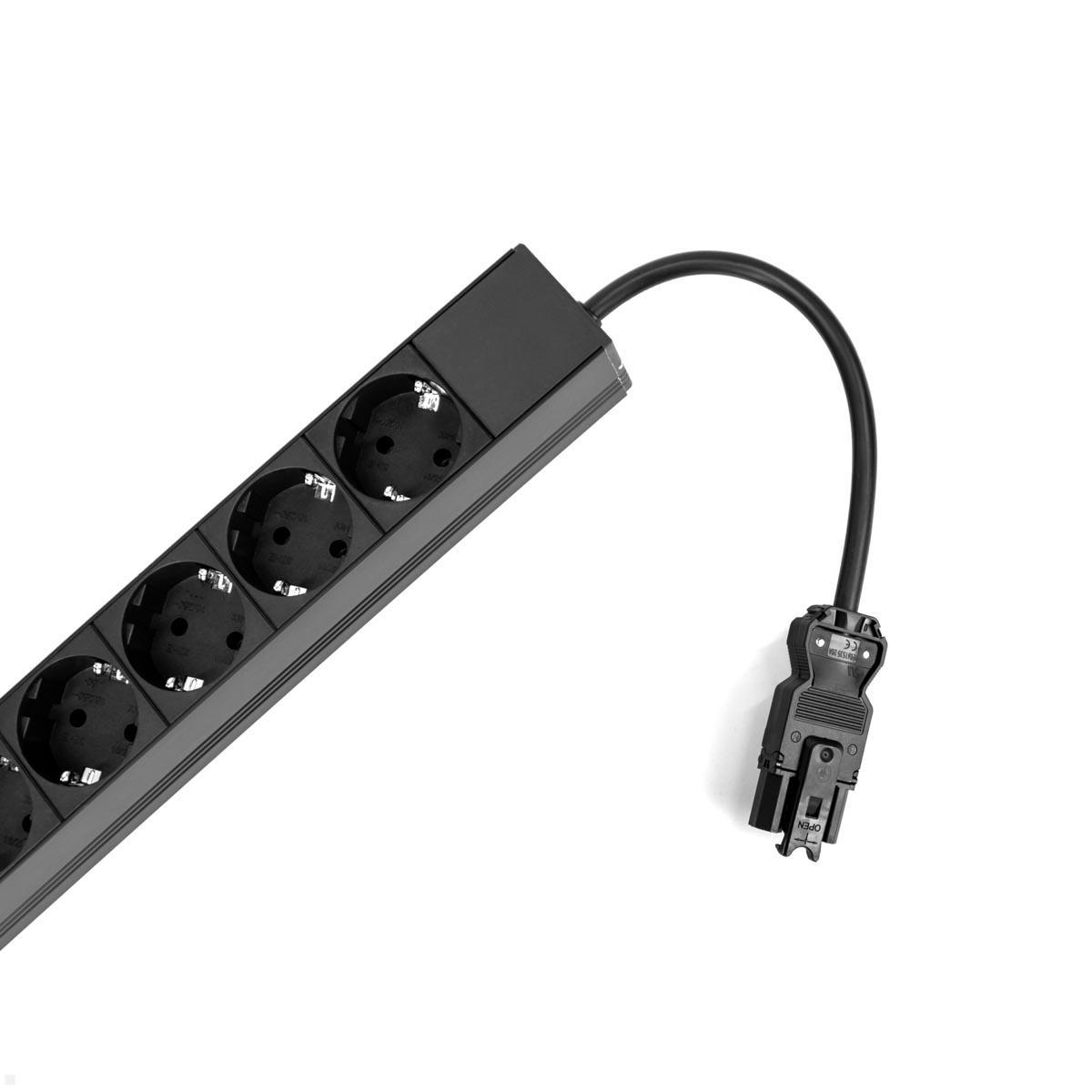

- 0.2 m supply line
- with installation plug

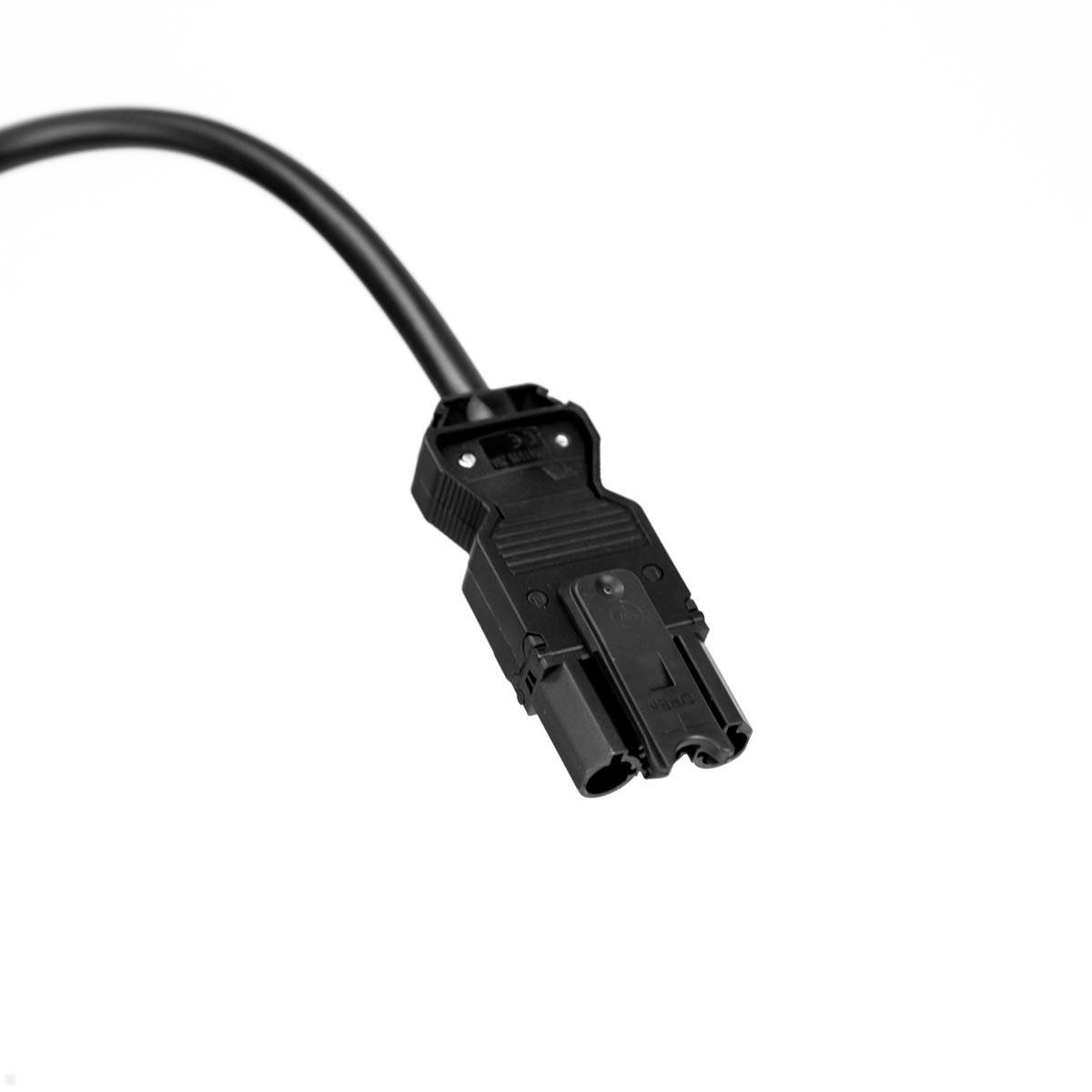

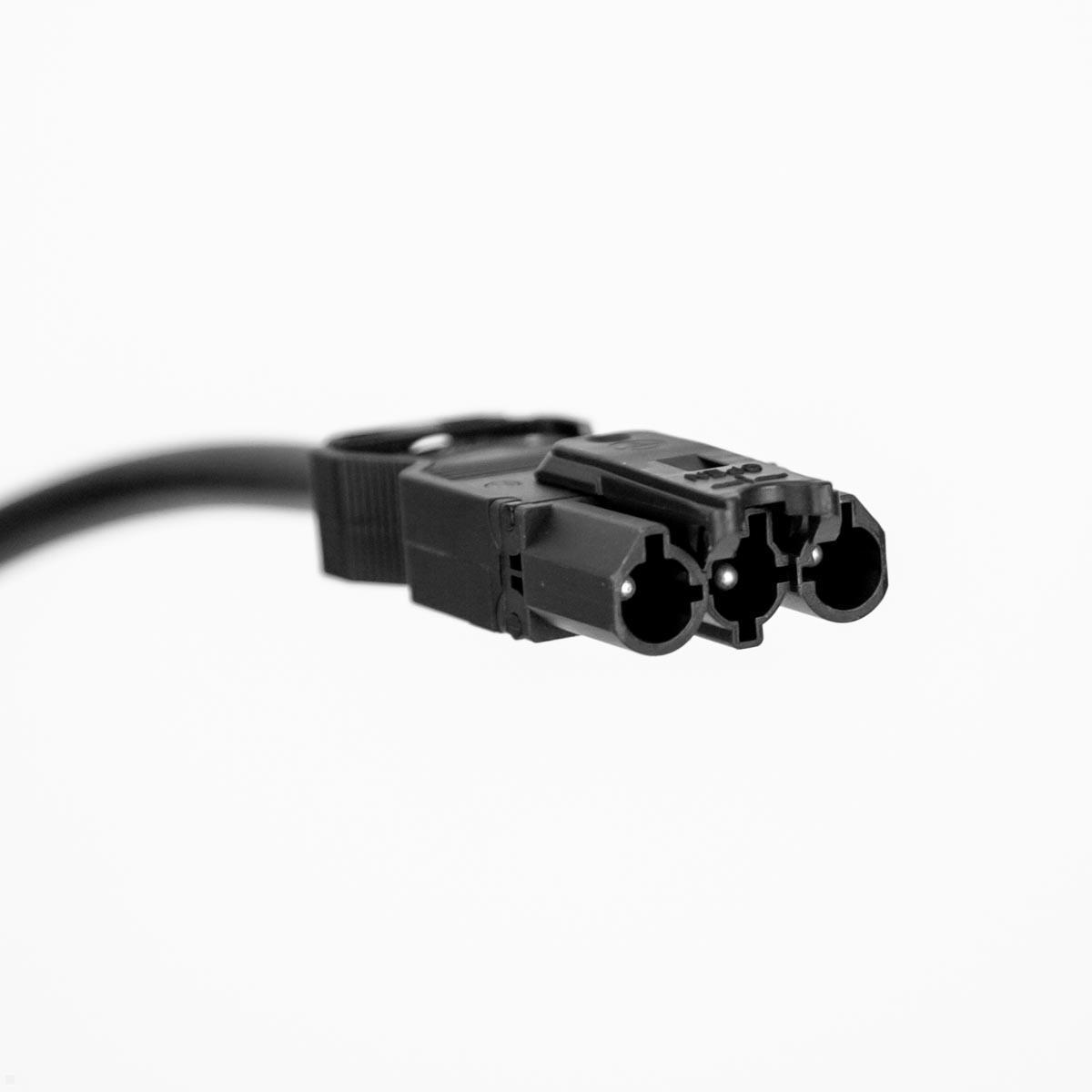

- Plug: Wieland GST18i3
- IP20
- Dimensions (WxHxD): 437.4 x 43.7 x 44 mm
- Includes 2 brackets and screws
- Housing: aluminum, anodized
- Cover: black similar to RAL 9005
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x 19" ALU 1U socket strip, 2x mounting brackets |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 9 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
