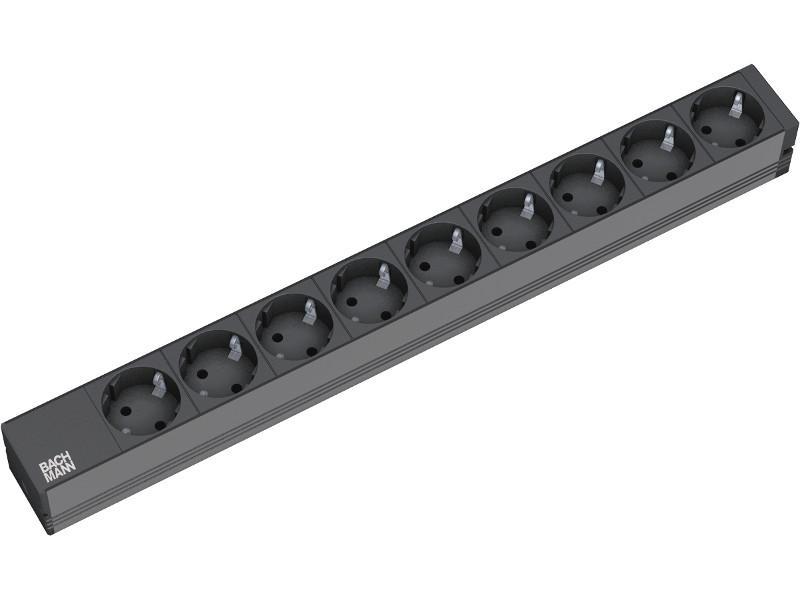

Bachmann 19 inch power strip 9x sockets 1U (333.506)
The Bachmann power strip 333.506 is a 19 inch PDU power strip in black with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 9x german type socket outlets and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19" power strip 1U, 9x socket outlets
For future-oriented, highly efficient power distribution in the data centre, server rack or network rack, BACHMANN PDU multiple plug offers a huge selection of socket strips in a high-quality aluminium profile with the IT PDU Basic and Vertical. Due to the extremely compact design of only 1 height unit, the Bachmann PDU power strip 9x socket 333.506 can be integrated in your IT rack to save space. With the help of the multi-functional mounting brackets, different installation variants (e.g. mounting offset inwards) are easily possible.
Key features Bachmann 19inch 9-way power strip 1U 9x socket outlets (333.506)
- IT PDU Basic 19" - socket strip ALU 1HE (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 9x german type socket outlets, 35° twisted, black
- Cable: 2.0m H05VV-F 3G 1.50 mm²
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230 V
- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End pieces riveted & not reclosable / openable
- Finish profile: black
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

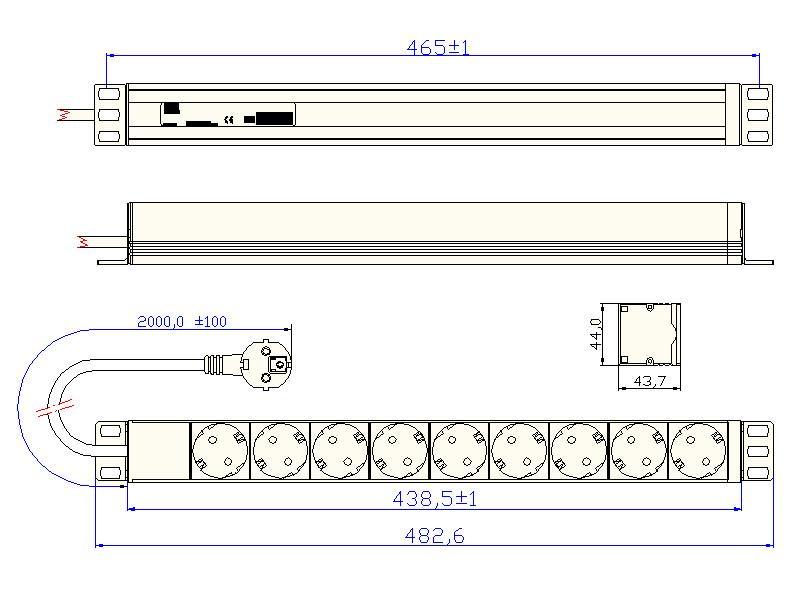

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 9 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
