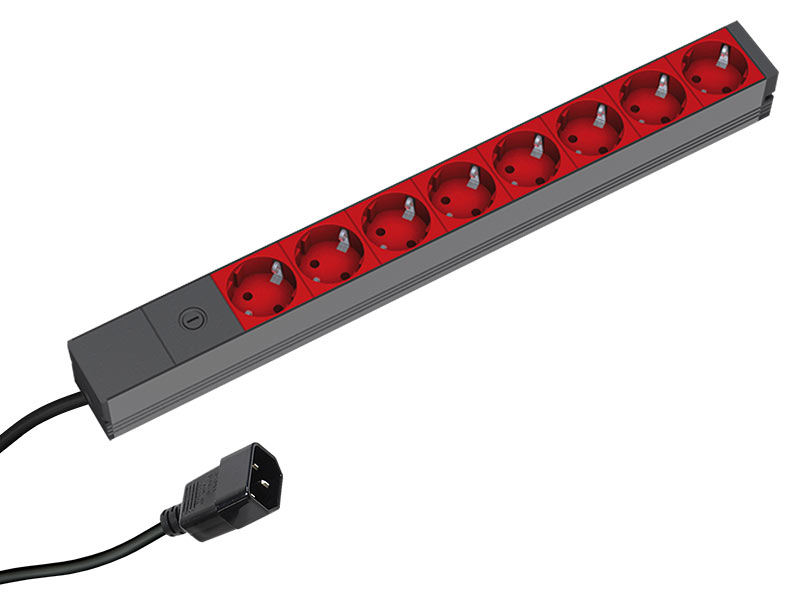

Bachmann 19 inch power strip 8x sockets fuse 1U (333.538)
The Bachmann power strip 333.538 is a 19 inch PDU power strip with 1U Alu-Profile black for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 8x german type socket outlets in red with 10A fuse and a 2,0m power supply cable with C14 plug.
Bachmann 19" power strip 8x sockets fuse 10A (333.538)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the Bachmann PDU 333.538 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 19inch 8-way power strip fuse 10A (333.538)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: C14
- 8x german type socket outlets, 35° twisted, red
- Fuse 10A, exchangeable
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V

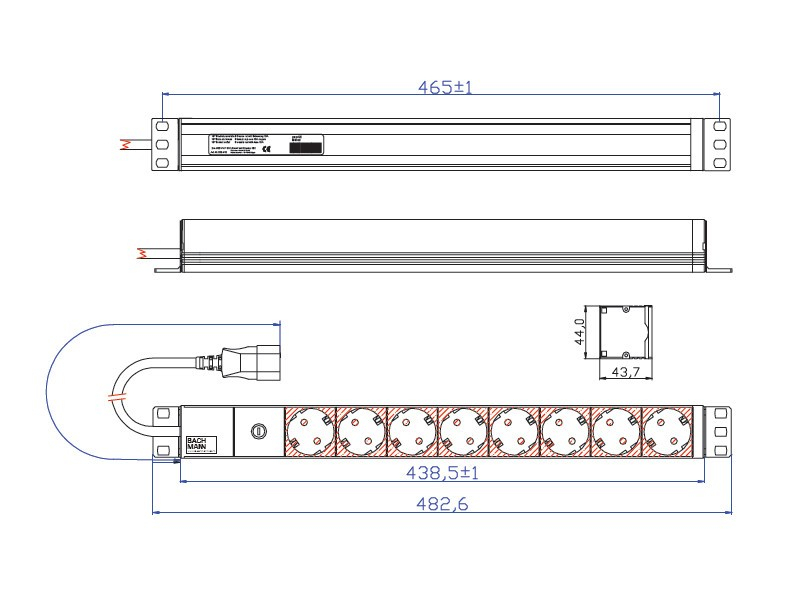

- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End caps riveted, non rewireable
- Finish profile: black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Fuse: | Yes |
| Number of sockets: | 8 |
| color: | Black/Red |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
