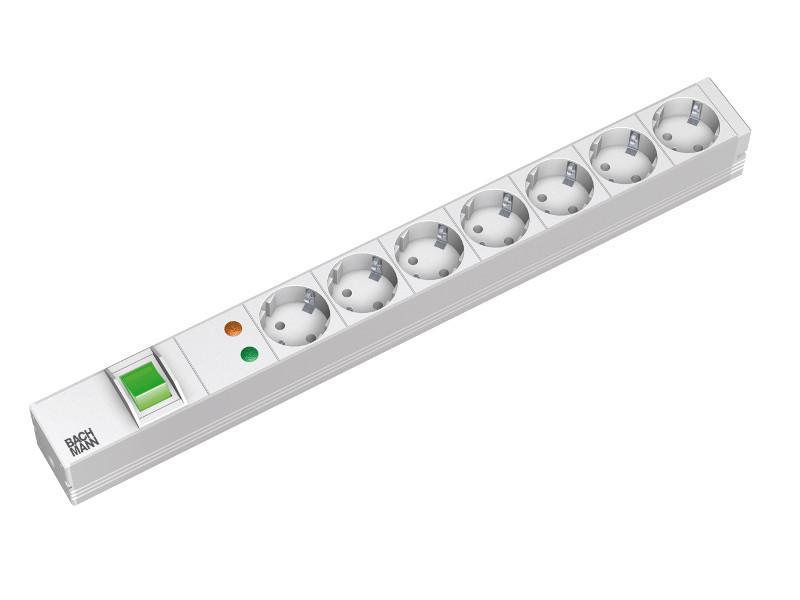

Bachmann 19 inch power strip 7x sockets 1x switch OVP 1U (333.405)
The Bachmann power strip 333.405 is a 19inch PDU power strip with 1U Alu-Profile for the power distribution at a Datacenter or to be integrated into your IT rack. The power distribution unit contains 7x german type socket outlets, 1x switch, OVP (overvoltage protection) and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19" power strip 1U 7x sockets 1x switch OVP (333.405)
With its IT PDU Basic 1U, BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the power distribution unit 333.405 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 19inch power strip 1U 7x sockets 1x switch OVP (333.405)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 7x german type socket outlets, 35° twisted, grey
- 1x switch, 2-pole, illuminated
- Overvoltage protection (OVP): Type III 6.5 kA
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End caps riveted, non rewireable
- Finish profile: grey RAL 7035
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

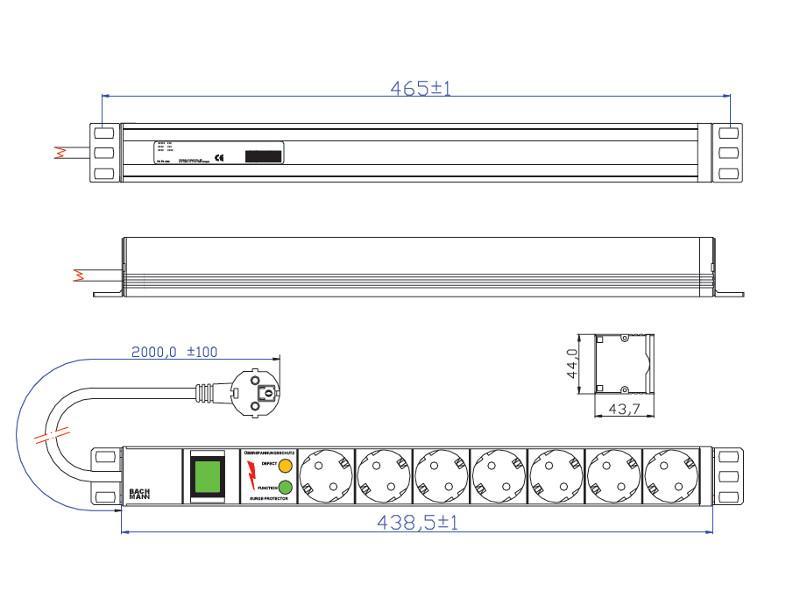

| Technical drawing: | [pdf, 40 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 7 |
| Overvoltage protection: | Yes |
| color: | Grey |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
