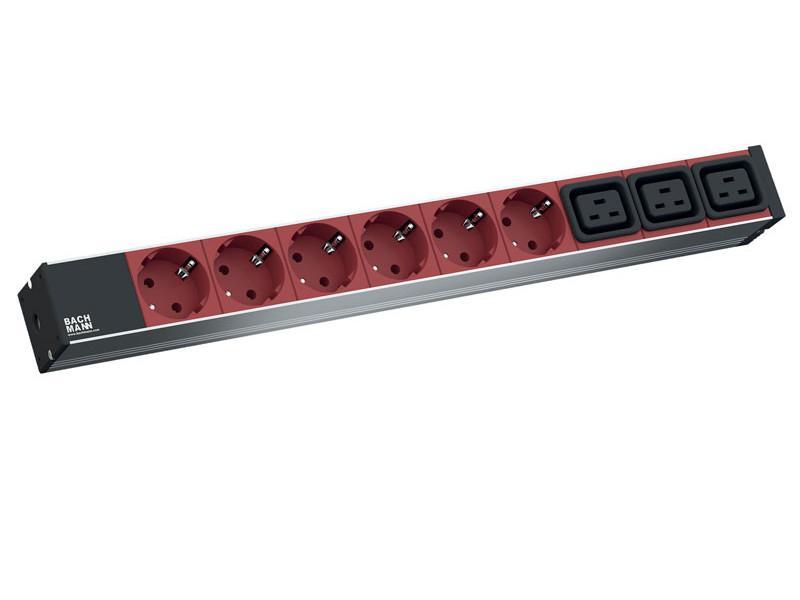

Bachmann 19 inch power strip 6x sockets, 3x C19, 1U (800.2333)
The Bachmann power strip 800.2333 is a 19inch PDU power strip with 1U Alu-Profile for the power distribution at a Datacenter or to be integrated into your IT rack. The power distribution unit contains 6x german type socket outlets and 3x C19 socket outlets with a 2,0m power supply cable with C20 plug.
Bachmann 9-way 19" power strip 1U, 6x socket outlets, 3x C19 (800.2333)
With its IT PDU Basic 1U, BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the power distribution unit 800.2333 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 9x 19 inch power strip 1U, 6x socket outlets, 3x C19 (800.2333)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: C20
- 6x german type power socket outlets, 35° twisted, red
- 3x C19 socket outlets, black
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Incl. 2x mounting metal flanges
- Finish profile: grey
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Others |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
