Bachmann 19 inch power strip 6x sockets 1x MCB 1U (333.412)
The Bachmann power strip 333.412 is a 19 inch PDU power strip with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 6x german type socket outlets with 1x MCB (micro circuit breaker) and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19" power strip 6x sockets 1x MCB 1U (333.412)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the Bachmann PDU 333.412 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 19inch 6-way power strip 1x MCB switch (333.412)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 6x german type socket outlets, 35° twisted, grey
- 1x Micro circuit breaker (MCB) 16A, 2-pole, Character B, 6kA
- Nominal voltage: 16A, 250V
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End caps screwed, rewireable
- Finish profile: grey RAL 7035
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

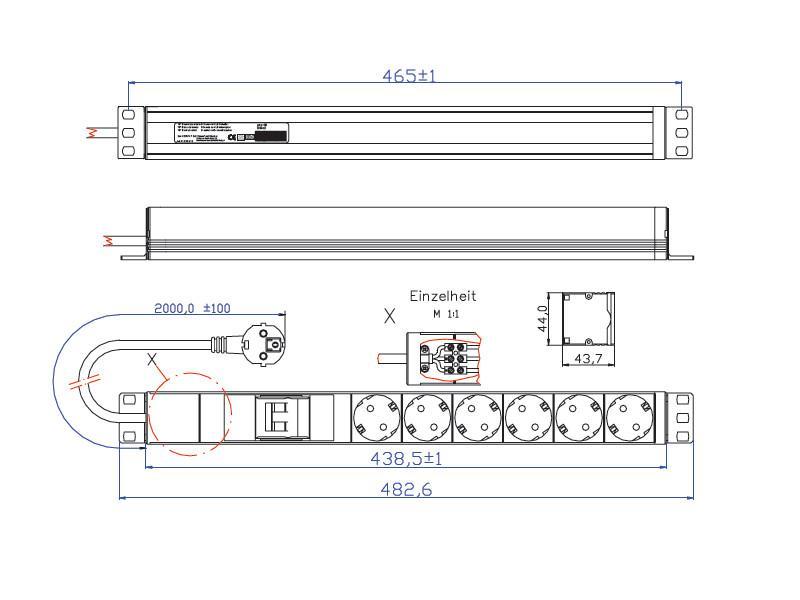

| Technical drawing: | [pdf, 45 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 6 |
| color: | Grey |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
