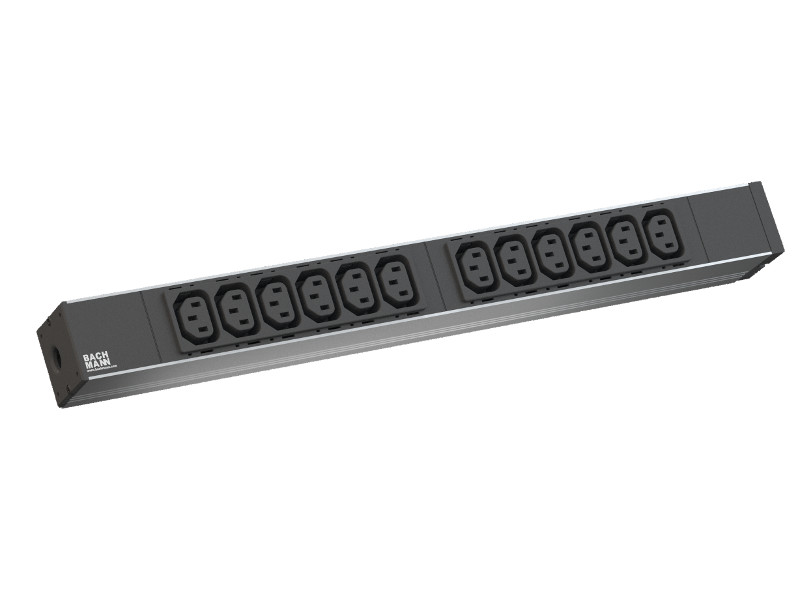

Bachmann 19 inch power strip 12x C13 locking clips 1U (333.616)
The Bachmann power strip 333.616 is a 19 inch PDU power strip in black with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 12x C13 socket outlets with locking clips and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann 19" power strip 12x C13 socket outlets 1U (333.616)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the Bachmann PDU 333.616 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann 19inch 12-way power strip 1U 12x C13 (333.616)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 12x C13 socket outlets, black, with locking clips
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Dimensions (WxHxD): 438,5 x 43,7 x 44 mm
- Incl. 2x mounting metal flanges
- End caps riveted, non rewireable
- Profile: Aluminium
| Product sheet: |  [pdf, 1,2 MB] |
|---|---|

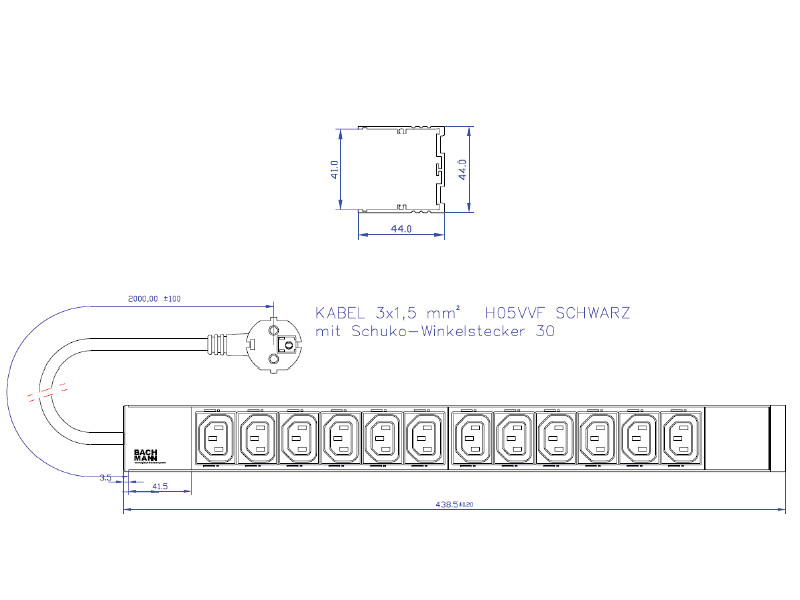

| Technical drawing: | [pdf, 44 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
