B-Tech BT7511/B tiltable monitor wall mount up to 28 inch, black
The B-Tech BT7511/B tilting monitor wall mount is ideal for small flat screens up to 28 inches and offers flexible viewing angles with swivelling function. With a distance of just 54 mm, it enables flat positioning and precise alignment.
Tiltable monitor wall mount

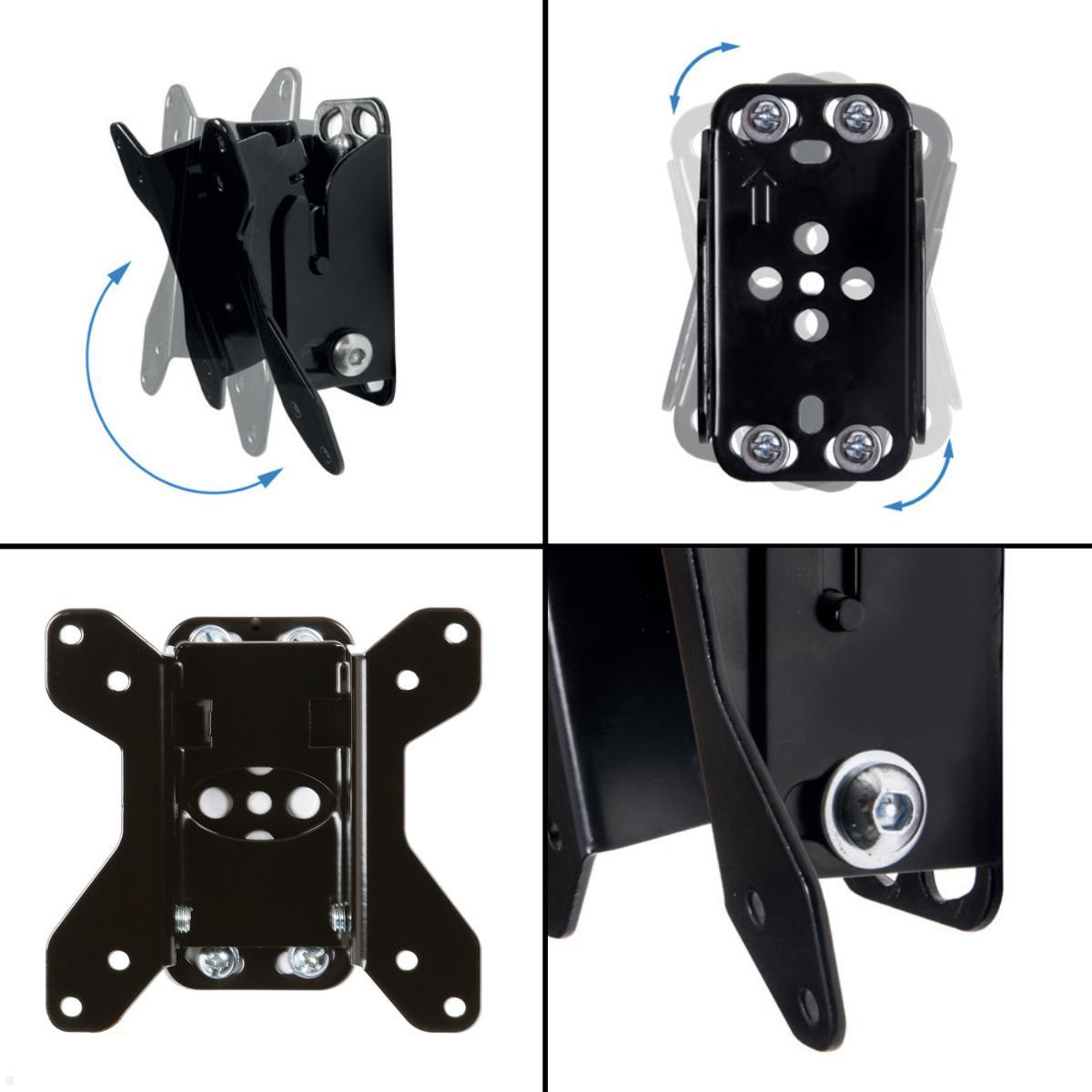

The B-Tech BT7511/B tiltable monitor wall mount is specially designed for mounting small flat screens and also offers a swivel function and a pivot function for flexible viewing angles. With a small distance of only 54 mm to the wall, it enables easy positioning and has a tilt function of +17° / -10°. The OWLS (On Wall Levelling System) wall levelling system ensures precise alignment of the monitor. The TV wall bracket is ideal for commercial applications and home installations and supports screens with VESA mounting patterns of 75 x 75 mm and 100 x 100 mm.
Key features B-Tech BT7511/B tilting TV wall mount
- Mounting type: Wall bracket
- Screen size: Up to 28 inches (710 mm)
- Max. Load capacity: 20 kg
- Own weight: 0.4 kg
- Tilt: +17°/-10˚
- VESA mount: 75x75, 100x100 mm
- Wall distance: 54 mm
- Equipped with OWLS wall levelling system
- High-quality powder coating
- Colour: Black
Does your screen or display fit the VESA mount?
We are happy to assist in verifying if your monitor is compatible with the BT7511/B TV wall mount, designed for screens up to 28 inches. Simply provide your monitor's model (manufacturer + model no.) in the comments section during checkout. We will promptly assess its compatibility with the mount and reach out to you if further assistance is needed.
VESA standard - more about VESA!
| Product sheet: |  [pdf] |
|---|---|

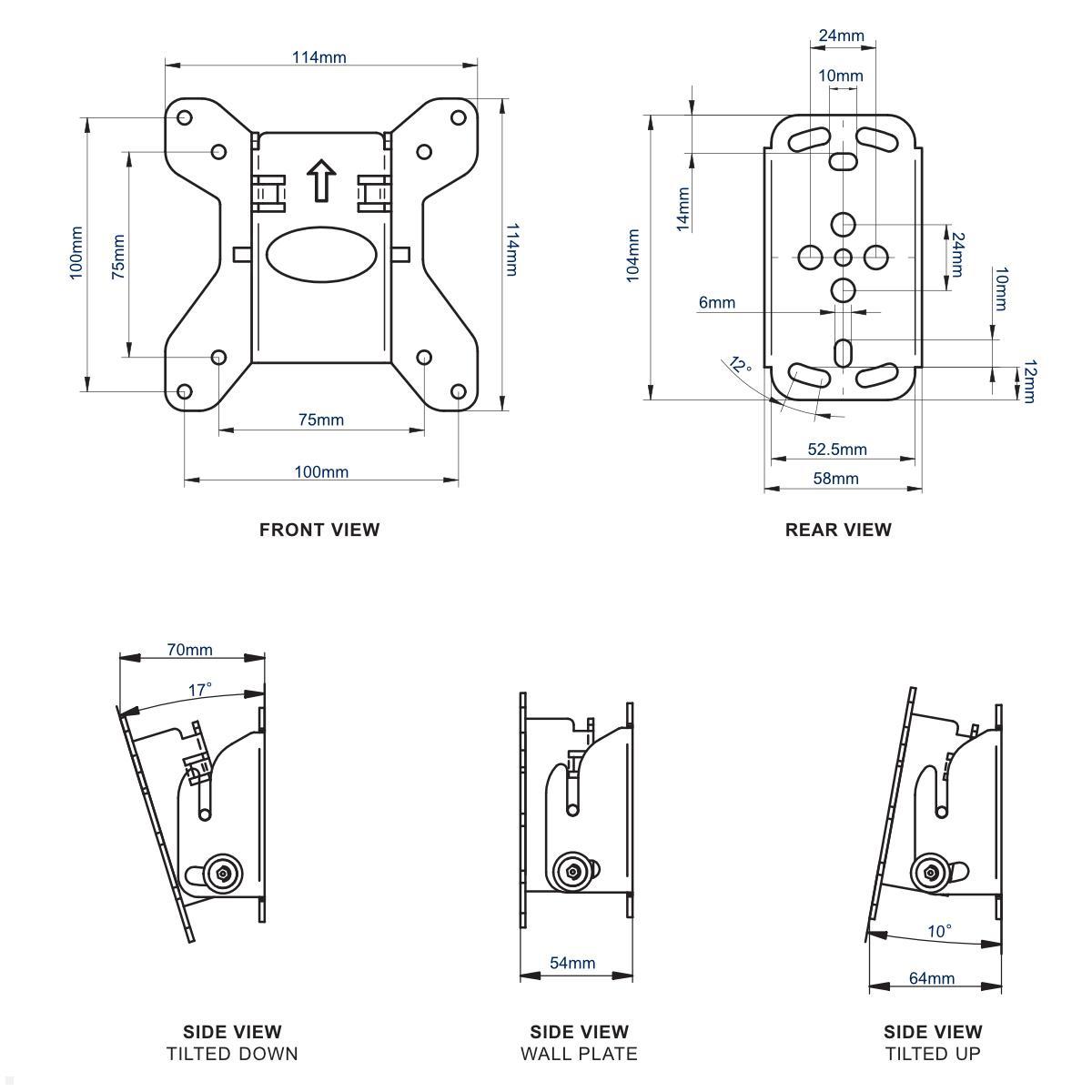

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 20 kg |
| Tilt: | +17°/-10˚ |
| Screen size: | 19" - 28" |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 279 x 246 x 165 |
| Scope of delivery: | 1x B-Tech BT7511/B + installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | B-Tech Pro-AV BVBA, Brixtonlaan 32, Zaventem 1930, Brussels, Belgium, Europe@btechavmounts.com |
| Warranty: | 10 years |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch |
| Mobility: | tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
